Ceco Dean Pump pH2111 - Pump Designation Code for Ph2140; Ph2140 Pump Sectional View; Ph2140 Parts List

14
PUMP WITH STANDARD SEAL CHAMBER PH2141
Part # Part Name
3 Impeller
5 Casing
5A Casing Drain Plug
5D Casing Capscrew*
7 Cradle Spacer
9 Bearing Housing Foot
10 Shaft Sleeve*
10K Sleeve Key
13 Seal Chamber Gland
14 Gland Stud
15 Gland Nut
17 Lantern Ring*
22 Casing Back Cover
22A Back Cover to Cradle Capscrew*
25 Radial Bearing*
25A Thrust Bearing*
26 Bearing Housing
27 Seal Ring*
28 Bearing End Cover*
28A Bearing End Cover Capscrew*
28B End Cover Adjusting Screw*
28C Adjusting Screw Locking Nut*
29 Pump Shaft
31 Bearing Lock Nut*
31A Bearing Lock Washer*
56† Casing Foot
75B Large Tapered Retaining Ring*
76 Labyrinth Seal – Front*
76A Labyrinth Seal – Rear*
77 Casing Gasket
77A Impeller Gasket*
77B End Cover Gasket*
80 Vent*
83 Motor Support (C Face)
95A Mechanical Seal Stationary
95B Mechanical Seal Rotary
109 Bearing Housing Oil Cooler

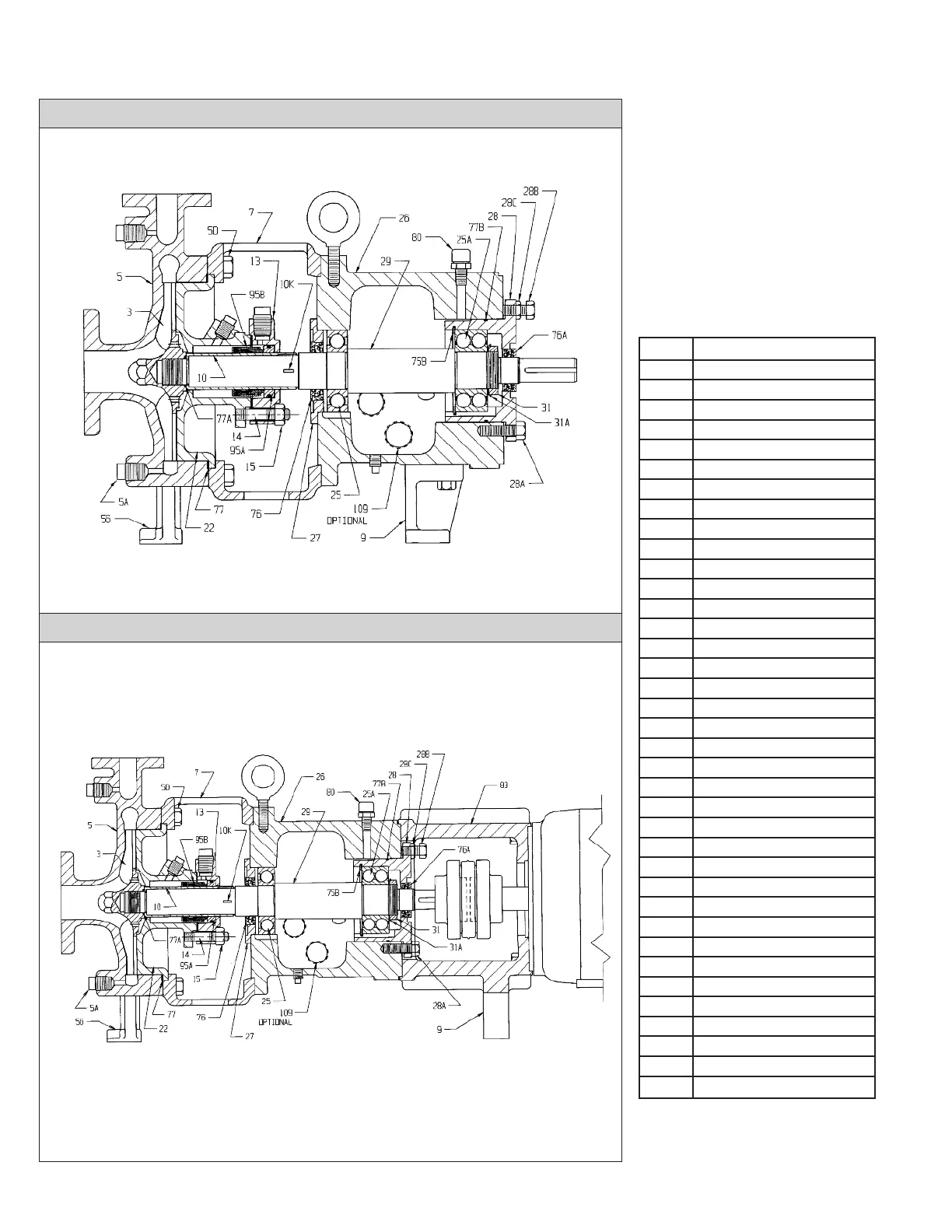

PUMP WITH STANDARD SEAL CHAMBER PH2141 AND OPTIONAL “C” FACE MOTOR SUPPORT
Section Drawing
#01916AB
* Denotes parts that are interchangeable in all
pH2140 series pumps.
† Feet are cast integral with the casing in
certain pump sizes and materials.
pH2141 Pump with Standard Seal
Chamber (no jacketing)
pH2142 Pump with Jacketed Seal Chamber
pH2144 Pump with Jacketed Seal Chamber
and Bearing Housing Oil Cooler
pH2146 Pump with Large Bore Seal Chamber
pH2147 Pump with Jacketed Seal Chamber
and Jacketed Casing
pH2148 Pump with Jacketed Seal Chamber,
Jacketed Casing, and Bearing
Housing Oil Cooler
PARTS LIST
PUMP DESIGNATION CODE FOR PH2140
Section Drawing
#01916AA
