PARTS LIST

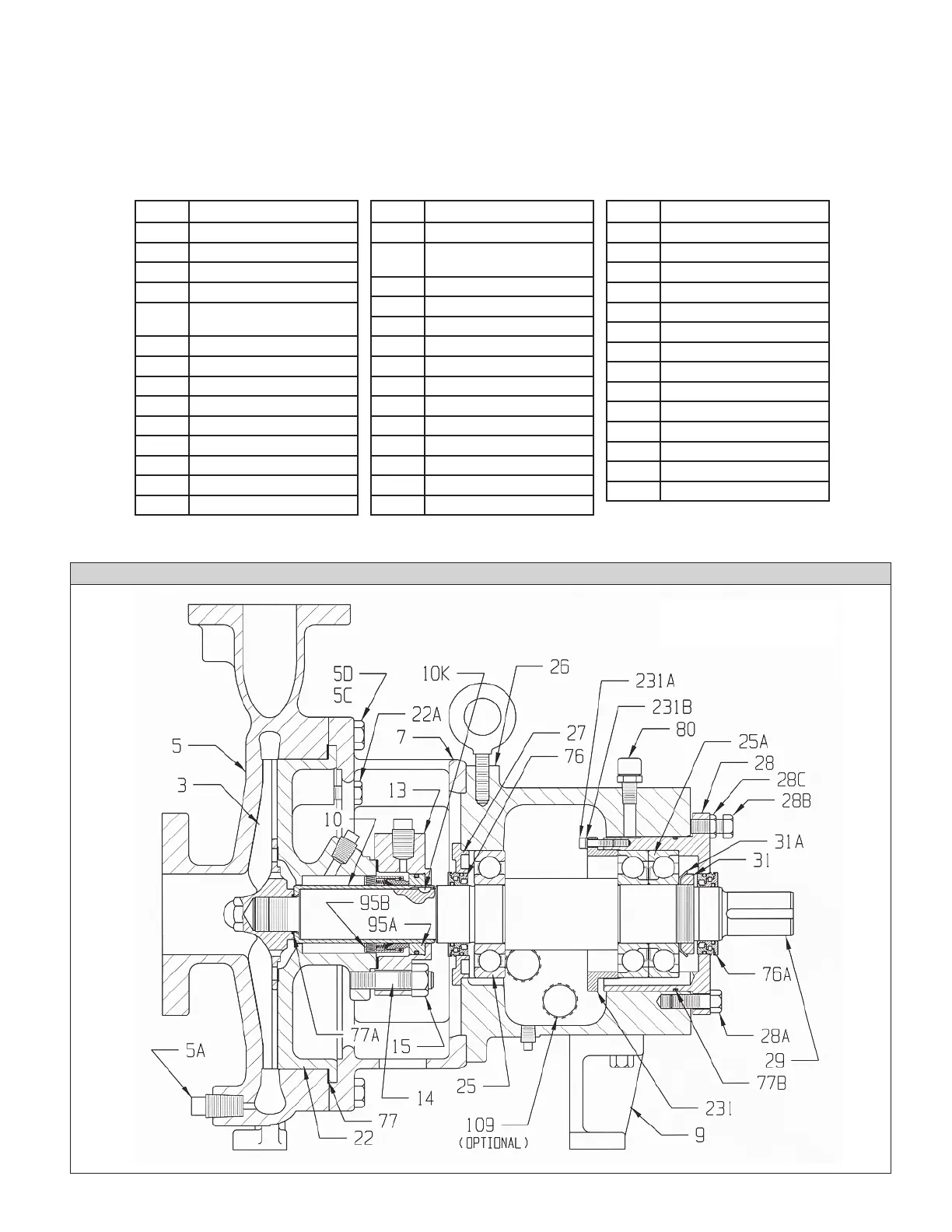

PUMP WITH STANDARD SEAL CHAMBER PH2171/PH3171
SECTION NO.
01946F
Part # Part Name
22 Casing Back Cover
22A Back Cover to Bearing
Housing Capscrew*
25 Radial Bearing*
25A Thrust Bearing*
26 Bearing Housing
27 Seal Ring*
28 Bearing End Cover*
28A Bearing End Cover Capscrew*
28B End Cover Adjusting Screw*
28C Adjusting Screw Locking Nut*
29 Pump Shaft
31 Bearing Lock Nut*
31A Bearing Lock Washer*
56† Casing Foot
Part # Part Name
3 Impeller
5 Casing
5A Casing Drain Plug
5C Casing Nut (pH3170 only)
5D Casing Capscrew – pH2170
Casing Stud – pH3170
7 Cradle Spacer
7G Spacer to Brg. Hsg. Capscrew
9 Bearing Housing Foot
10 Shaft Sleeve*
10K Sleeve Key
13 Seal Chamber Gland
14 Gland Stud
15 Gland Nut
17 Lantern Ring*
* Denotes parts that are interchangeable in all pH2170/pH3170 series pumps.
† Feet are cast integral with the casing in certain pump sizes and materials.
pH2171/pH3171 Pump with Standard Seal Chamber (no jacketing)
pH2172/pH3172 Pump with Jacketed Seal Chamber
pH2174/pH3174 Pump with Jacketed Seal Chamber and Bearing
Housing Oil Cooler
PUMP DESIGNATION CODE FOR PH2170/pH3170
Part # Part Name
56A Casing Foot Capscrew
56B Casing Foot Dowel
76 Labyrinth Seal – Front*
76A Labyrinth Seal – Rear*
77 Casing Gasket
77A Impeller Gasket*
77B End Cover Gasket*
80 Vent*
95A Mechanical Seal Stationary
95B Mechanical Seal Rotary
109 Bearing Housing Oil Cooler
231 Bearing Lock Ring*
231A Bearing Lock Ring Screw*
231B Bearing Lock Ring Washer*
pH2176/pH3176 Pump with Large Bore Seal Chamber
pH2177/pH3177 Pump with Jacketed Seal Chamber and Jacketed Casing
pH2178/pH3178 Pump with Jacketed Seal Chamber, Jacketed Casing,
and Bearing Housing Oil Cooler
