4.2. Lights connection
4.2.1. Power supply

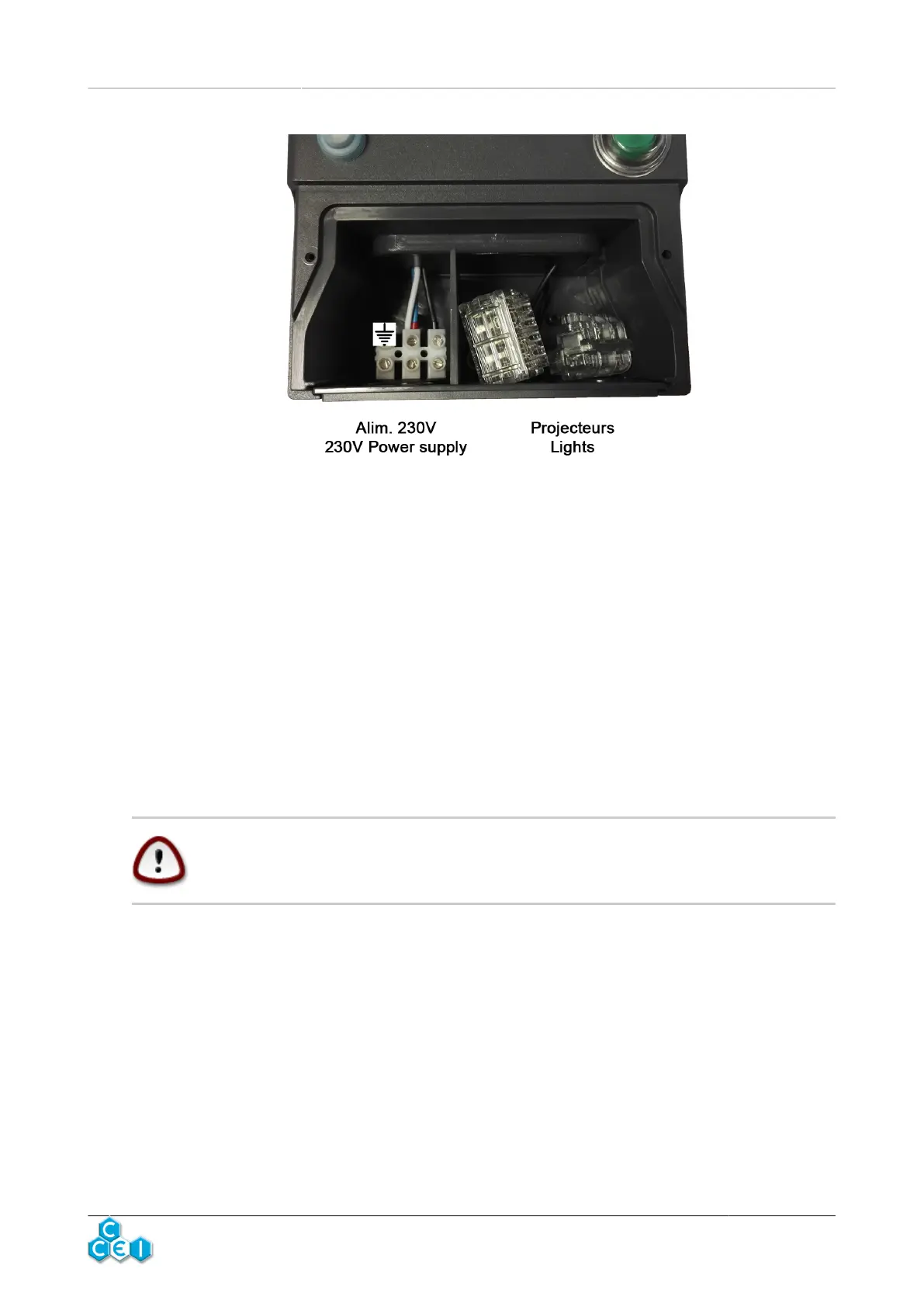

The connection has to be made on two connection terminals and on the ground terminal. The
A100RC+ must be powered in 230V 50Hz single-phase and protected by a 30mA residual current
device with an appropriate intensity. A short circuit protection (max 16A) must althrough be in-
stalled on the power line of the control box. The cable section used for the power supply must be
choosen according to the cable length and the number of connected lights on the A100RC+ .
4.2.2. Lights supply
The connection has to be made on a terminal 2 points type "domino".
The total power of the connected lights must never exceed 100W.
