For the purpose of polar alignment, there are two directions in which the
mount can be adjusted; vertically, which is called altitude and horizontally,
which is called azimuth. There are several ways to align on the celestial pole,
many of which are discussed later in this manual. This section simply covers
the correct movement of the mount during the polar alignment process. To
adjust the mount in altitude (i.e., raise or lower the angle of the polar axis), turn
the altitude adjustment screw:
• Turning the knob clockwise increases the angle at which the polar axis is
pointing
• Turning the handle counterclockwise lowers the angle at which the polar
axis is pointing.
The latitude adjustment on the CG-5 mount has a range of 40°, starting at 20°
going up to 60°.
For rough adjustments in azimuth, simply pick up the telescope and tripod and
move it until the R.A. axis is roughly pointed towards north. For fine adjust-
ments in azimuth:
1. Turn the azimuth adjustment screws located on either side of the azimuth
housing. While standing behind the telescope, the knobs are on the front
of the mount.
• Turning the right adjustment knob clockwise moves the mount toward the
right.
• Turning the left adjustment knob clockwise moves the mount to the left.
Both screws push off of the peg on the tripod head, which means you may
have to loosen one screw while tightening the other. The screw that holds the
equatorial mount to the tripod may have to be loosened slightly.
Adjusting the Mount
in Altitude
Adjusting the Mount
in Azimuth

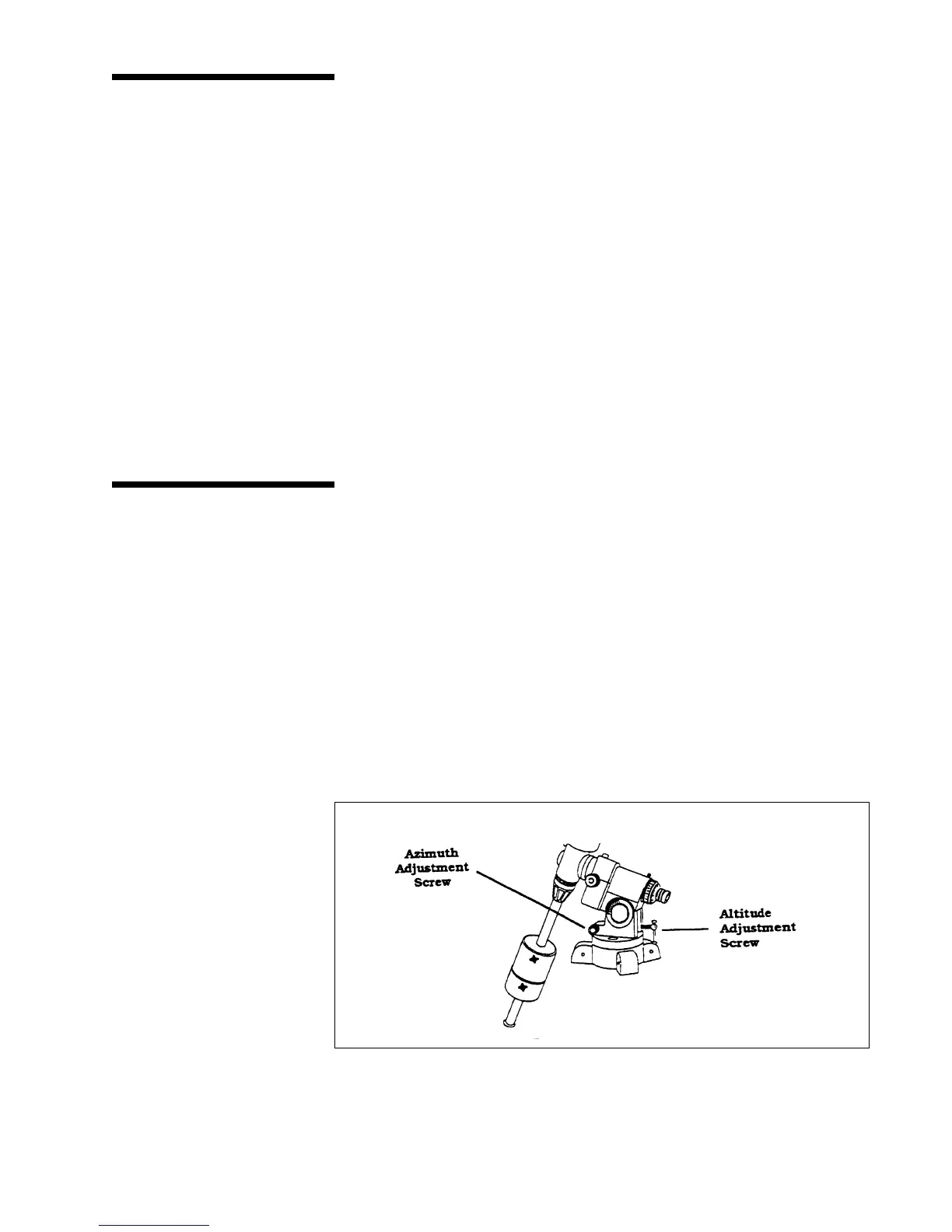

Figure 2-11
