Celestron SS80 User Manual

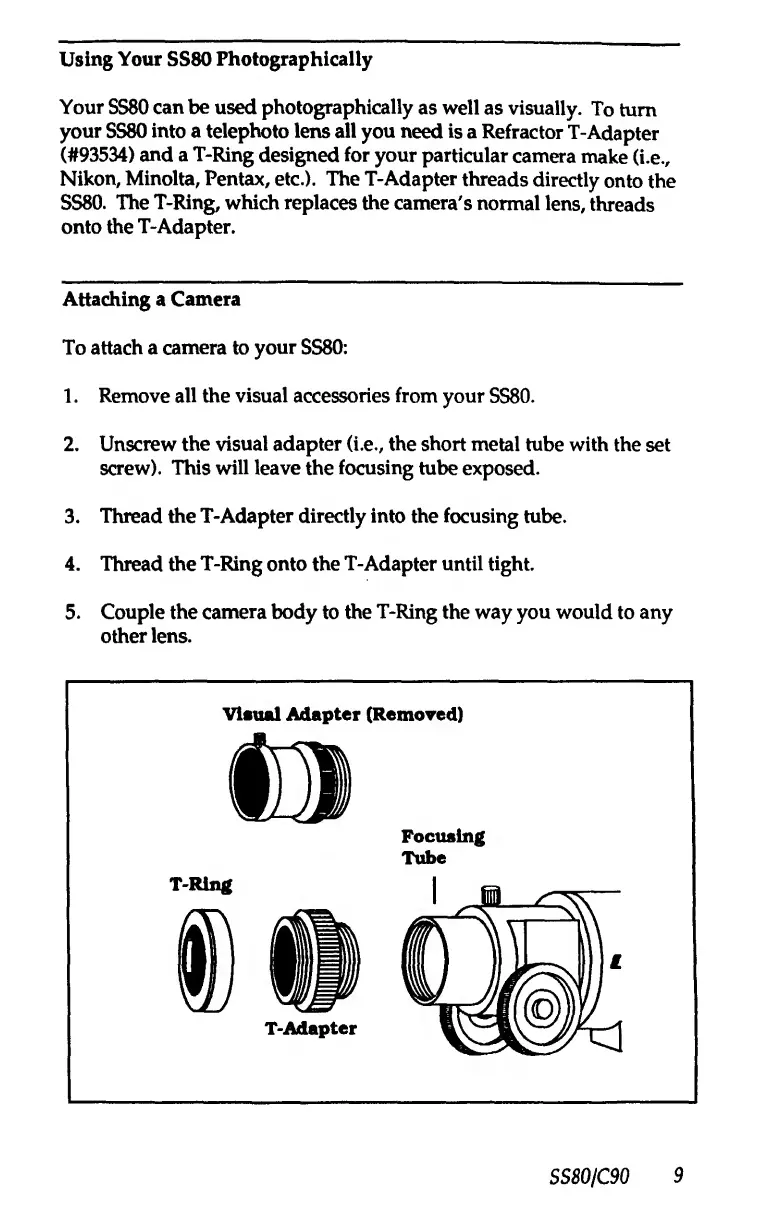

Using Your SS80 Photographically
Your SS80 can be used photographically as well as visually. To turn
your SS80 into a telephoto lens all you need is a Refractor T-Adapter
(#93534) and a T-Ring designed for your particular camera make (i.e.,
Nikon, Minolta, Pentax, etc.). The T-Adapter threads directly onto the
SS80. The T-Ring, which replaces the camera's normal lens, threads
onto the T-Adapter.
Attaching a Camera
To attach a camera to your SS80:
1. Remove all the visual accessories from your SS80.
2. Unscrew the visual adapter (i.e., the short metal tube with the set
screw). This will leave the focusing tube exposed.
3. Thread the T-Adapter directly into the focusing tube.
4. Thread the T-Ring onto the T-Adapter until tight.
5. Couple the camera body to the T-Ring the way you would to any
other lens.
^•ual Adapter (Removed)
Focusing
Tube
SS80IC90 9

Celestron SS80 Specifications

General

Brand	Celestron
Model	SS80
Category	Telescope
Language	English
