OPTIONAL EXTERIOR GRILLE
The exterior grille is required on all installations where the exhaust side of the unit is exposed to the outdoors (i.e., rain and other
adverse weather conditions).

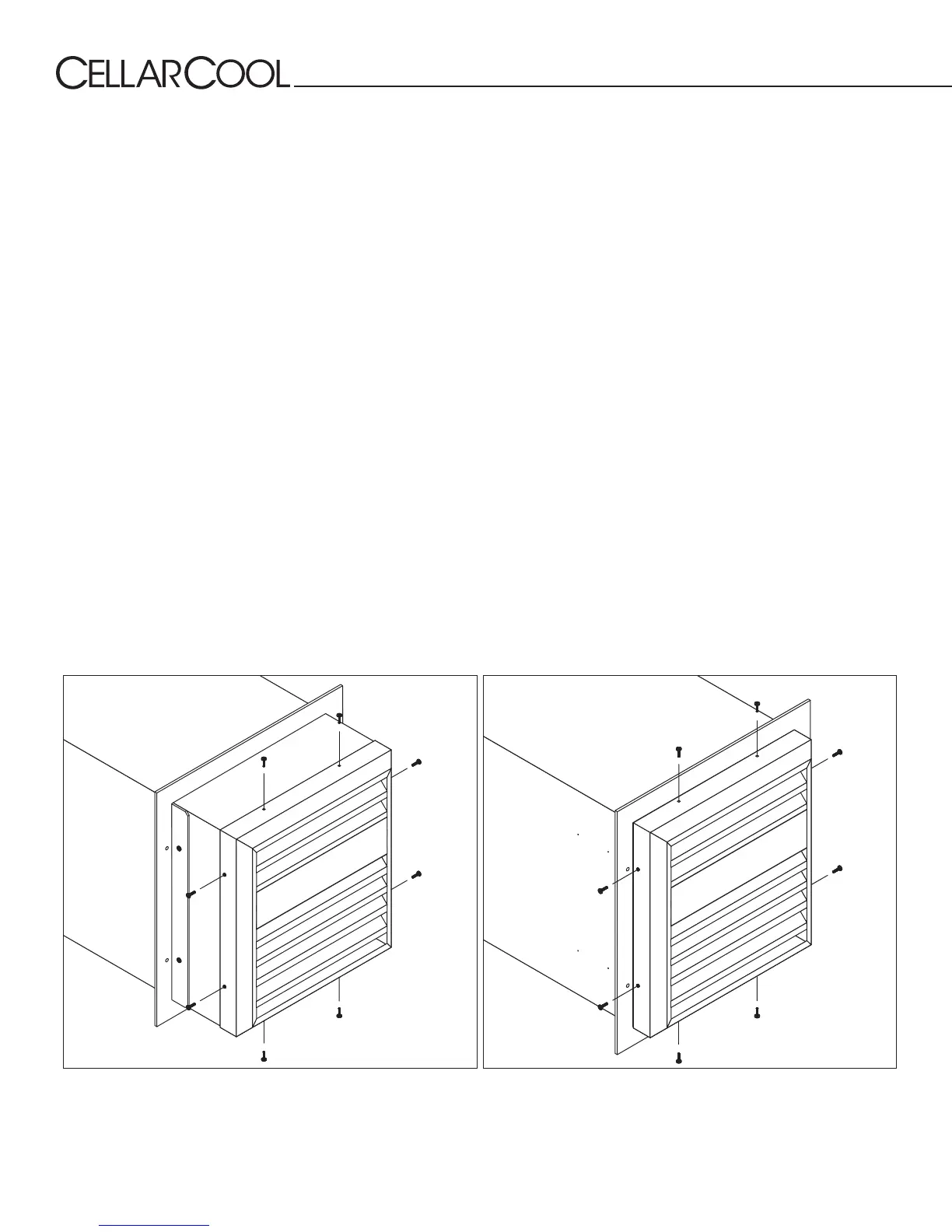

Non-Flush Installation
Install the unit according to the standard through-the-wall procedure. After the unit is installed, place the exterior grille over the
exhaust side lter grille and line up the screw holes on the top, bottom, and sides. Use the eight (8) supplied self-tapping screws
to fasten the grille to the unit.
Flush Installation
This installation is slightly dierent because you are utilizing the same holes for both the mounting bracket and exterior grille.
1. Slide the mounting bracket onto the unit followed by the exterior grille, bring the two pieces together by sliding the exterior
grille over the mounting bracket side anges.
2. Align the two top screw holes of the exterior grill with the top screw locations on the unit, use the supplied self-tapping
screws to fasten the grille.
3. Repeat Step 2 on the bottom of the unit.
4. Use the supplied self-tapping screws to fasten the grille and bracket to the unit ensuring the bracket stays perpendicular/
square.
5. Continue through-the-wall installation.
You are required to use the ½” self-tapping screws provided. Do not drill holes into unit.
Non-Flush Installation
