CONDENSATION DRAIN LINE
The condensation drain line tube is used to drain excess condensation from the unit to a proper discharge location. It is
important that the drain line tube be properly connected in order to prevent leakage and other problems associated with excess
condensation.
Failure to use the condensation drain line tube will void the warranty on the unit.
All units come with a drain line for additional removal of
excessive condensate. It is mandatory to install the drain line
with a “tee” tting. During operation, the cooling unit will
strip excess water from the air in order to maintain the proper
level of humidity within the cellar. However, in extreme
humidity, additional condensate will be removed. The
drain line will prevent overow and leaking by allowing for
discharge of the additional condensate.
To prevent mold from growing, allow the drain line to
hang above the water line.
WRONG: Drain line is under water.

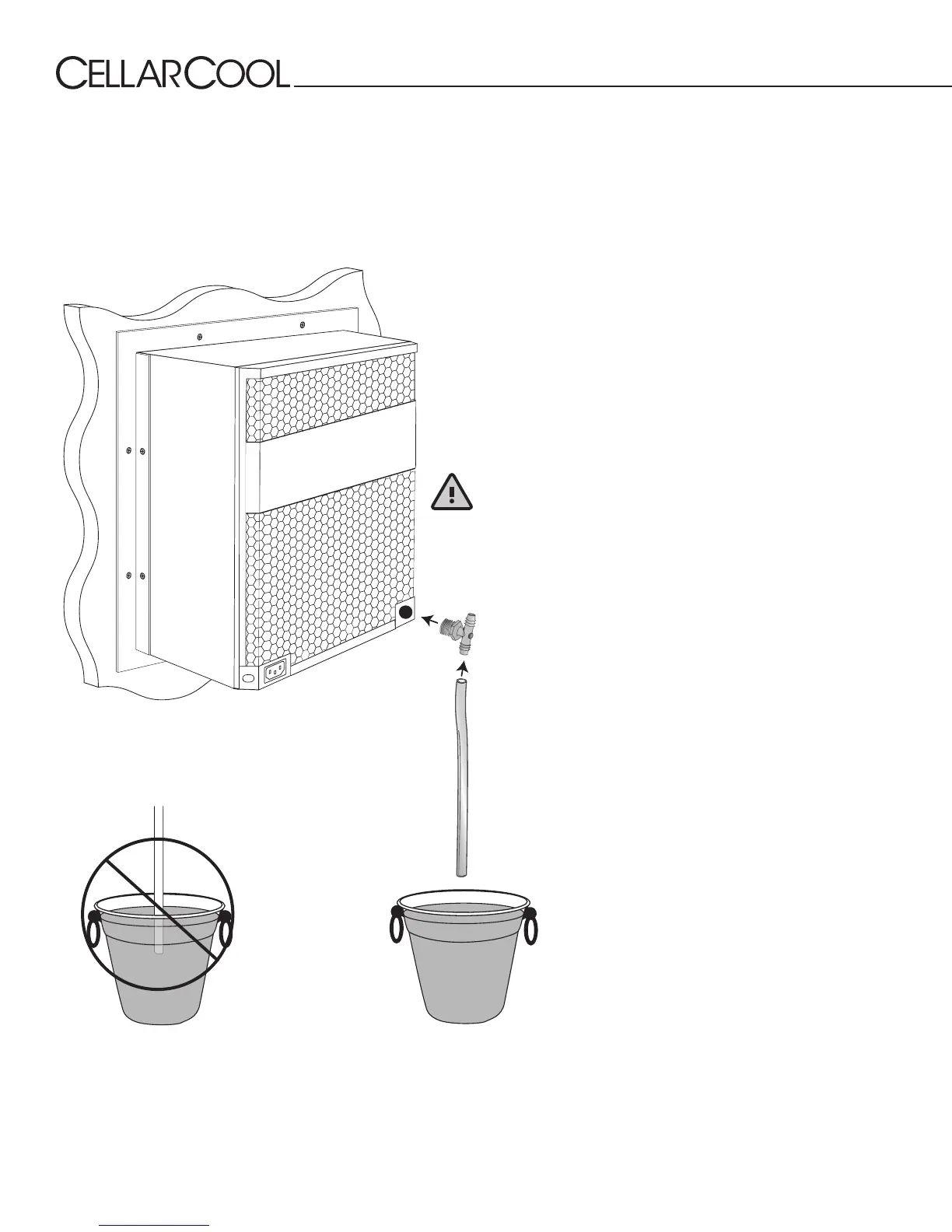

Ultimate Drain Line Installation
1. Wrap tee with Teon tape one or
two turns clockwise.
2. Next, thread the barbed tee into
the drain port and rotate until tight.
Make sure the barbed parts of the tee
are vertical.
3. Next, attach the piece of ½" ID clear
plastic tubing to the lower barb of
the tee.
4. Every six weeks, disconnect the
drain line from the tee. Remove the
tee from the rear drain port and clean
it. Then use the supplied drain line
brush to clean the interior drain line.
Use the drain line access door to drop
a pan tab into the drip tray to prevent
the buildup of microbial growth.
Black ½" tee
Drain line
