Ultimate Series
INSTALLING THE UNIT
Slide the unit from the outside wall into your wine cellar with the outer ange ush with the wall. Secure the ange to the wall
using the pre-drilled holes. The screws should penetrate the studs as well as the upper and lower supports to provide adequate
support for the CellarCool unit (see illustration). Seal all cracks and gaps around the CellarCool Ultimate unit with an air-tight seal-
ant or caulking to prevent air leakage.
Note: If you use decorative moulding, it should be attached to the walls and never to the
cooling unit itself. The moulding itself should be removable in case the unit needs servicing.

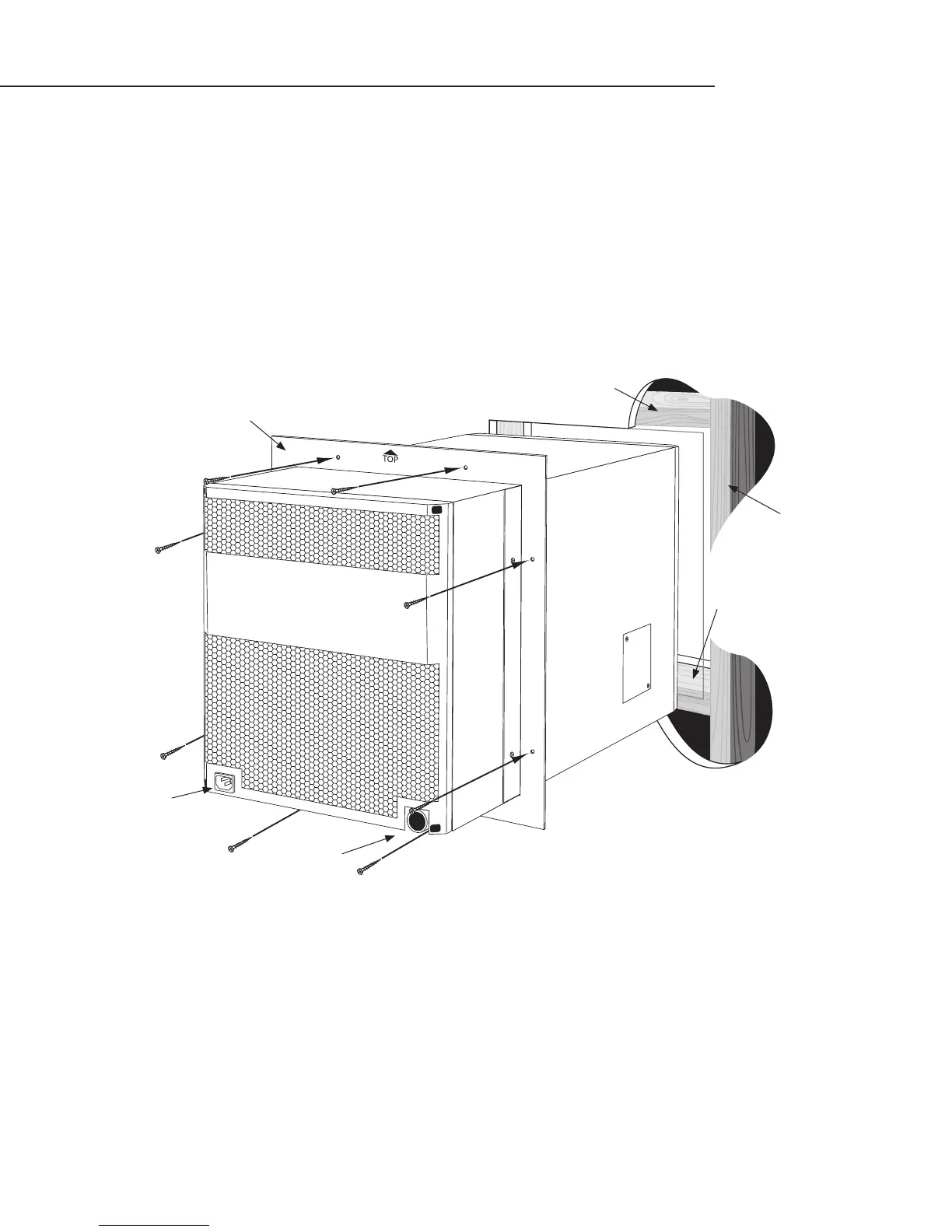

Wall Stud
2x4 Upper Support
Mounting Flange
Drain Port
Rear Power
2x4 Lower Support
Back of Unit
