REV. 01
27 / 28

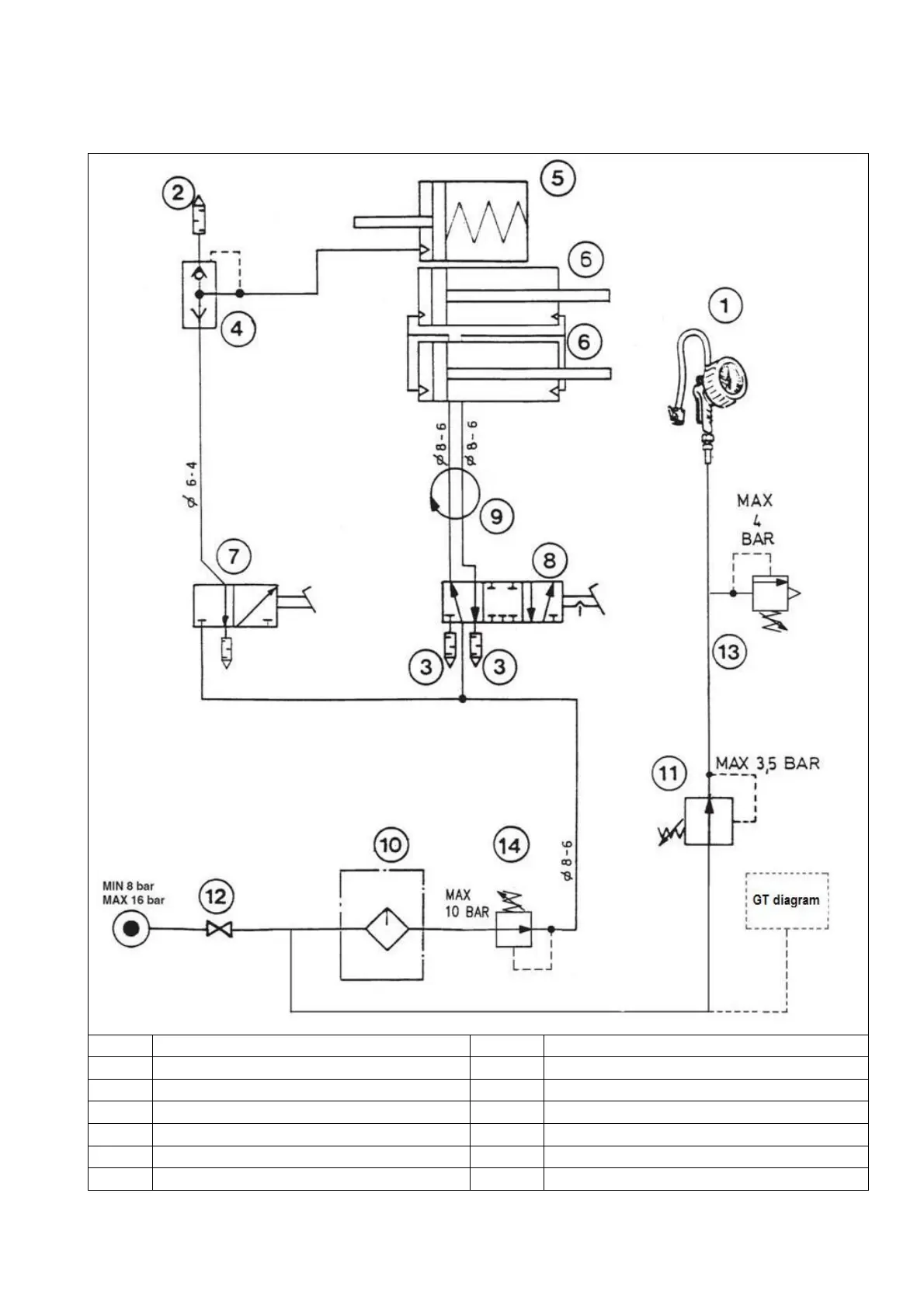

STANDARD PNEUMATIC SYSTEM DIAGRAM
1 Inflating gauge 8 Turntable valve
2 Silencer 1/4” 9 Rotation union
3 Silencer 1/8” 10 Lubricator
4 Quick relief valve 11 Pressure regulator
5 Bead breaker cylinder 12 Air intake cock
6 Turntable cylinder 13 Safety valve
7 Bead breaking valve 14 Pressure regulator
