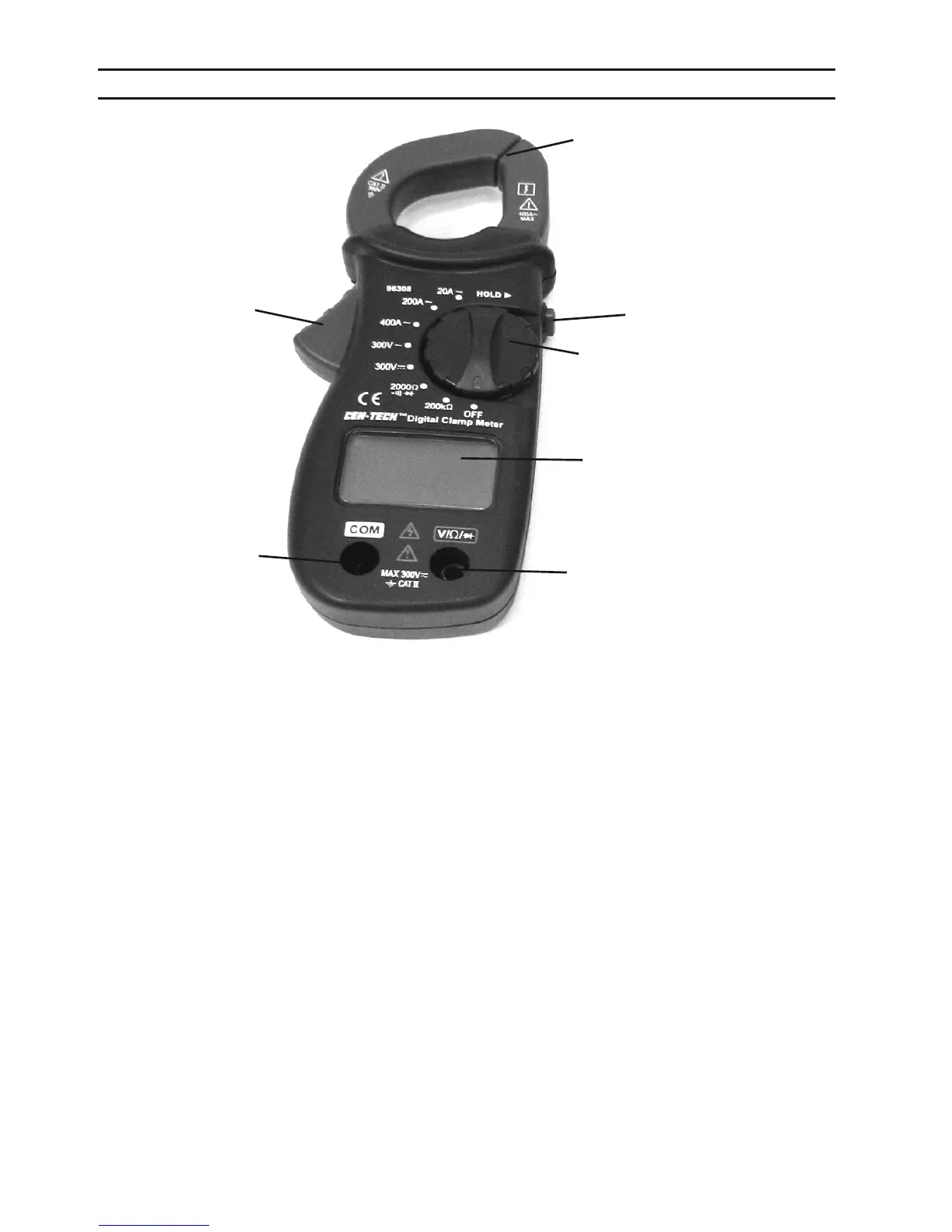

COMPONENTS OF THE METER
1.
Clamp Jaws
Trigger
LCD Screen
COM Jack
RED Jack
Rotary Selector Switch
Hold Button
Clamp Jaw. Used to measure AC Amperage.
2. Trigger. Used to open and close the Clamp Jaws for AC Amperage measurement.
3. Display. LCD Screen with maximum reading value of 1999.
4. COM Jack. The Common jack used with the Black (negative) Test Lead.
5. Red Jack. Used with the Red (positive) Test Lead.
6. Rotary Switch. Used to select desired function and range. Also used to turn meter
ON and OFF.
7. Hold button. Pressing the Hold button will hold the current reading on the LCD
screen. The word HOLD will also appear on the screen. Pressing the Hold button
again will release the reading and the word HOLD will disappear from the screen.
