OPERATING INSTRUCTIONS
Power
Switch (4)
Cigarette
Lighter
Adapter
(1)
Air
Nozzle
(57)
Pressure
Meter
(49)

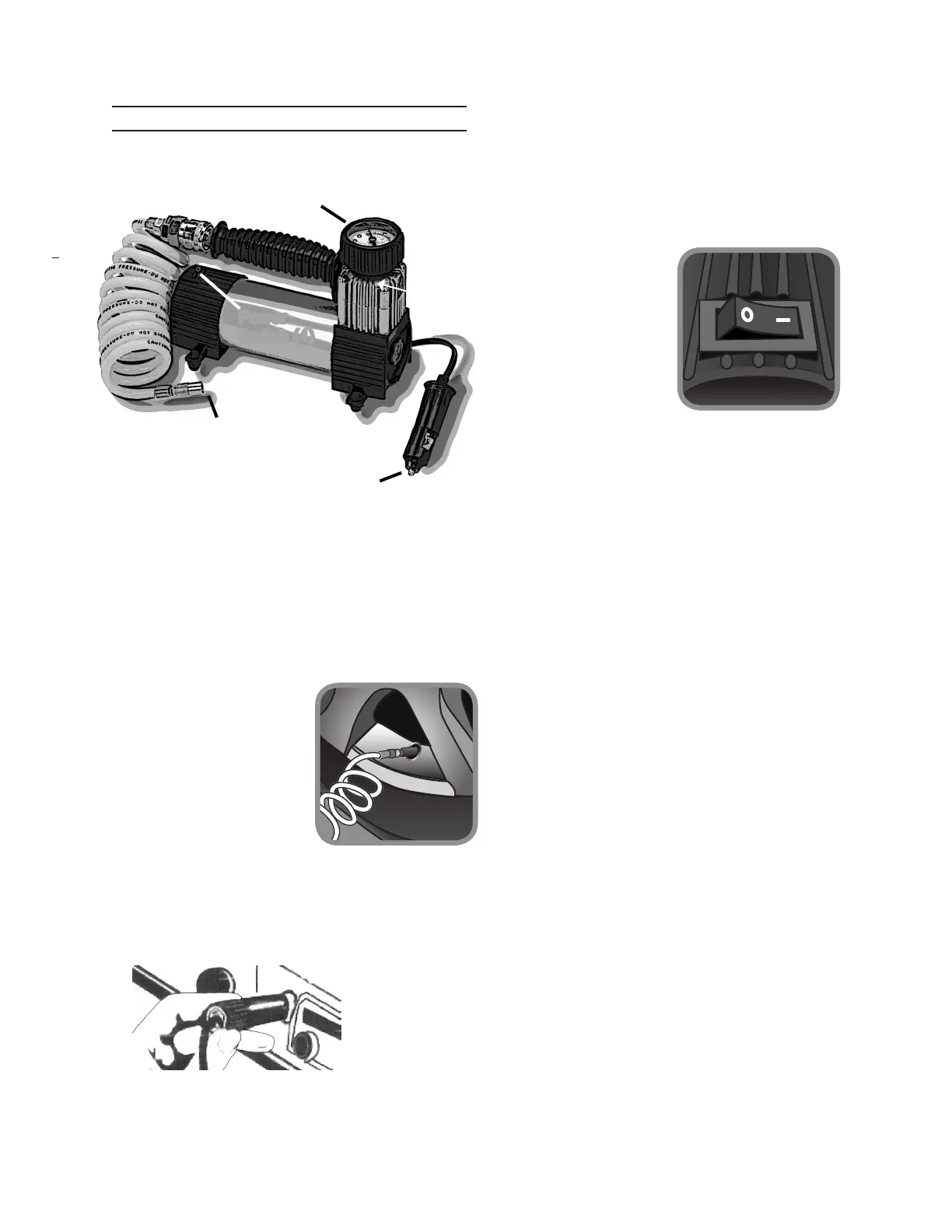

FIGURE A
To Inate Automotive Tires:
Place the Air Compressor on a at, 1.
level, dry surface.
2. Remove the valve cap from the
valve stem of a
tire. Thread on
the Air Nozzle
(57) to the tire
stem. (See
Figure B.)
Plug the Cigarette Lighter Adapter 3.
(1) into the vehicle’s cigarette lighter
socket. (See Figure C.)
FIGURE C
CIGARETTE LIGHTER ADAPTER (1)
Caution: Always start the vehicle’s
engine prior to operating the Air
Compressor so as to not deplete
the vehicle’s battery.
4. Turn the Air Compressor’s Power
Switch (4) to
its “ON” posi-
tion. (See
Figure D.)
The Pressure Meter (49) is located 5.
on top of the Air Compressor. The
maximum air pressure this unit will
produce is 100 PSI. Do not inate
the air pressure beyond the tire
manufacturer’s ination rating.
To obtain an accurate air pressure
reading, turn off the Air Compressor
when the desired pressure is indi-
cated on the gauge. (See Figure
A.)
When nished, turn the Power 6.
Switch (4) to its “OFF” position. Re-
mover the Air Nozzle (57) from the
vehicle’s tire valve stem. Replace
the valve cap. Then, disconnect
the Cigarette Lighter Adapter (1)
from the vehicle’s cigarette lighter
socket.
FIGURE B
OFF ON
FIGURE D
