Centurion 04791-0 - Section 1 - General Information; Generator Identification

4 Generac
®
Power Systems, Inc.

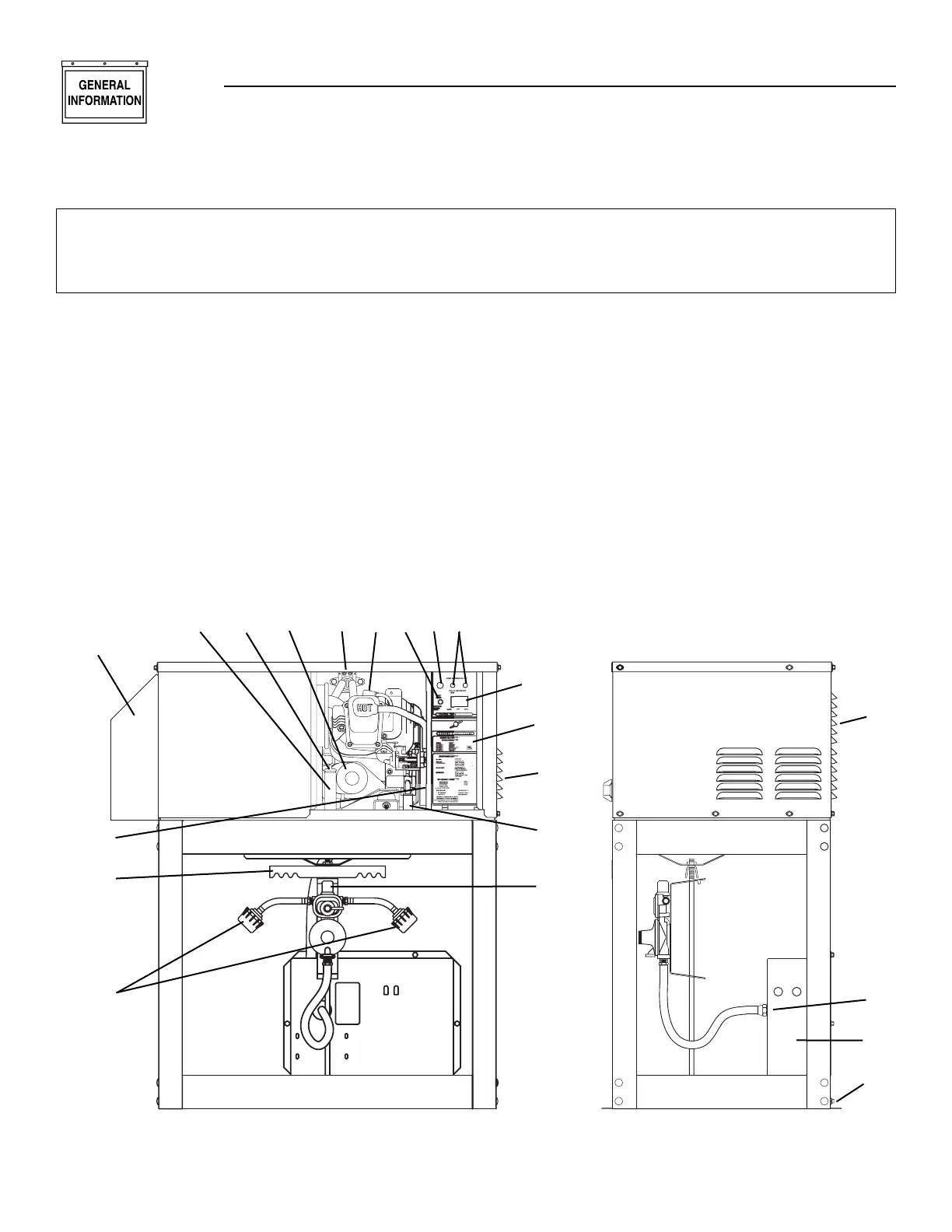

1. Generator Air Intake
2. Engine AUTO/OFF/MANUAL Switch
3. Fuse
4. LED Indicator
5. Demand Regulator (Inside Compartment)
6. Change-over Regulator
7. Circuit Breakers
8. Starter Contactor
9. Fuel Inlet
10. Tank Hook-ups.
11. Battery (In Compartment)
12. Oil Filter
13. Oil Drain (From Underside)
14. Oil Dipstick
15. Air Filter (Behind Access Panel)
16. Oil Fill
17. Spark Plug
18. Tank Hold Down Brace
19. Exhaust Hood
(Tailpipe and Spark Arrestor Inside)
20. Ground Lug
21. Data Decal (Located inside compartment)
Section 1 – General Information
CENTURION 3500 Home Standby Generator
Please record the following information from the generator DATA DECAL or information decal.
1. Model Number ____________________ 2. Serial Number __________________
3. kW Rating__________________________ 4. Rated Voltage __________________
0
72
3
4
7
0.8L/0.84
QT
R
AT
O
R P
O
WE
R
P
US
H T
O
RE
S
E
T
GENERAT
OR
P
O
WE
R
F
USE
7
.5A
1.1 GENERATOR IDENTIFICATION
Model: 004700-0 — QUIETPACT 40G
21
18
10
19
13
14, 16
12
8
17
4
3
7
2
15
1
9
6
5
1
11
20
