Centurion Auto-Mate - Page 23

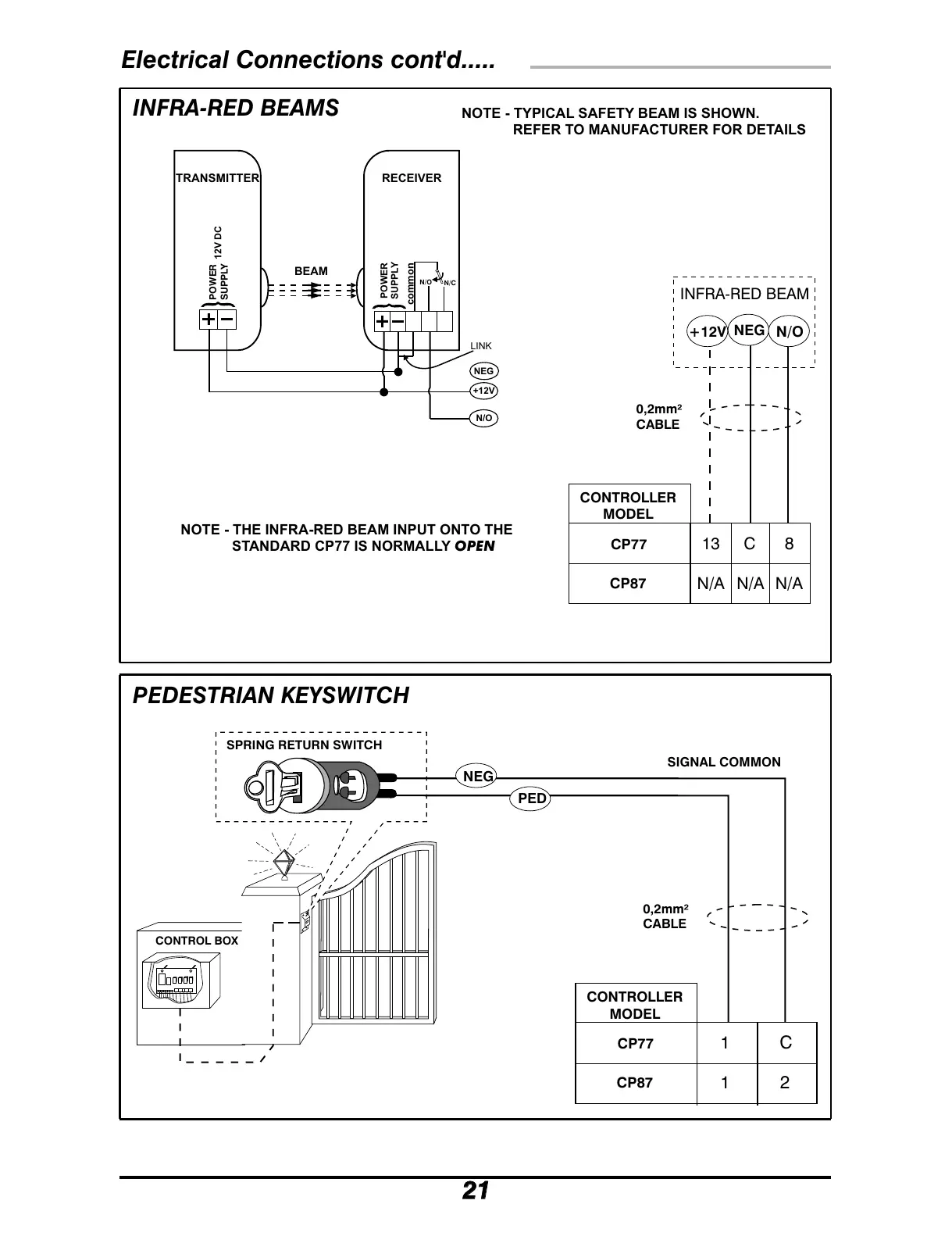

Electrical Connections cont'd.....
CONTROL BOX
0,2mm²
CABLE
0,2mm²
CABLE
SIGNAL COMMON
CONTROLLER
MODEL
CONTROLLER
MODEL
INFRA-RED BEAM
CP77
CP77
13
1 C
1
2
N/A N/A N/A
C 8
CP87
CP87
+12V
NEG
N/O
INFRA-RED BEAMS
PEDESTRIAN KEYSWITCH
2121
SPRING RETURN SWITCH
NEG
PED
BEAM
N/O
+12V
LINK
NOTE - TYPICAL SAFETY BEAM IS SHOWN.
REFER TO MANUFACTURER FOR DETAILS
NOTE - THE INFRA-RED BEAM INPUT ONTO THE
STANDARD CP77 IS NORMALLY OPEN
12V DC
POWER
SUPPLY
POWER
SUPPLY
N/C
N/O
NEG
TRANSMITTER RECEIVER
common
