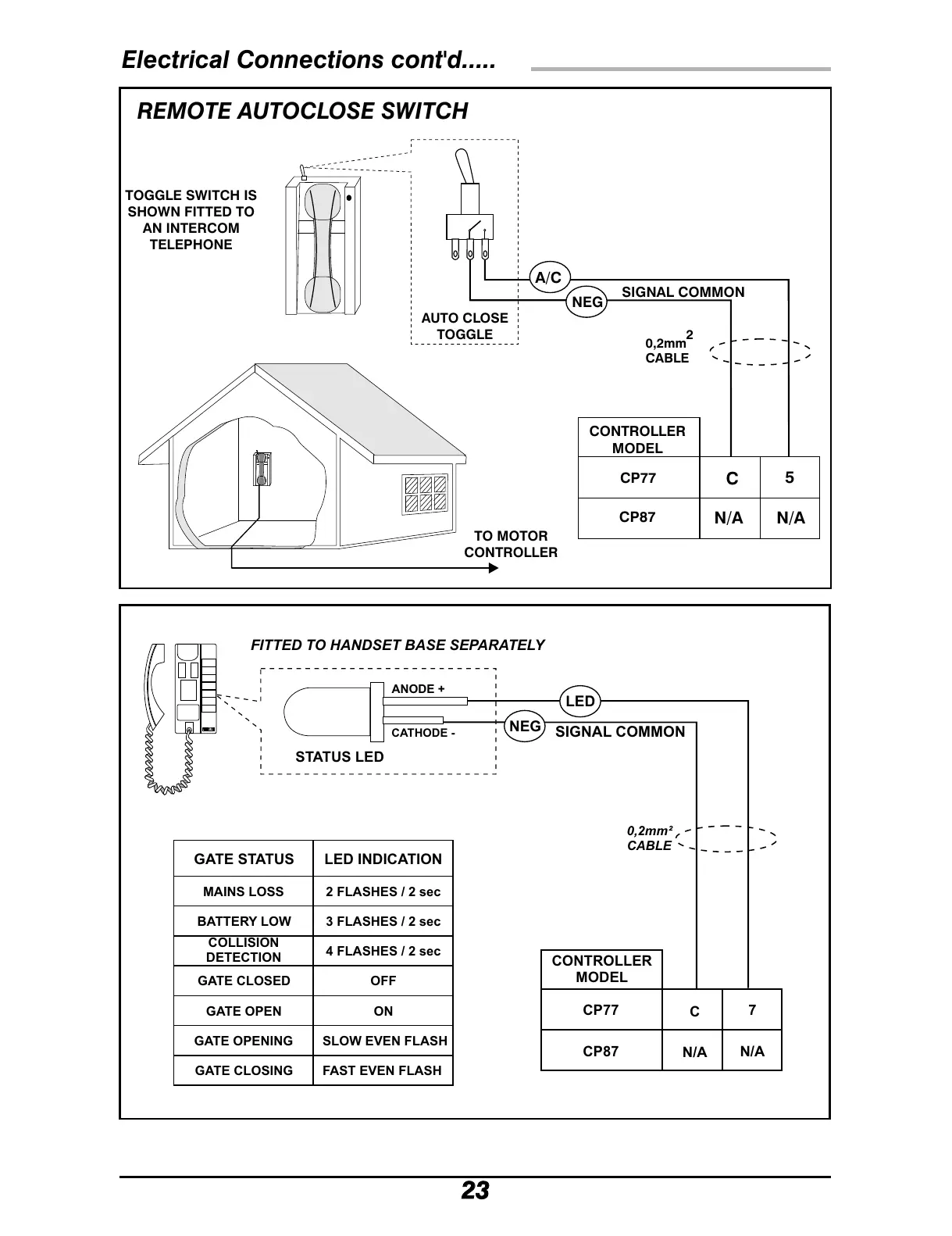

Electrical Connections cont'd.....
AUTO CLOSE
TOGGLE
TO MOTOR
CONTROLLER
SIGNAL COMMON
TOGGLE SWITCH IS
SHOWN FITTED TO
AN INTERCOM
TELEPHONE
0,2mm
CABLE
2
CONTROLLER
MODEL
CP77
N/A N/A
5
C
CP87
REMOTE AUTOCLOSE SWITCH
2323
A/C
NEG
SIGNAL COMMON
0,2mm²
CABLE
CONTROLLER
MODEL
CP77
CP87
7
N/A
C
N/A
NEG
LED
FITTED TO HANDSET BASE SEPARATELY
STATUS LED
ANODE +
CATHODE -
GATE STATUS LED INDICATION
BATTERY LOW 3 FLASHES / 2 sec
GATE CLOSED OFF
GATE OPENING SLOW EVEN FLASH
MAINS LOSS 2 FLASHES / 2 sec
COLLISION
DETECTION
4 FLASHES / 2 sec
GATE OPEN ON
GATE CLOSING FAST EVEN FLASH
