CP77
CONTROLLER
CP87
CONTROLLER
MINMIN
MAXMAX
SETS SENSITIVITY
FOR BOTH OPENING
AND CLOSING
C

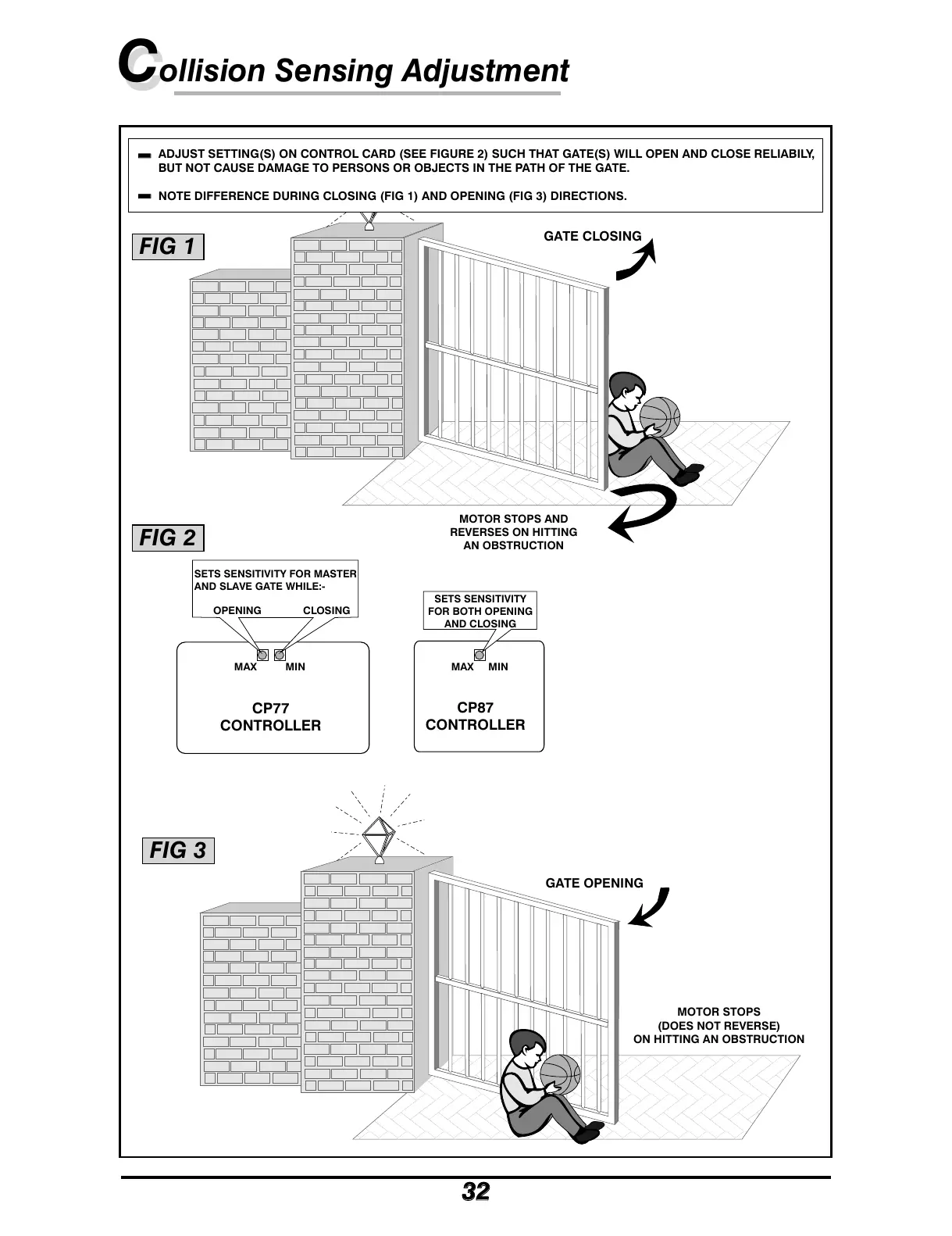

Collision Sensing Adjustment
3232
GATE CLOSING
GATE OPENING
MOTOR STOPS AND
REVERSES ON HITTING
AN OBSTRUCTION
MOTOR STOPS
(DOES NOT REVERSE)
ON HITTING AN OBSTRUCTION
OPENING CLOSING
SETS SENSITIVITY FOR MASTER
AND SLAVE GATE WHILE:-
--
--
ADJUST SETTING(S) ON CONTROL CARD (SEE FIGURE 2) SUCH THAT GATE(S) WILL OPEN AND CLOSE RELIABILY,
BUT NOT CAUSE DAMAGE TO PERSONS OR OBJECTS IN THE PATH OF THE GATE.
NOTE DIFFERENCE DURING CLOSING (FIG 1) AND OPENING (FIG 3) DIRECTIONS.
FIG 1
FIG 2
FIG 3
