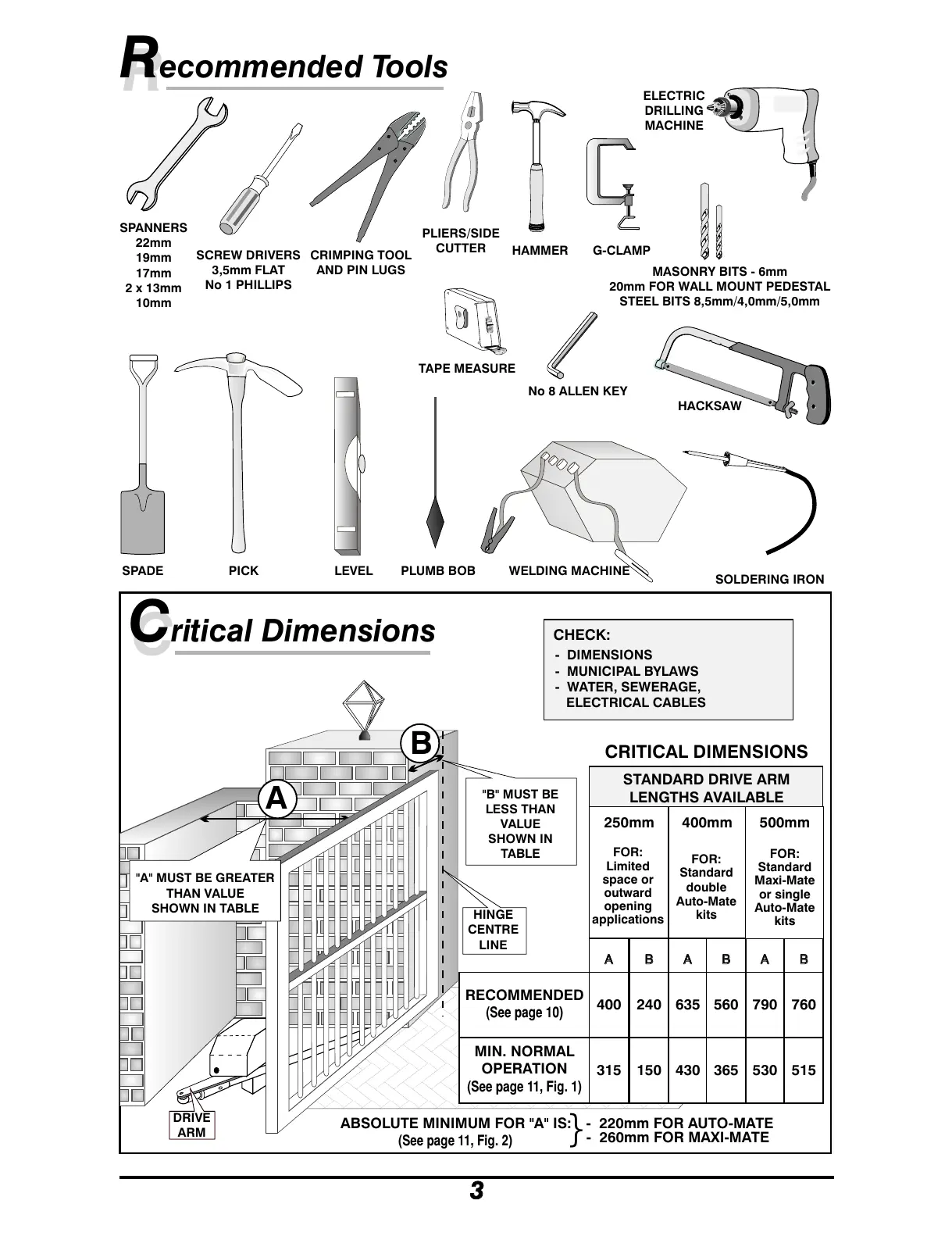

Centurion Auto-Mate - Recommended Tools; Critical Dimensions

R
C
Recommended Tools
Critical Dimensions
33
MASONRY BITS - 6mm
20mm FOR WALL MOUNT PEDESTAL
STEEL BITS 8,5mm/4,0mm/5,0mm
SPANNERS
22mm
19mm
17mm
2 x 13mm
10mm
SCREW DRIVERS
3,5mm FLAT
No 1 PHILLIPS
CRIMPING TOOL
AND PIN LUGS
PLIERS/SIDE
CUTTER
HAMMER
G-CLAMP
ELECTRIC
DRILLING
MACHINE
TAPE MEASURE
No 8 ALLEN KEY
HACKSAW
SOLDERING IRON
WELDING MACHINE
LEVEL
PICKSPADE
PLUMB BOB
CRITICAL DIMENSIONS
STANDARD DRIVE ARM
LENGTHS AVAILABLE
(See page 11, Fig. 2)
ABSOLUTE MINIMUM FOR "A" IS: - 220mm FOR AUTO-MATE
- 260mm FOR MAXI-MATE
250mm 400mm 500mm
FOR:
Standard
Maxi-Mate
or single
Auto-Mate
kits
FOR:
Standard
double
Auto-Mate
kits
FOR:
Limited
space or
outward
opening
applications
AA
400
315 150 430 365 530 515
240 635 560 790 760
AA AABB BB BB
RECOMMENDED
(See page 10)
MIN. NORMAL
OPERATION
(See page 11, Fig. 1)
B
"B" MUST BE
LESS THAN
VALUE
SHOWN IN
TABLE
DRIVE
ARM
HINGE
CENTRE
LINE
A
- DIMENSIONS
- MUNICIPAL BYLAWS
- WATER, SEWERAGE,
ELECTRICAL CABLES
CHECK:
}
"A" MUST BE GREATER
THAN VALUE
SHOWN IN TABLE
