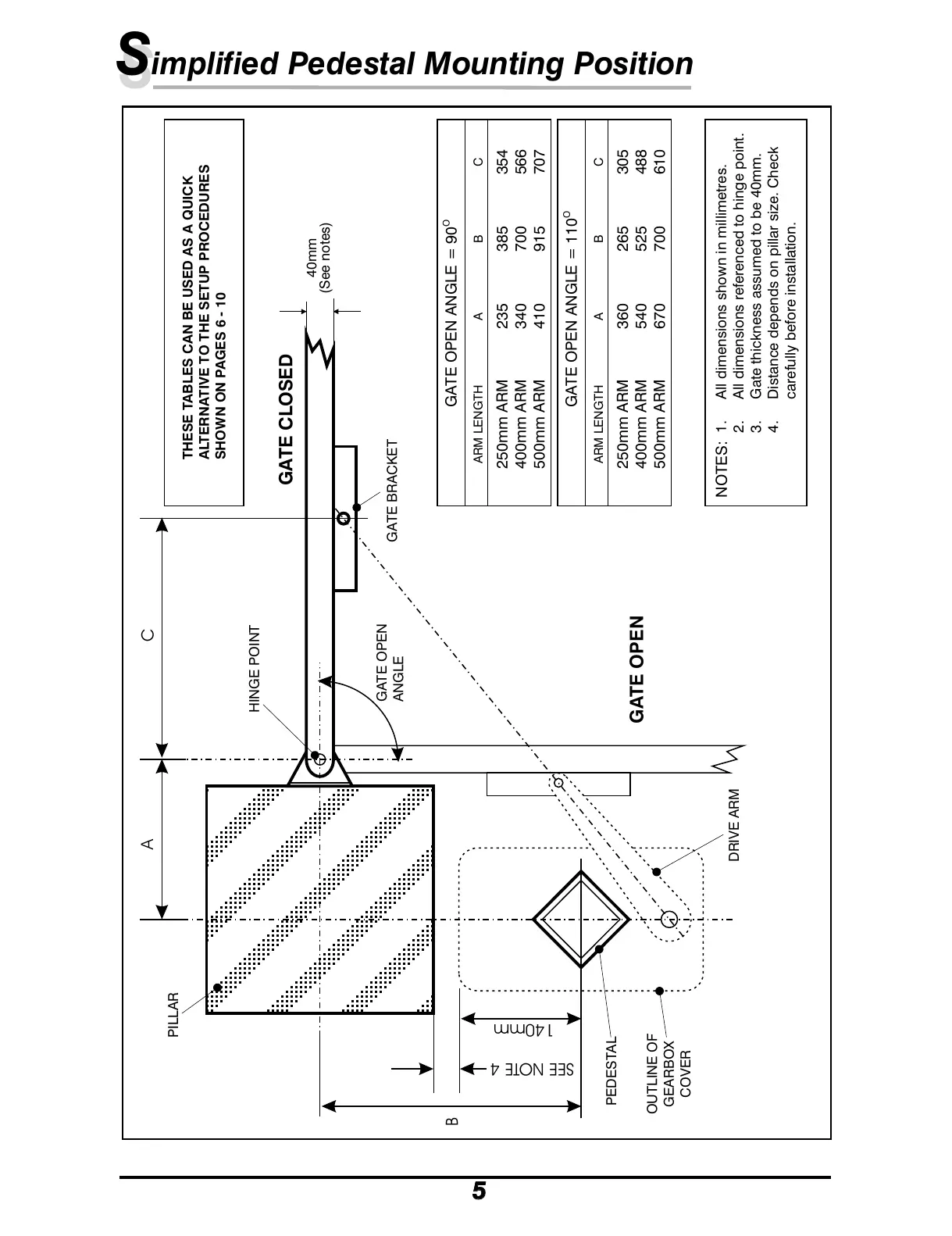

Centurion Auto-Mate - Simplified Pedestal Mounting Position

THESE TABLES CAN BE USED AS A QUICK
ALTERNATIVE TO THE SETUP PROCEDURES
SHOWN ON PAGES 6 - 10
A
B
140mm
SEE NOTE 4
C
HINGE POINT
GATE BRACKET
GATE CLOSED
GATE OPEN
40mm
(See notes)
PILLAR
PEDESTAL
DRIVE ARM
OUTLINE OF
GEARBOX
COVER
GATE OPEN
ANGLE
1. All dimensions shown in millimetres.
2. All dimensions referenced to hinge point.
3. Gate thickness assumed to be 40mm.
4. Distance depends on pillar size. Check
carefully before installation.
NOTES:
O
GATE OPEN ANGLE = 110
ARM LENGTH
250mm ARM
400mm ARM
500mm ARM
A
360
540
670
B
265
525
700
C
305 488 610
O
GATE OPEN ANGLE = 90
ARM LENGTH
250mm ARM
400mm ARM
500mm ARM
A
235
340
410
B
385
700
915
C
354 566 707
S
Simplified Pedestal Mounting Position
55
