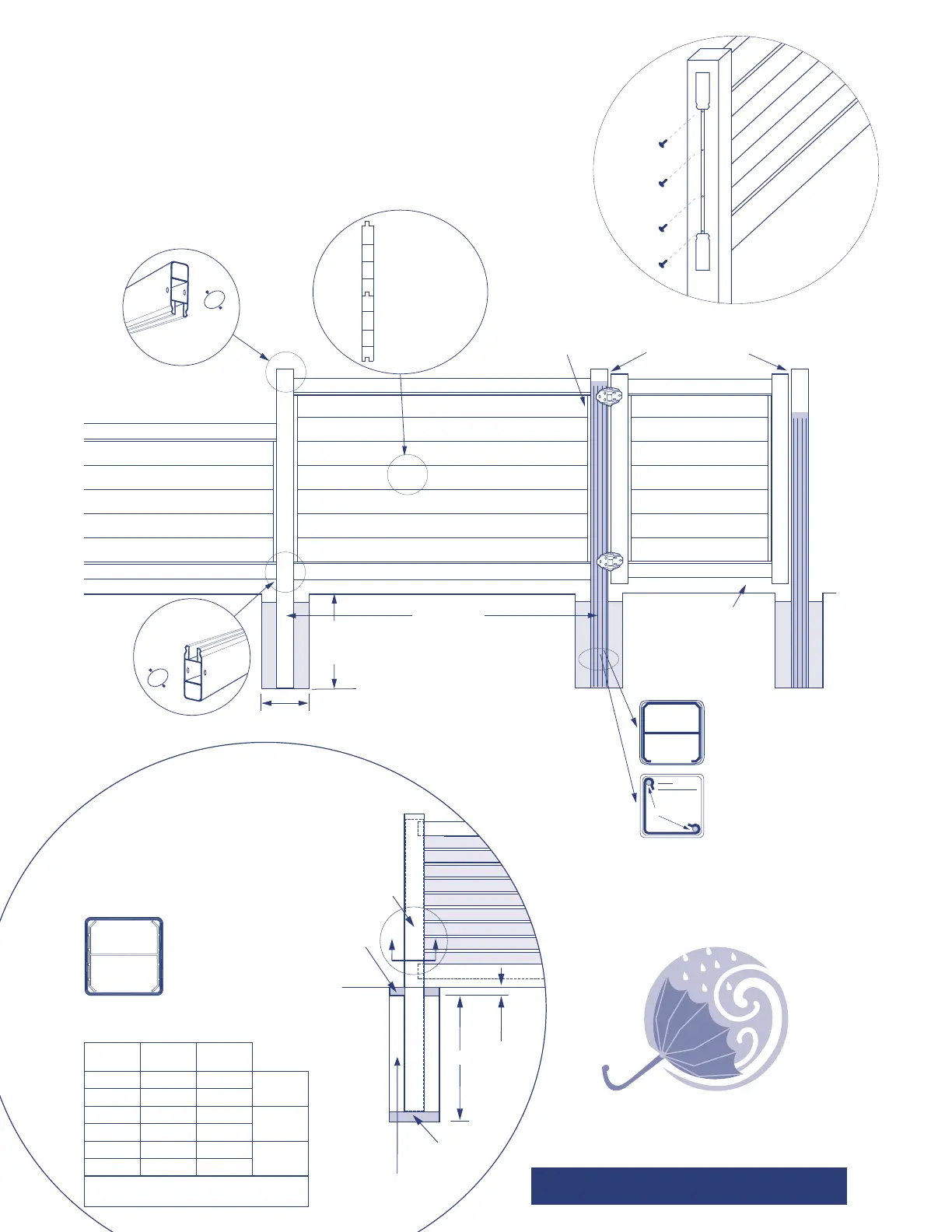

33
ALLOW CLEARANCE
FOR GATE SWING
ALLOW 1" FOR HINGE
AND 3/4" FOR LATCH SYSTEM
END CHANNEL
DIG HOLES 30"
DEEP OR TO
FROST LINE
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
POST CENTERS
5 X 5 POSTS = 72"
POST HOLES
5 X 5 POSTS = 12"
PICKETS FOR THIS STYLE
ARE TONGUE AND GROOVE
INSTALL PICKETS WITH
GROOVE SIDE DOWN*
HOLD TOP RAILS
IN POST WITH
LOCK RING
HOLD BOTTOM
RAILS IN POST
WITH LOCK RING
* CHANGING PICKET ORIENTATION
CAN AFFECT HORIZONTAL ALIGNMENT
OF FENCE PANELS.
*
Privacy Fence
Includes: Brookline
Brookline with CertaGrain
®
Texture
ATTACH END
CHANNEL TO POST
WITH 4 SCREWS
Stepping Recommended
SECTION A-A
LINE POST STIFFENER
ALUMINUM INSERT
EMBEDMENT DETAIL FOR OPTIONAL
LINE POST STIFFENER ALUMINUM INSERT
TO COMPLY WITH THE HIGH VELOCITY HURRICANE ZONES
SECTION R44003.1.2.1 OF THE FLORIDA BUILDING CODE, A
STEEL INSERT MUST BE ADDED TO THE TOP RAIL AND
THE CENTER PICKET MUST BE ATTACHED TO THE TOP
AND BOTTOM RAIL WITH (2) #8 X 1-1/2" SCREWS, CAPS,
AND WASHERS
TOP SOIL
GROUND LEVEL
CONCRETE 3000
P.S.I. MINIMUM
GRAVEL FILL
30
2
AA
ALUMINUM INSERT
(on Brookline and
Breezewood
Aluminum insert ends
1" from top of post.)
MINIMUM 106" INSERT REQUIRED TO COMPLY
WITH THE HIGH VELOCITY HURRICANE ZONES
SECTION R44003.1.2.1 OF THE FLORIDA
BUILDING CODE
FEATURING
WINDZONE™
PERFORMANCE
MAXIMUM POST SPACING
AND FOOTING DIMENSIONS
Wind
Exposure
Footing
Depth
Max. Post
Spacing
B 30" 97"
NON HVHZ
B 24" 66"
C 36" 88"
HVHZ and
NON HVHZ
C 30" 68"
D 36" 75"
HVHZ and
NON HVHZ
D 30" 56"
HVHZ: Miami-Dade and Broward counties wind
exposures as defined in the ASCE 7-10
