35

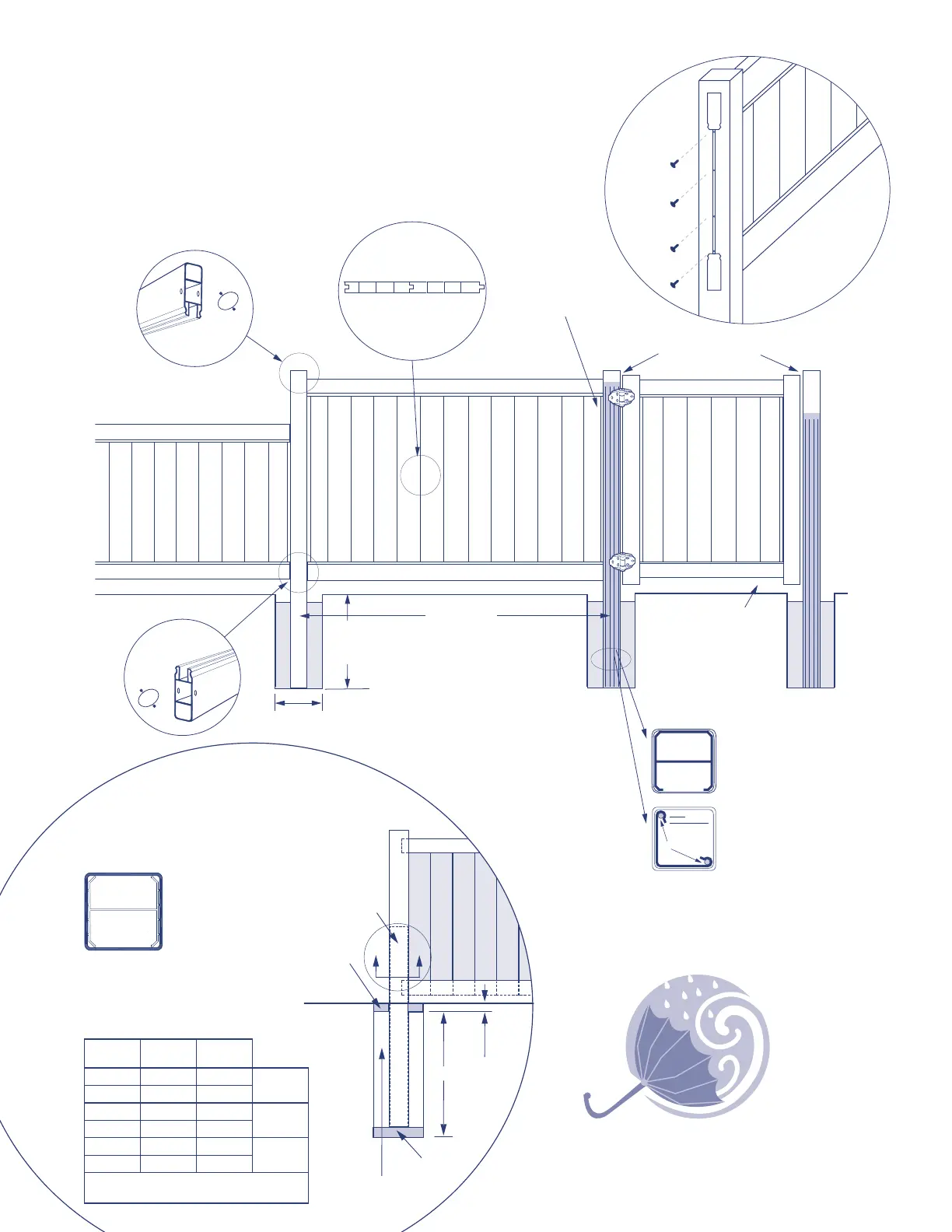

ALLOW CLEARANCE
FOR GATE SWING
PICKETS FOR THIS STYLE
ARE TONGUE AND GROOVE
ALLOW 1" FOR HINGE
AND 3/4" FOR LATCH SYSTEM
END CHANNEL
DIG HOLES 30"
DEEP OR TO
FROST LINE
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATION
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HINGE,
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WITH
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
POST CENTERS
5 X 5 POSTS = 97"
POST HOLES
5 X 5 POSTS = 12"
HOLD TOP RAILS
IN POST WITH
LOCK RING
HOLD BOTTOM
RAILS IN POST
WITH LOCK RING
Privacy Fence
Includes: Chesterfield
Chesterfield with CertaGrain
®
Texture
TOP SOIL
GROUND LEVEL
CONCRETE 3000
P.S.I. MINIMUM
GRAVEL FILL
30
2
AA
MINIMUM 48" INSERT REQUIRED TO COMPLY WITH THE HIGH
VELOCITY HURRICANE ZONES SECTION R44003.1.2.1 OF THE
FLORIDA BUILDING CODE
EMBEDMENT DETAIL
SECTION A-A
LINE POST STIFFENER
ALUMINUM INSERT
EMBEDMENT DETAIL FOR OPTIONAL
LINE POST STIFFENER ALUMINUM INSERT
ALUMINUM INSERT
(on Brookline and
Breezewood Aluminum insert
ends 1" from top of post.)
FEATURING
WINDZONE™
PERFORMANCE
ATTACH END
CHANNEL TO POST
WITH 4 SCREWS
MAXIMUM POST SPACING
AND FOOTING DIMENSIONS
Wind
Exposure
Footing
Depth
Max. Post
Spacing
B 30" 97"
NON HVHZ
B 24" 66"
C 36" 88"
HVHZ and
NON HVHZ
C 30" 68"
D 36" 75"
HVHZ and
NON HVHZ
D 30" 56"
HVHZ: Miami-Dade and Broward counties wind
exposures as defined in the ASCE 7-10
