CertainTeed Bufftech - Page 39

39

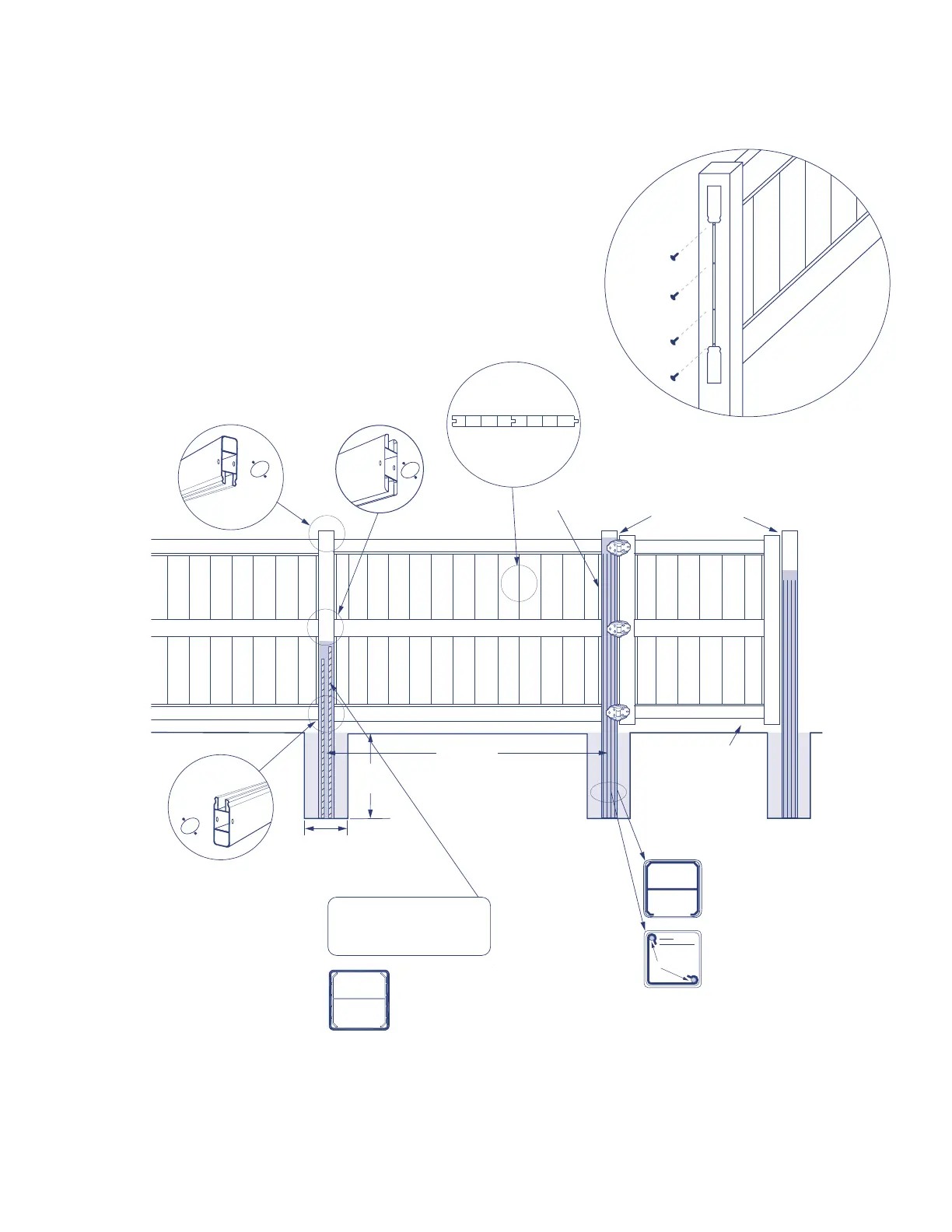

Privacy Fence
Includes: Galveston
Galveston with CertaGrain
®
Texture
END CHANNEL
ALLOW CLEARANCE
FOR GATE SWING
ALLOW 1" FOR HINGE
AND 3/4" FOR LATCH SYSTEM
NOTE: 3 HINGES ARE REQUIRED
FOR GALVESTON
FILL END, LINE AND CORNER POSTS WITH
CONCRETE TO 1" BELOW MID-RAIL.
USE (2) PIECES OF 1/2" REBAR IN EACH POST.
LENGTH OF REBAR SHOULD EXTEND FROM
BOTTOM OF HOLE TO 4" BELOW MID-RAIL.
HOLD TOP RAILS
IN POST WITH
LOCK RING
HOLD BOTTOM
RAILS IN POST
WITH LOCK
RING
DIG HOLES
30" DEEP OR
TO FROST LINE
INSERT ALUMINUM GATE POST STIFFENER
INSIDE POST FOR FASTER, CLEANER INSTALLATIO
N
REBAR
SEPARATOR CLIP
1/2" REBAR
USE (2) PIECES OF 1/2" REBAR IN HIN
G
LATCH AND END POSTS. POSITION REBAR
IN OPPOSING CORNERS OF EACH POST WI
T
REBAR SEPARATOR CLIPS
POST SUPPORT OPTIONS:
POST CENTERS
5 X 5 POSTS = 97"
POST HOLES
5 X 5 POSTS = 12"
HOLD MIDDLE RAILS
IN POST WITH
LOCK RING
PICKETS FOR THIS STYLE
ARE TONGUE AND GROOVE
POST SUPPORT OPTIONS:
LENGTH OF ALUMINUM
INSERT SHOULD EXTEND
FROM BOTTOM OF POSTS
TO 4" BELOW MID-RAIL.
LINE POST STIFFENER
ALUMINUM INSERT
ATTACH END
CHANNEL TO POST
WITH 4 SCREWS
