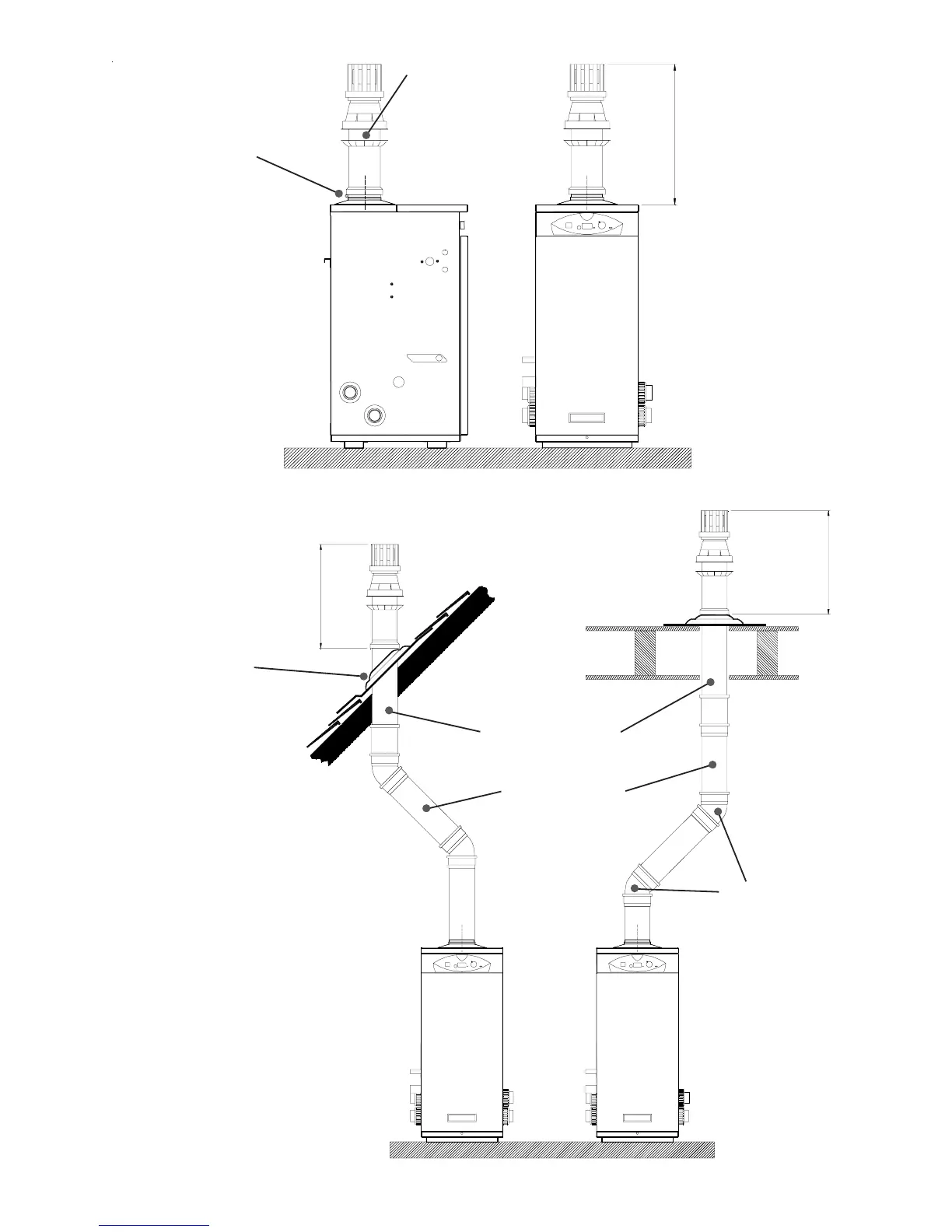

Outdoor Terminal
Dimensions
Condensing Pool Heater 8 14/11/06
Fig. 3.2
550
Outdoor Flue Terminal
(MBOT)
Fig. 3.3
Clamp Assembly
Screw
Pitched Roof
Installation
Vertical Roof Terminal
Dimensions
Flat Roof
Installation
500
500
Use Seldeck Flashing
System for all Roof
Installations
Vertical Roof Terminal
(MBVT)
1 metre Horizontal/
Vertical Extension Pipe
(MBHVE)
45 degree bends
(MB45DB)
