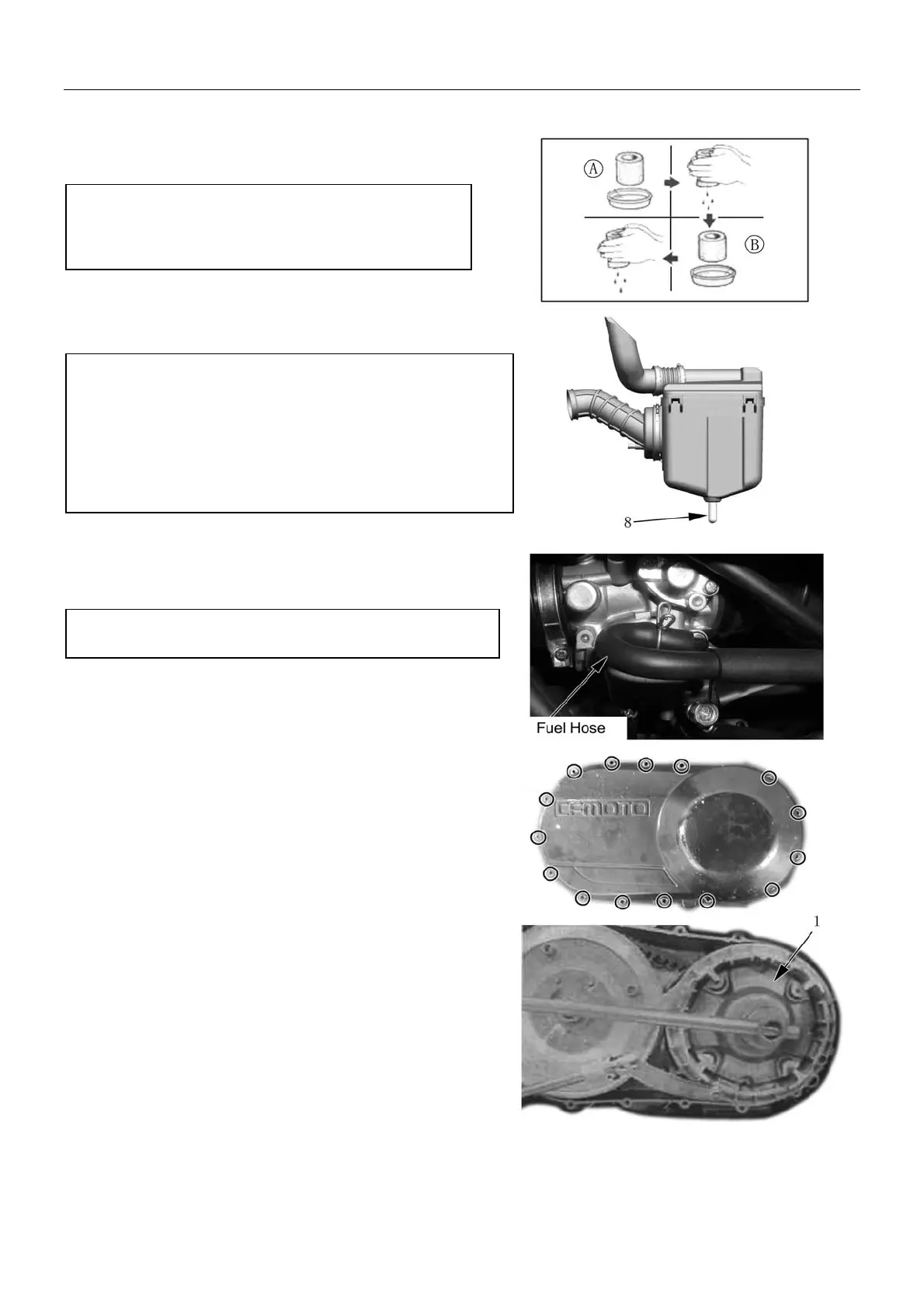

14. Checks & Adjustment
A--Non-flammable cleaning solvent
B—Engine oil SAE#30 or SAE10W/40.
Inspect the filter element for tears. torn element must be
replaced.
Remove the drain plug⑧ of air box to drain out any
water.
Fuel Hose
Inspect every 80 hours or 2000 km, replace every 4
years.
Inspect the fuel hose for damage and fuel leakage. If any
damages are found, replace the fuel hose with a new
one.
Drive Belt
Removal:
Remove CVT cover
Hold the primary sheave with special tool and loosen
primary sheave nut.
Special Tool: Rotor Holder
Remove primary sliding sheave 1;
Hold the secondary sheave with special tool and loosen
secondary sheave nut. Remove secondary sheave
together with drive belt.
Special Tool: Rotor Holder
Remove drive belt from secondary sheave
14-6
Warning:
Never use with gasoline or low flash point solvents to
clean the filter element
Note:
If driving under dusty conditions, clean the air filter element
more frequently. The surest way to accelerate engine wear
is to operate the engine without the element or with torn
element. Make sure that the air filter element is in good
condition at all times.
