1. Overhaul Information

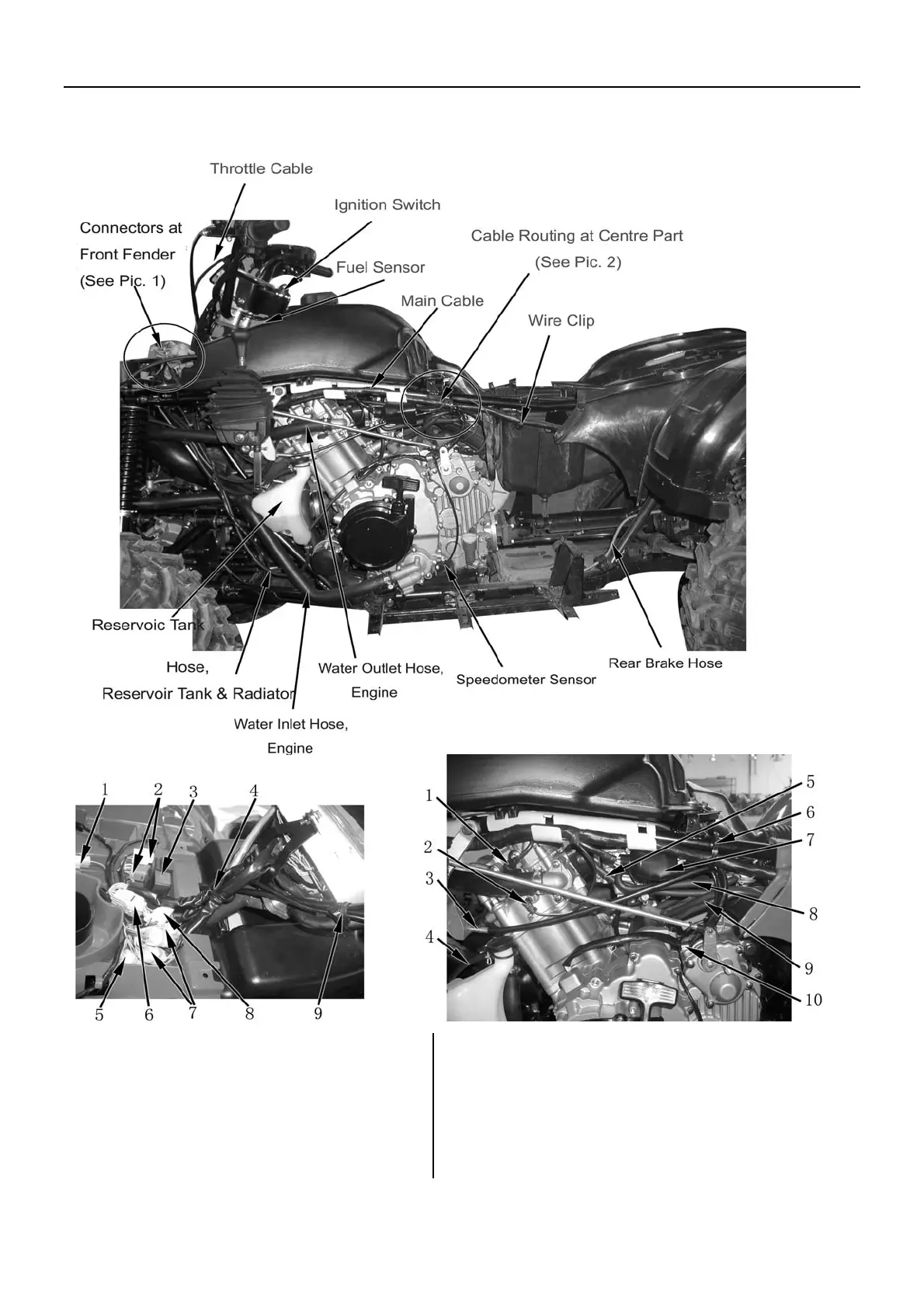

Cable Routing
1. Connector, Fan Motor 2. Connector, CDI 1. Ignition Coil 2. Water Temperature Sensor
3. CDI 4. Wire Clip 3. Cable, Parking 4. Breather Hose, Reservoir Tank
5. Connector, Starting Switch 5. Vacuum Tube 6. Wire Clip
6. Connector, Dashboard 7. Connector for Magneto, Gear Sensor and Pickup Coil
7. Connector, Handlebar Switch (L&H) 8. Fuel Pipe, Carburetor
8. Connector, Ignition Switch 9. Wire, Starting Motor
9. Wire Clip 10. Steel Wire Clip
1-12
