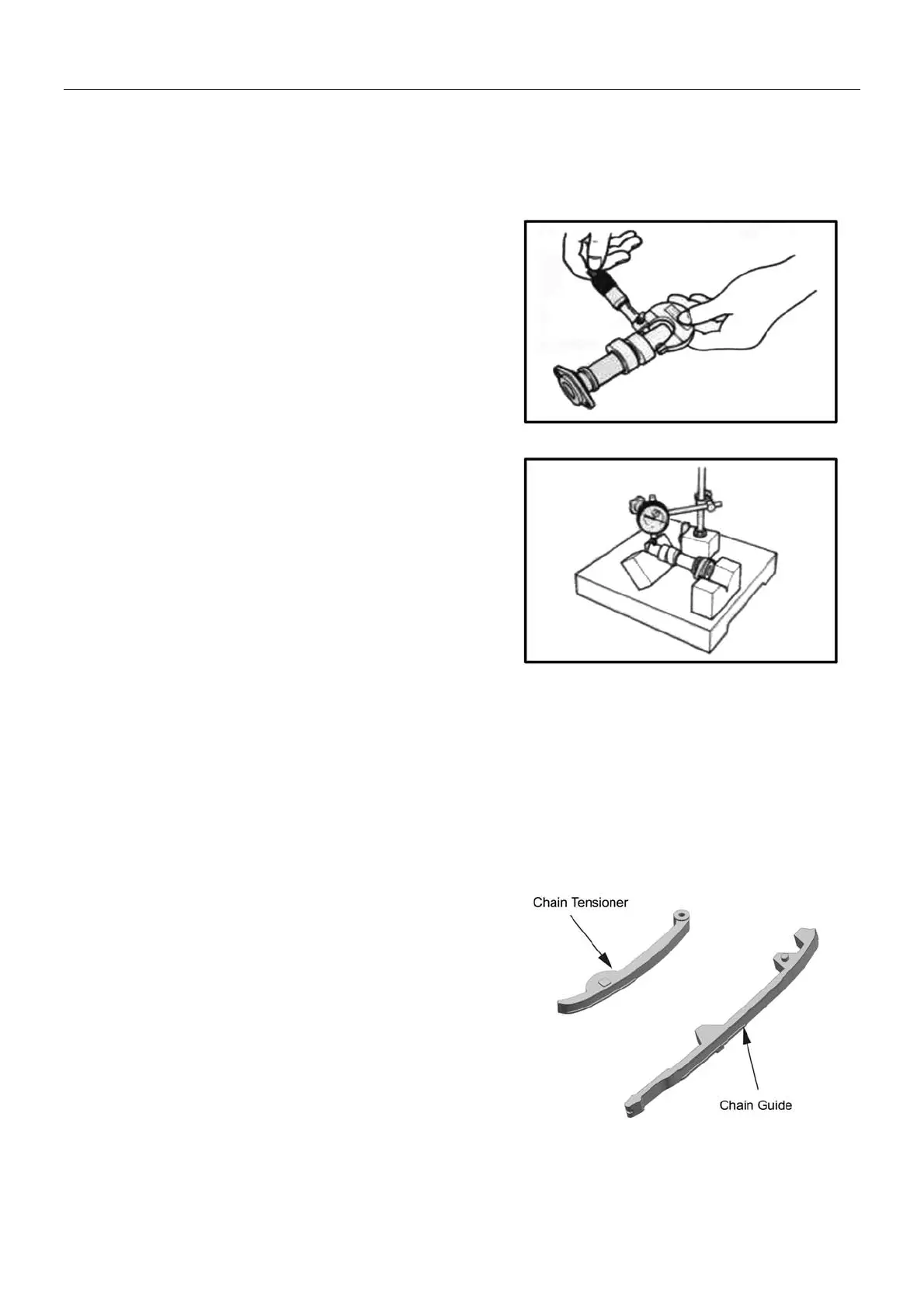

15. Engine Removal, Inspection & Installation
Camshaft Journal O.D.
z Measure camshaft journal O.D. with a micrometer.
If the O.D. is out of range, replace camshaft with a
new one.
Camshaft journal O.D. service limit:
Sprocket end: 22.959 mm—21.980mm
Other end: 17.466mm—17.484mm
Tool: micrometer (0-25mm)
Camshaft Run-out
z Measure the run-out with a micrometer. Replace
camshaft is the run-out is out of range.
Service limit: 0.10mm
Timing Sprocket and Chain
z Check timing sprocket and chain for wear or
damage.
z Replace with new parts if abnormal wear or damage
is found.
Tensioner and Chain Guide
z Check contact surface of tensioner and chain guide
for wear and damage.
z Replace with news parts if abnormal wear or
damage is found.
15-23
