CFMoto CF500 - Body Panel and Rack Removal

2. Vehicle Body, Muffler

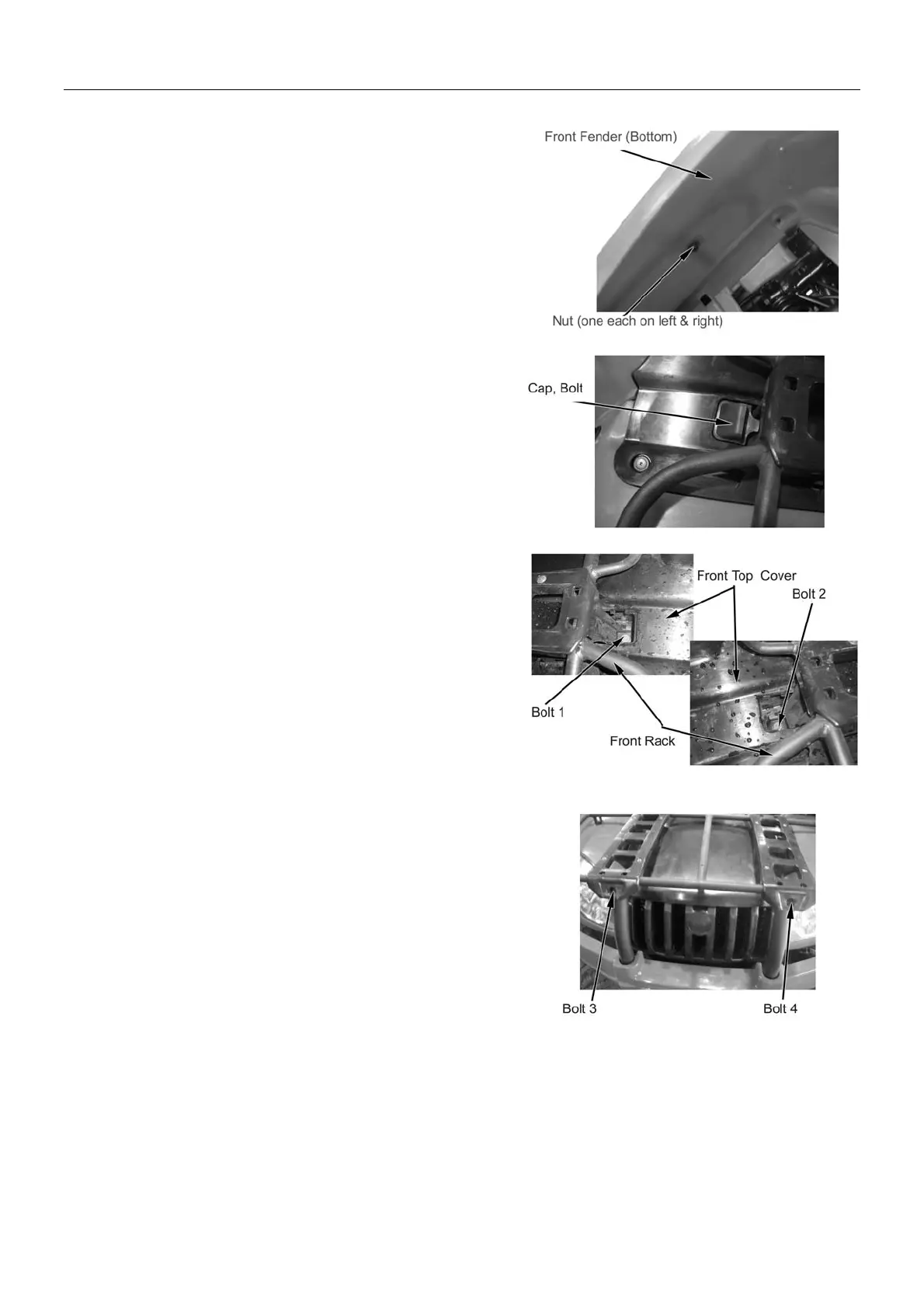

Front Rack, Bolt Cap
Remove:
Remove 2 nuts from the bottom of front fender
Exert upward and remove bolt cap
Remove:
--Fixing Bolt 1 , Bolt 2
--Fixing Bolt 3, Bolt 4
--Front rack
Installation:
Reverse the removal procedure for installation
Tightening Torque: Fixing Bolt 1, Bolt 2
35 N.m -45N.m
Fixing Bolt 3, Bolt 4
25 N.m -30N.m
2-2
