2. Vehicle Body, Muffler

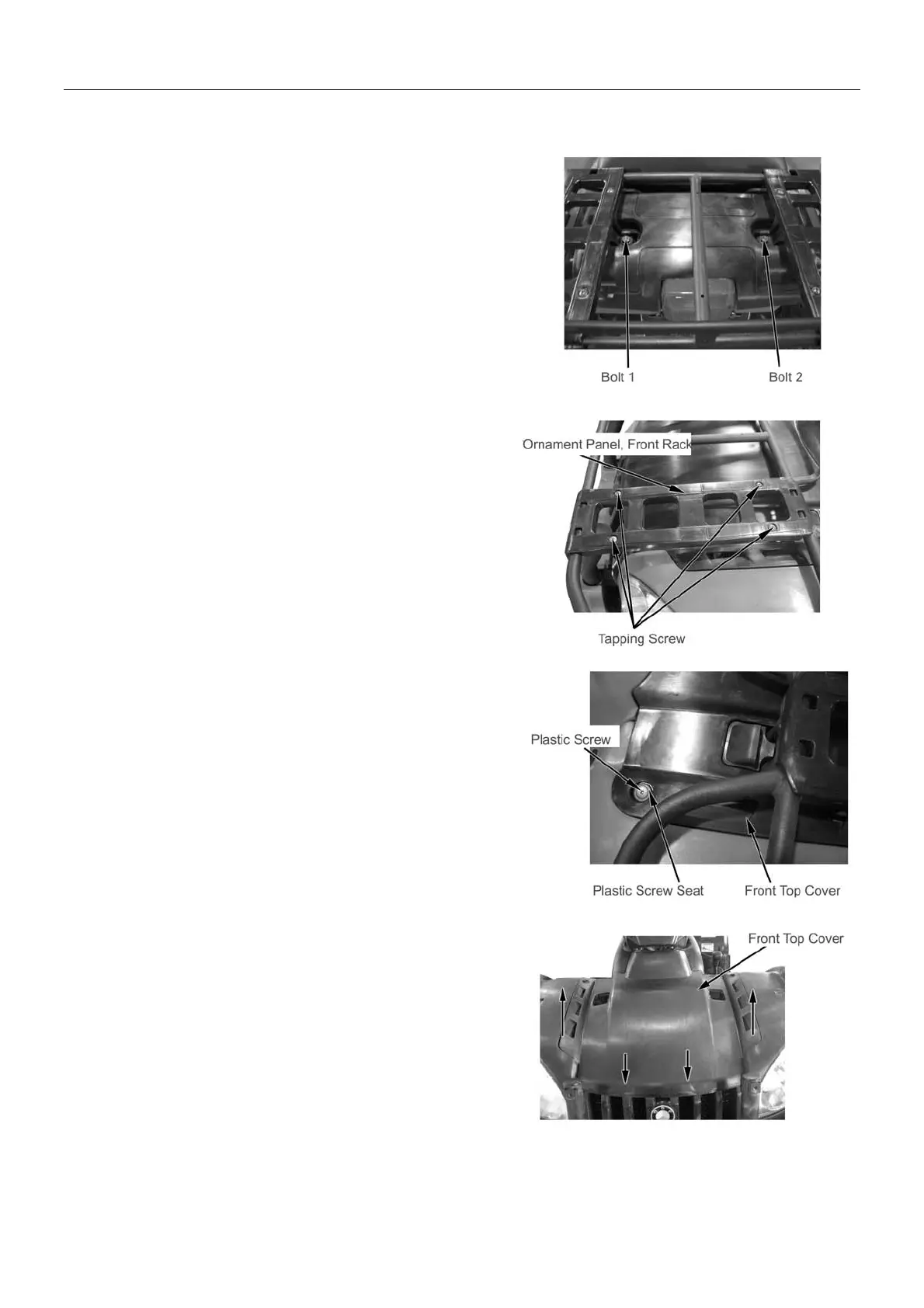

Remove Bolt 1, Bolt 2
Remove rear rack
Installation
Reverse the removal procedure for installation
Tightening Torque: Fixing Bolt, Rear Rack
35 N.m -45N.m
Ornament Panel, Front Rack
Remove:
Remove four tapping screw from front rack
Installation:
Reverse the removal procedure for installation.
Ornament Panel, Rear Rack
Repeat above procedure for removal and installation
of ornament panel, rear rack.
Front Top Cover
Remove:
Remove front rack (→2-2)
Push upward plastic screw from front fender
bottom with a flat screwdriver;
Remove plastic screw and plastic screw seat
Separate clasps of top cover from fuel tank
and front fender as illustrated on the right;
Push forward and remove front top cover.
