16. Carburetor

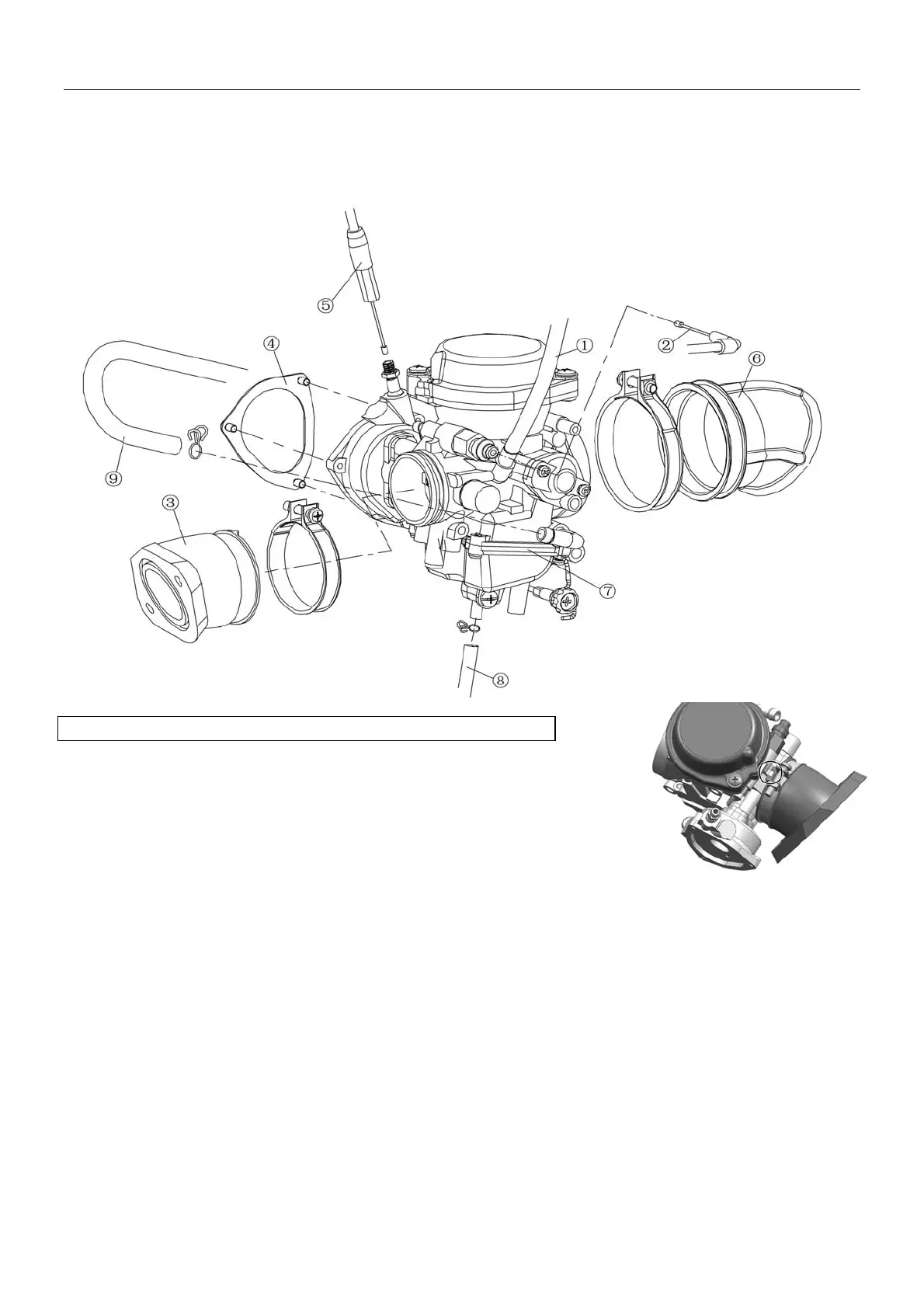

Carburetor Installation
①-vacuum breather hose ②-starter cable ③-carburetor joint (engine intake manifold))
④-throttle valve cover ⑤-throttle cable ⑥-Carburetor joint (air filter) ⑦-carburetor
⑧-drain hose ⑨-fuel inlet hose
Note: Align the installation mark of carburetor and carburetor joint
6. Carburetor Parameters
Type
Aperture No.
Throat size (mm)
Pilot (r/min)
Float height (mm)
Fuel level (mm)
Main jet (MJ)
Main air jet (MAJ)
Jet needle (JN)
Needle jet (NJ)
Pilot jet (PJ)
Pilot screw (PS)
Pilot air jet1 (PAJ1)
Pilot air jet2 (PAJ2)
MIKUNI BSR36-89
07G0
36mm
1300 r/min±100 r/min
10±1
3.5±0.5
N102221-130#
MD13/24-35#
J8-5E26
785-401011-P-OM
N224103-22.5#
604-16013-1A
MD13/24-65#
N211100-165#
16-6
