17. Cooling and Lubrication System

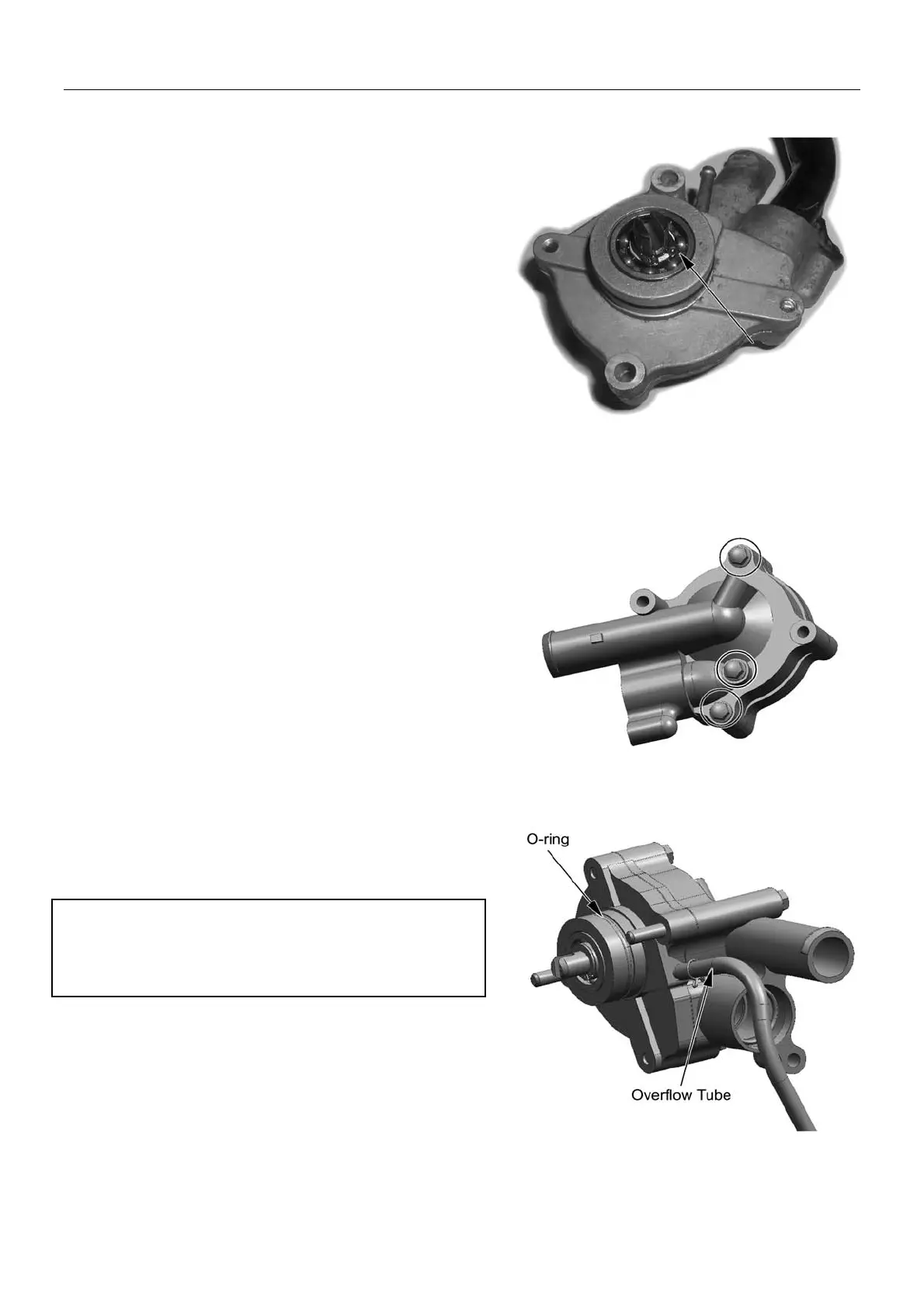

z Install E-ring to water pump shaft;
z Install new gasket to water pump body;
z Install water pump cover and tighten the bolts and
bleed bolt.
Water Pump Cover Bolts Tightening Torque: 6N.m
z Check impeller for smooth turning.
z Install the new O-ring
Note:
z Use the new O-ring to prevent oil leakage;
z Apply grease to O-ring
17-12
