5. Removal and Installation of Engine, Drive Train and Gearshift Unit

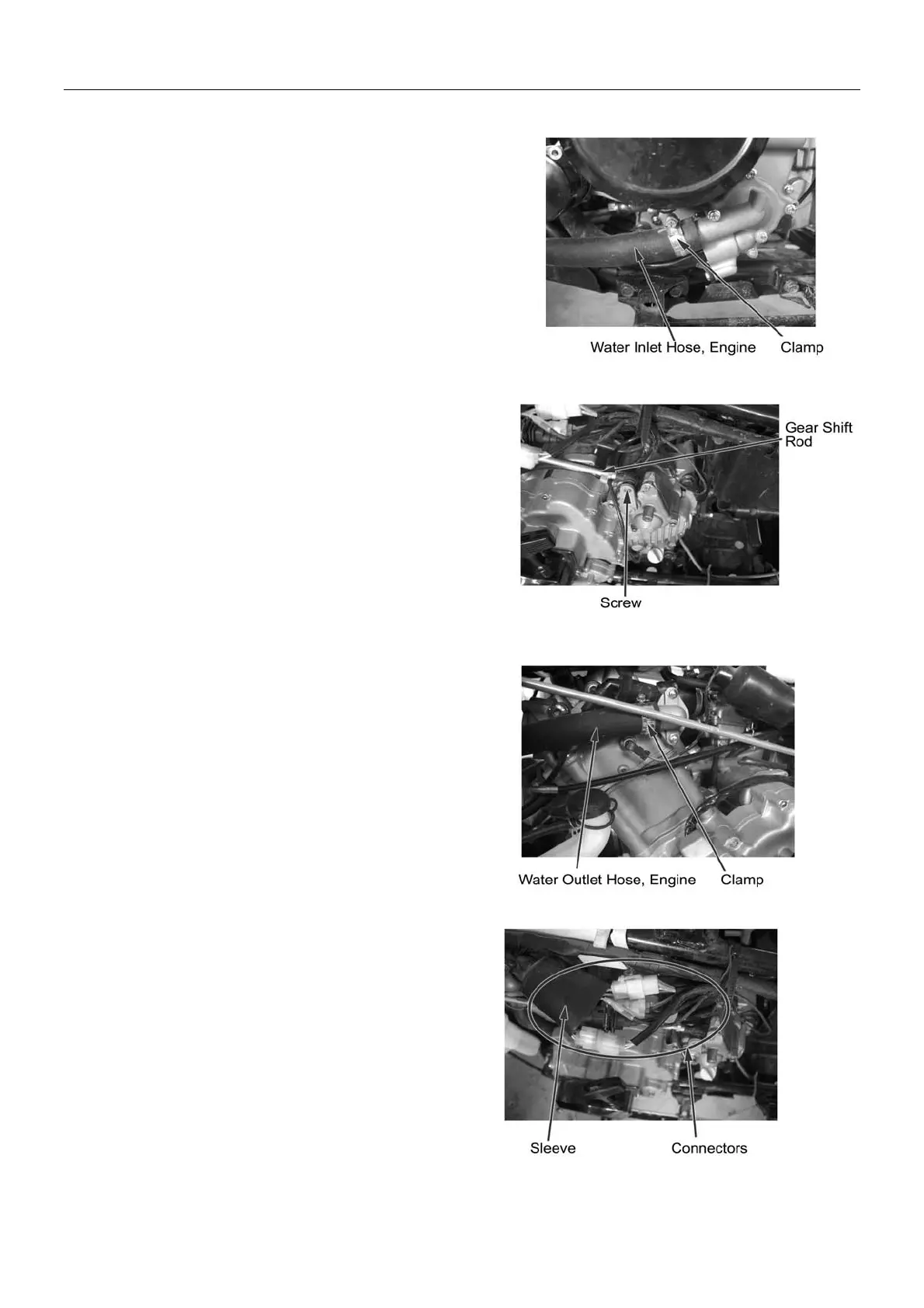

Engine Removal
Remove:
--Plastic(→Chapter 2)
--Air Filter(→Engine service chapter)
--Carburetor (→Engine service chapter)
--Clamp
--Water Inlet Hose
Remove screw
Remove gearshift rod
Remove clamp
Remove water outlet hose
Remove Sleeve.
Remove connectors of magneto, enriching device lead,
pickup, water temperature transducer, gear sensor as
illustrated on the right.
5-2
