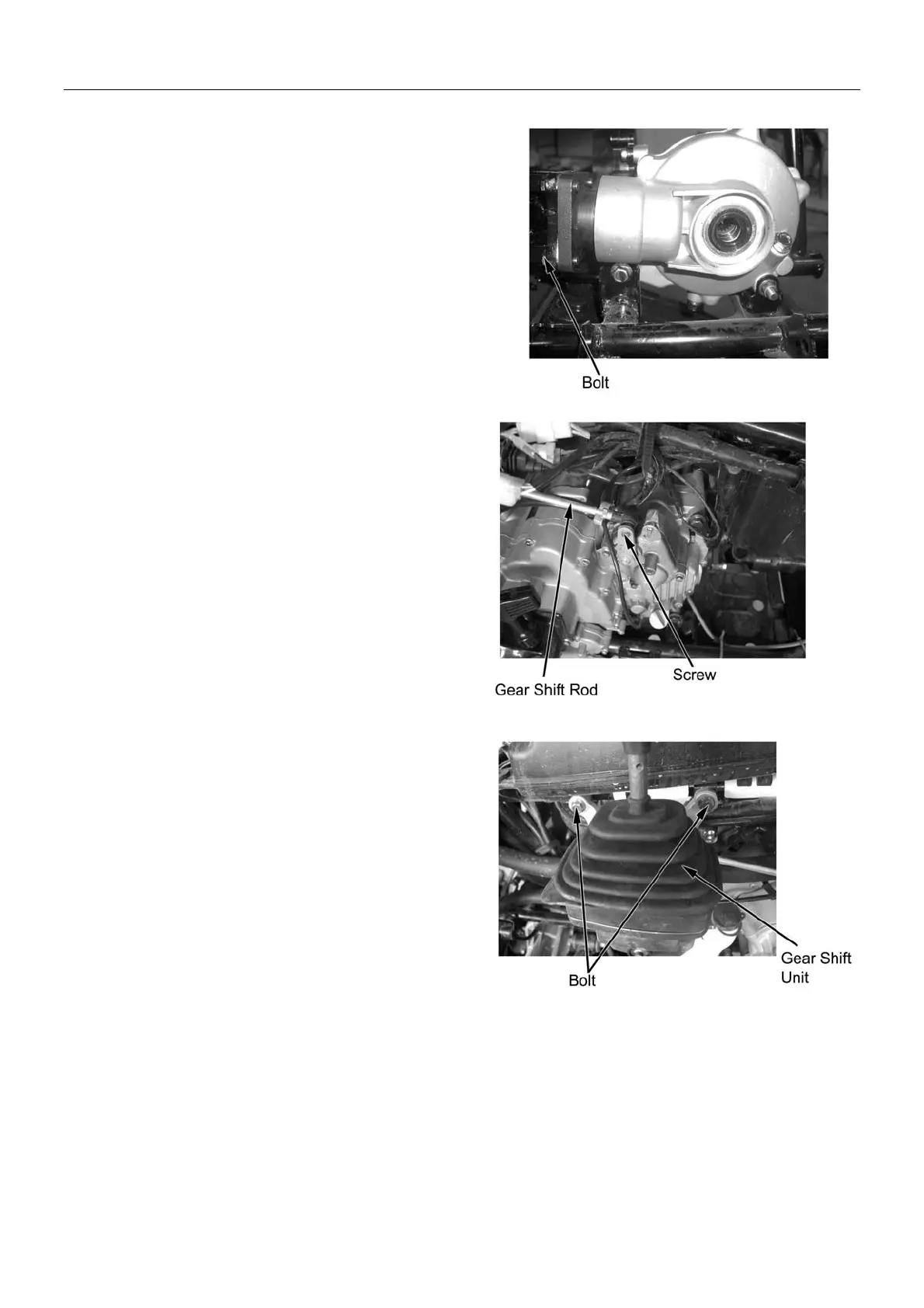

5. Removal and Installation of Engine, Drive Train and Gearshift Unit
Remove the 18 bolts for drive shafts
and front and rear axles.
(Refer to P. 5-5, Bolt 3 of Part No.5)
Remove:
--Front and rear axles, drive shafts, rear brake disc
Installation:
Reverse the removal procedure for installation.
Tightening torque:
Bolt, front axle：40-50N.m
Bolt, rear axle：40-50N.m
Bolt, front and rear drive shafts：40-50N.m
Gearshift Unit
Remove:
--Left and right side panel（→2-6）
--Fuel tank top cover (→2-8)
--Front fender(→2-8)
--Bolt 1
--Gearshift rod
Remove the 2 bolts
Remove gearshift unit
Installation:
Reverse the removal procedure for installation.
Make sure that gearshift is flexible.
In case of any inflexibility, adjust the gearshift rod to
ensure the gear engagement.
