6. Front Wheel, Front Brake, Suspension, Steering

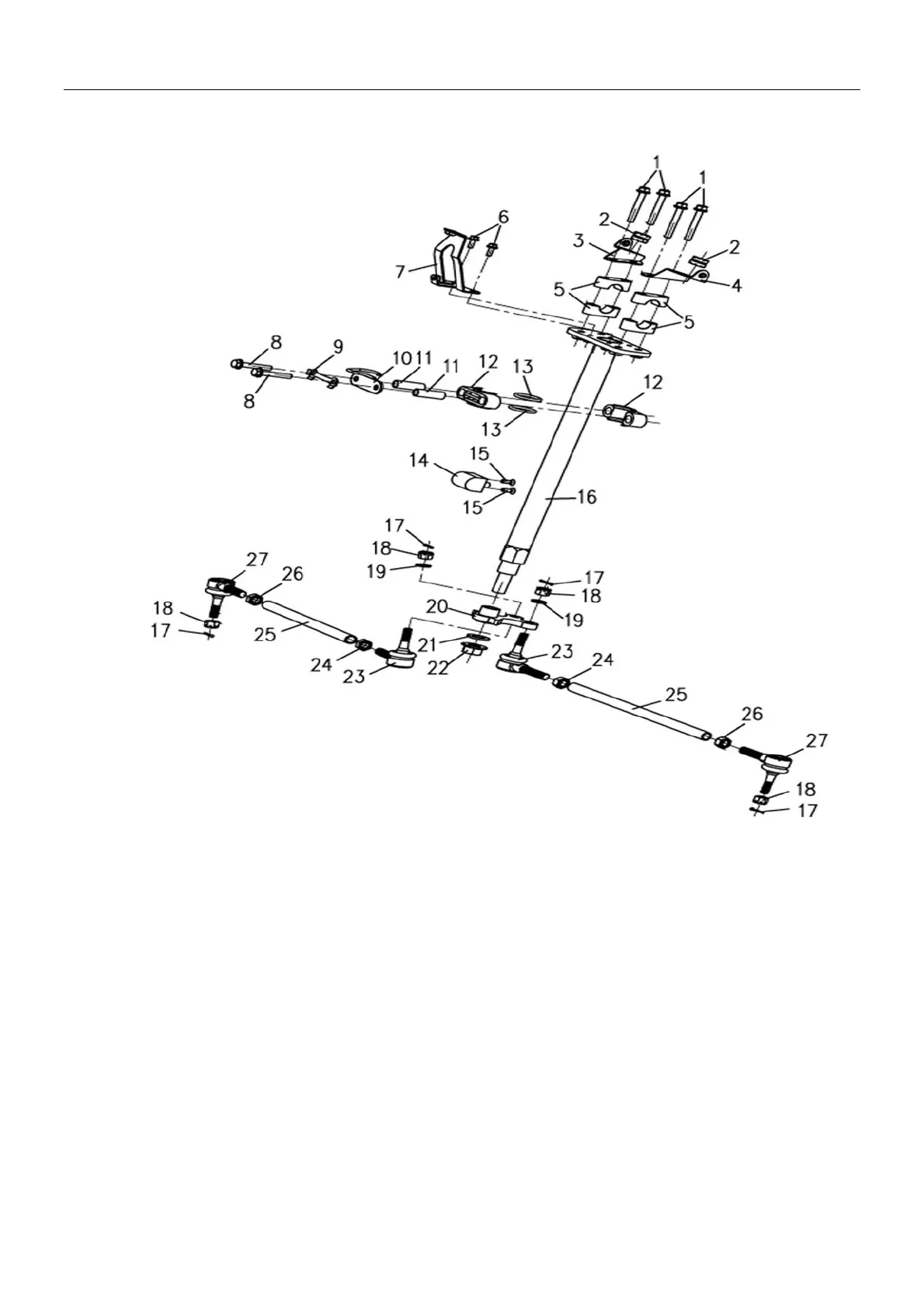

Steering System
1 Bolt 1
2 Rubber
3、Right Bracket，Dashboard
4、Left Bracket，Dashboard
5、Alum Cover，Handlebar
6、Bolt 2
7、Front Bracket，Dashboard
8、Bolt 3
9、Lock Pad
10、Adapter Plate
11、Bush
12、Bushing，Steering Stem
13、Seal Ring 25、Tie-Rod
14、Steering Lock 26、Nut 4
15、Screw 2 27、Steering Knuckle 2
17、Cotter Pin
18、Nut 1
19、Washer 1
20、Pitman Arm
21、Washer 2
22、Nut 2
23、Steering Knuckle 1
24、Nut 3
6-17
