6. Front Wheel, Front Brake, Suspension,
Steering

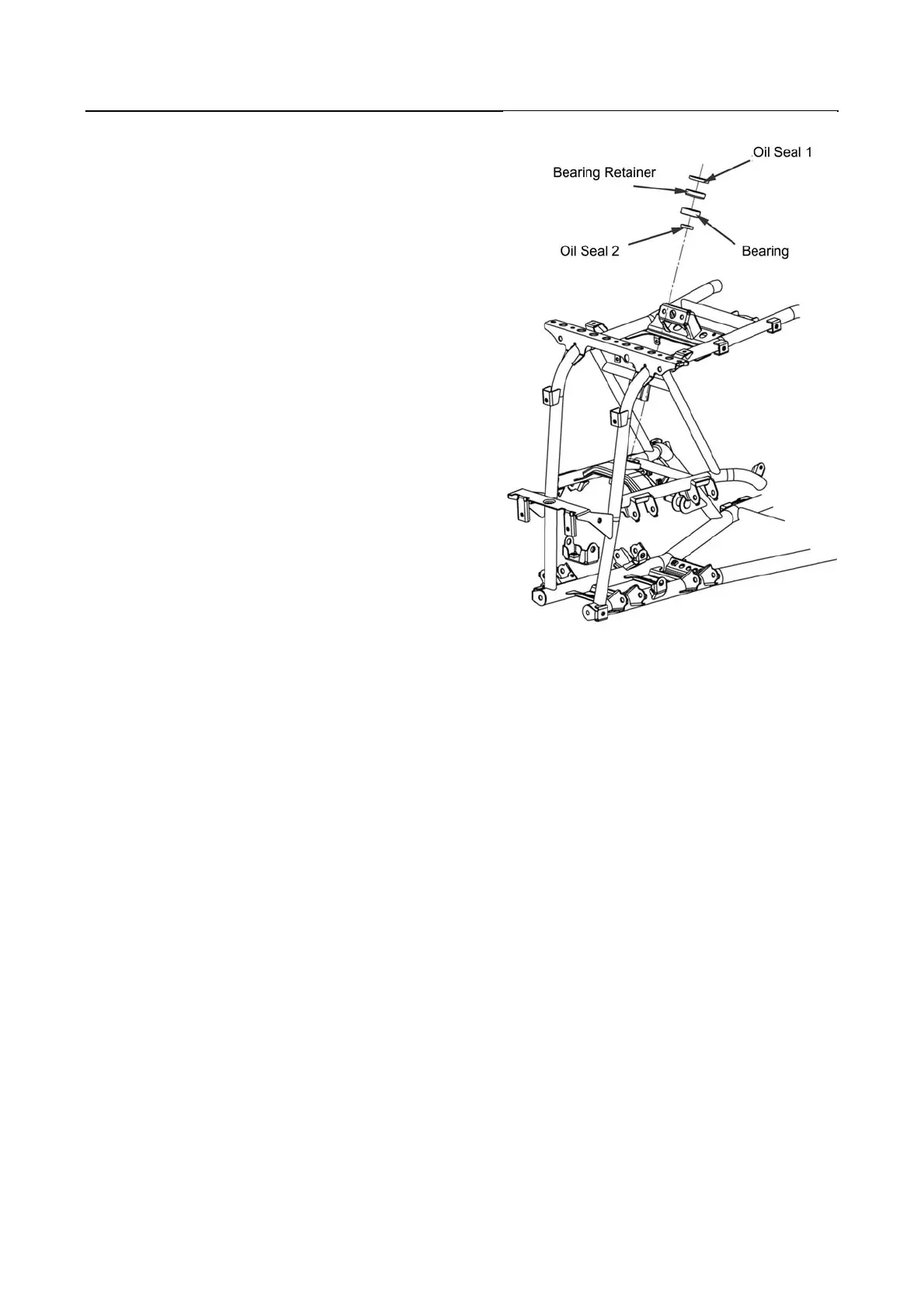

Steering Bearing, Oil Seal
Remove:
--Front wheel (→6-2)
--Steering stem (→6-18)
Remove front left & right arms(upper & lower)( →6-9)
Remove steering bearing and oil seal from frame with
special tool
Special tools:
Bearing removal tool set
Rotor puller
Removal tool shaft
Removal tool hammer
Installation
Reverse the removal procedure for installation.
Special tools:
Tool A, Bearing Race
Tool shaft
Note:
Use special tools for installation of bearing.
Reverse the removal procedure for installation of
the steering system.
NOTE:
Check steering after installation.
6-19
