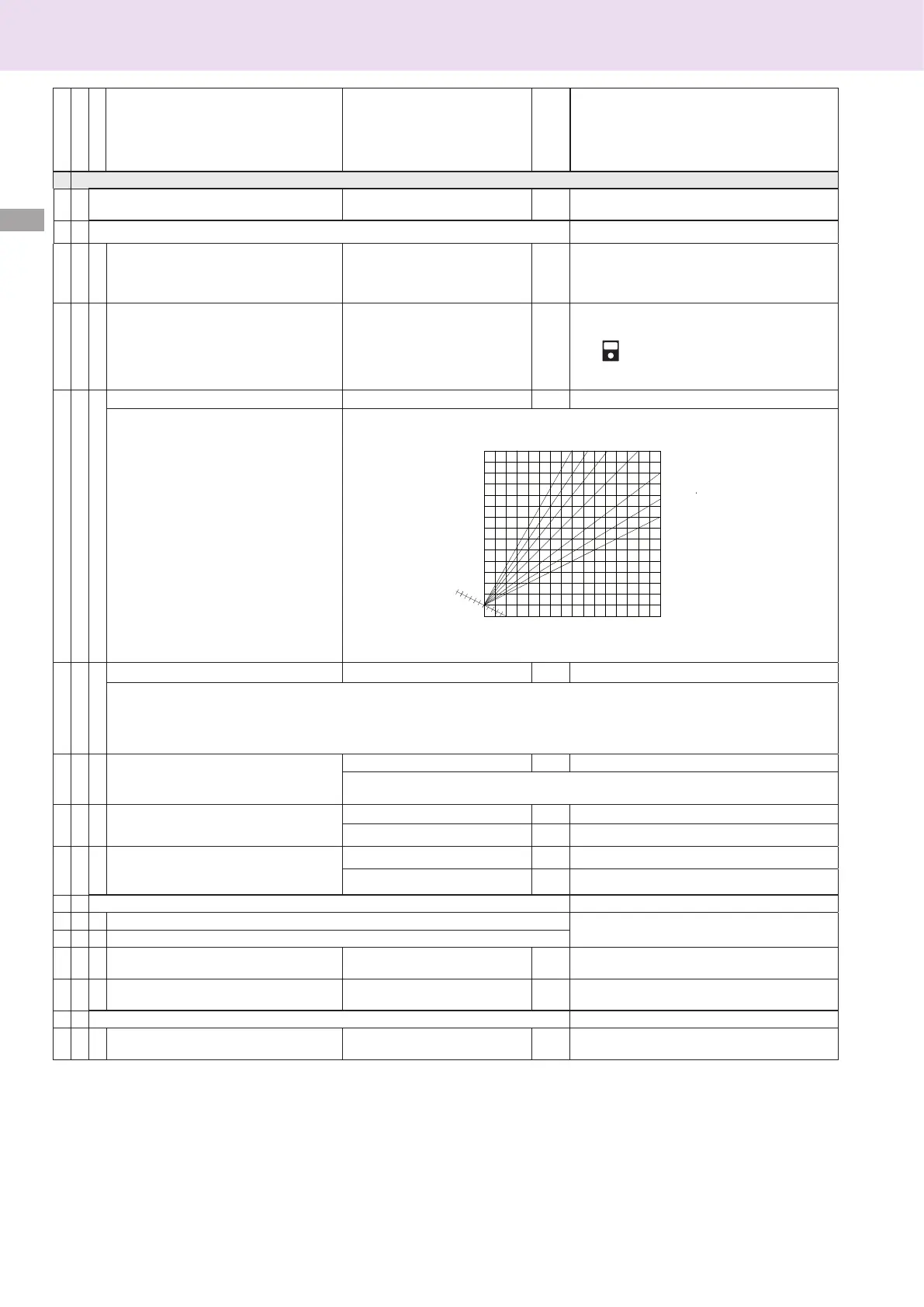

Settings
GB
Settings
menu sub-menu parameter description value default setting
4 ZONE 1 PARAMETER
4 1 Entering access code 222 turn the encoder clockwise to select 234 and
press the MENU/OK button
4 2 ZONE 1 SETTING
4 2 0 Heating appliance temperature value
setting
0 = from 20 to 45°C (low
temperature)
1 = from 35 to 85°C (high
temperature)
1 select in the appliance type base
4 2 1 Basic heating control type selection type
depending on the peripheral devices
connected
0 = xed ow temperature
1 = device On/O
2 = ambient sensor only
3 = external sensor only
4 = ambient sensor + external
sensor
1 To activate the Thermoregulation press the SRA
button. The display lights up the SRA symbol
4 2 2 Slope 0_2 to 3_5 1_5
If the external sensor is used, the boiler
calculates the most suitable heating ow
temperature taking the external temperature
and the type of appliance into account.
The type of curve must be chosen according
to the type of appliance radiator and the
heat losses present in the building.
4 2 3 Parallel shift - 20 to + 20 0
To adapt the thermal curve to the appliance requirements, it is possible to perform a parallel shift of the curve in order to alter the calculated
ow temperature and therefore the ambient temperature.
The shift value between - 20 and + 20 is shown on the display. Each level corresponds to a 1°C increase in the ow temperature in relation
to the initial setting.
4 2 4 Compensation 0 to + 20 20
if setting = 0, the temperature taken from the ambient sensor does not aect the calculation of
the setting. If setting = 20, the temperature taken has maximum inuence on the setting.
4 2 5 Zone 1 heating maximum temperature
setting
35 to + 82°C 82 if parameter 420 = 1
20 to + 45°C 45 if parameter 420 = 0
4 2 6 Zone 1 heating minimum temperature
setting
35 to + 82°C 35 if parameter 420 = 1
20 to + 45°C 20 if parameter 420 = 0
4 3 DIAGNOSTICS display only
4 3 0 Zone 1 room temperature Activated only with the modulating device con-
nected (option)
4 3 1
Zone 1 set temperature
4 3 2
Zone 1 heat request
0=OFF
1=ON
4 3 3
Pump status
0=OFF
1=ON
Active only with MGZ/MCM kit
4 4 ZONE DEVICE MANAGEMENT
4 4 0
Pump control
0=OFF
1=ON
Active only with MGZ/MCM kit
température de départ
de l’installation
haute température
température externe
30
40
50
60
70
80
90
100°C
10
2.53.03.5 2.0
1.5
1.2
1.0
5 0 -5 -10 -15 -20 °C
External temperature
High temperature
Flow Temperature
