8. Line-Out port. The green port is used to connect the audio devices such as the
headphone or speaker.
9. Microphone port. The pink port is used to connect the microphone.
10. Side Speaker-Out port. The black port is used to connect the side speakers in the
8-channel audio configuration
11. Rear Speaker-Out port. The gray port is used to connect the rear speakers in the
4-channel, 6- channel or 8-channel configuration.
12. Center/Subwoofer port. The yellow port is used to connect the center/subwoofer
speakers in the 6-channel or 8-channel audio configuration.
Internal Connectors

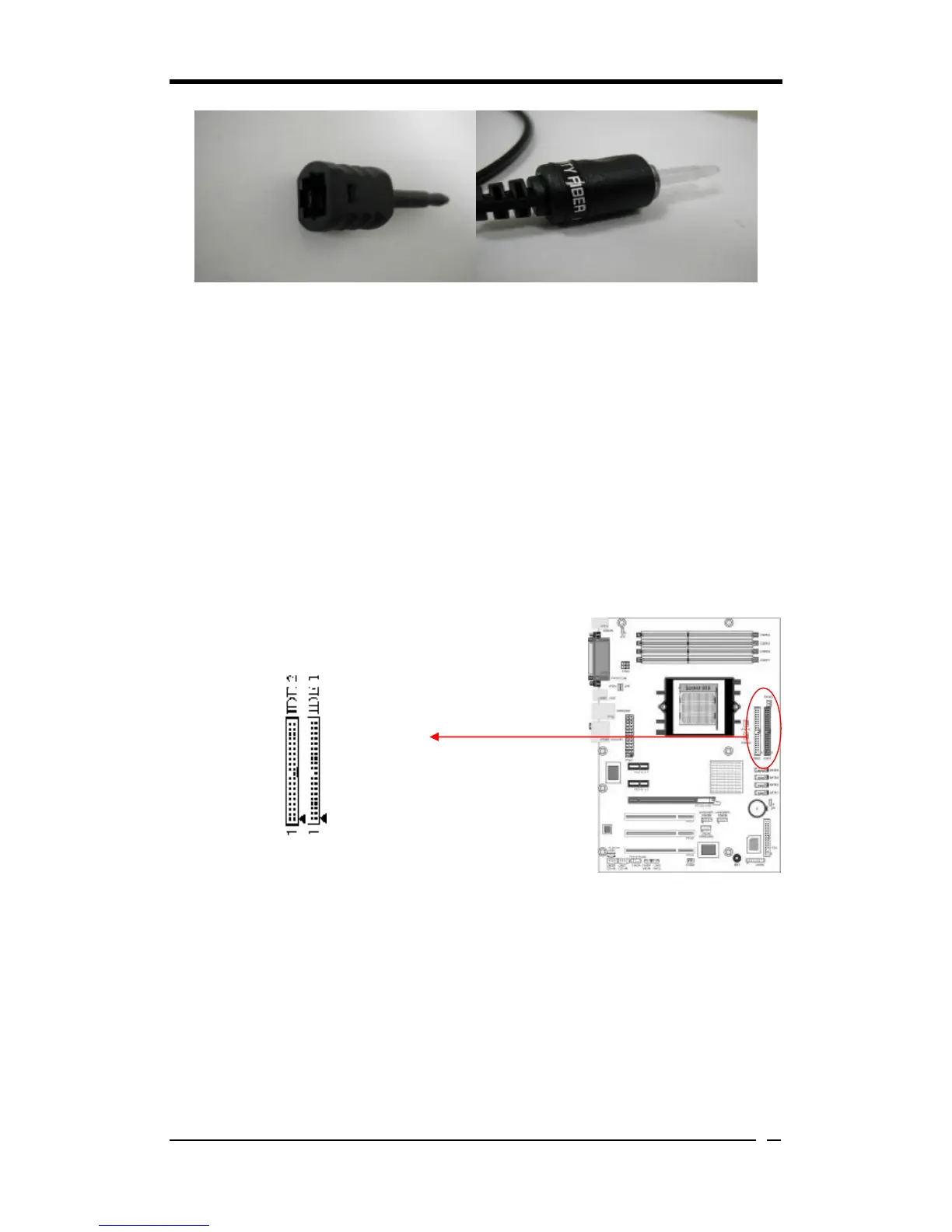

IDE 1/2 (IDE Hard-Disk Connector):
This motherboard has a 32-bit Enhanced PCI IDE and Ultra ATA66/100/133
controller that provides PIO mode 0~4, Bus Master, and Ultra ATA66/100/133
function. This connector is used for connecting ATAPI devices.
IDE 1 only connects two IDE devices. (Primary Master/Slave)
IDE 2 only connects two IDE devices. (Secondary Master/Slave)
