• Insert each of the lower bars into the slots of the housing .
• Use the 2 screws
19
provided to lock each bar into position in the deck.
• Fix the top curved handle
1
section to the lower handle bars
4
. Use the bolts
20
and wing nut
fasteners
3
provided. There are two possible height positions. Chose the one most suitable to
the operator’s height.
• Clip the cable to the handle bar with the cable clip
12
provided.
When the two wing nuts are loosened, the handle can be folded (Fig.4) for easy storage. Ensure the
power cable is not caught between the folding sections.

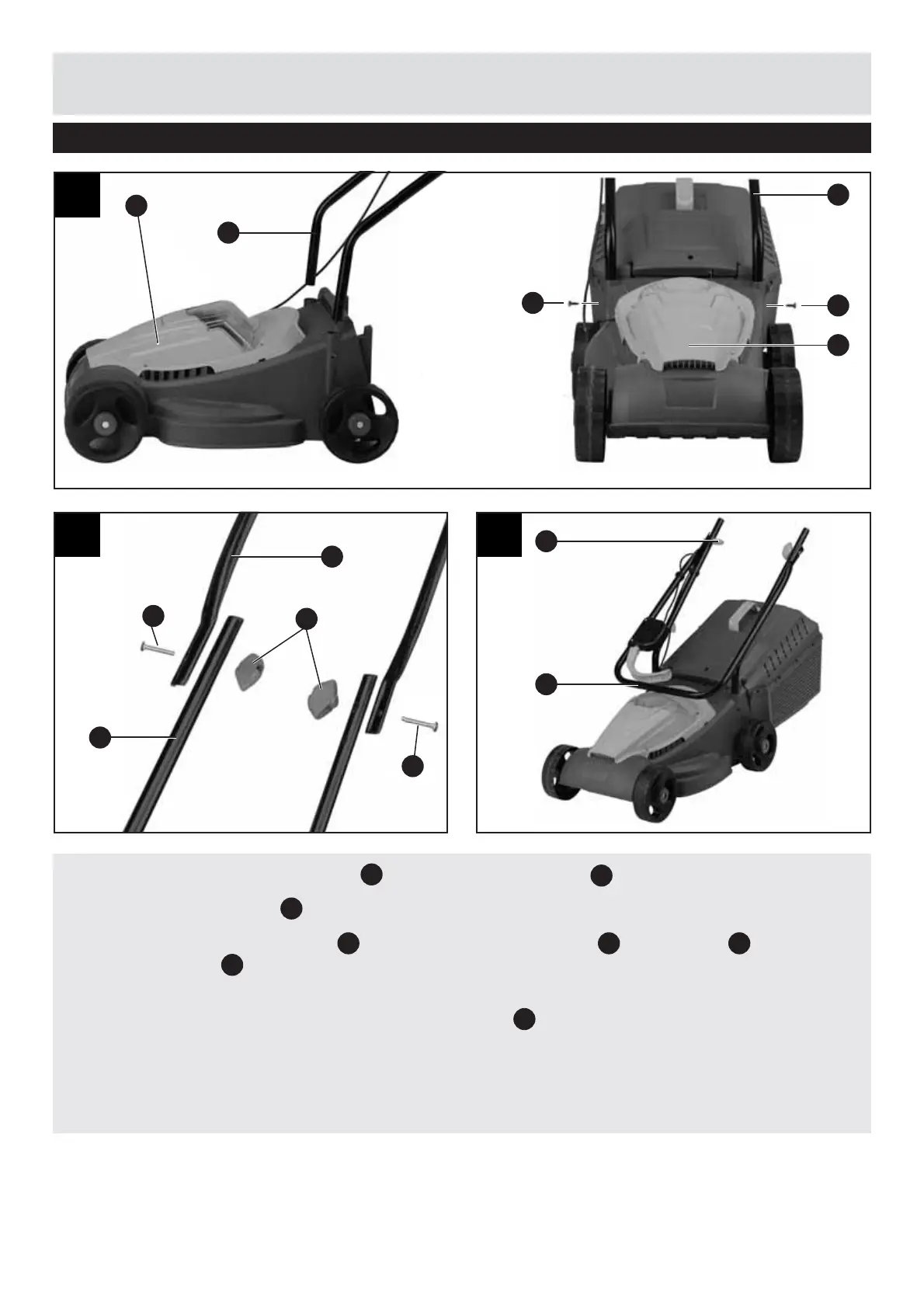

Step 1 - Handle Assembly
Assembly
2
3 4
4
4
19
10
20
3
3
4
1
20
1
10
19
4
10
