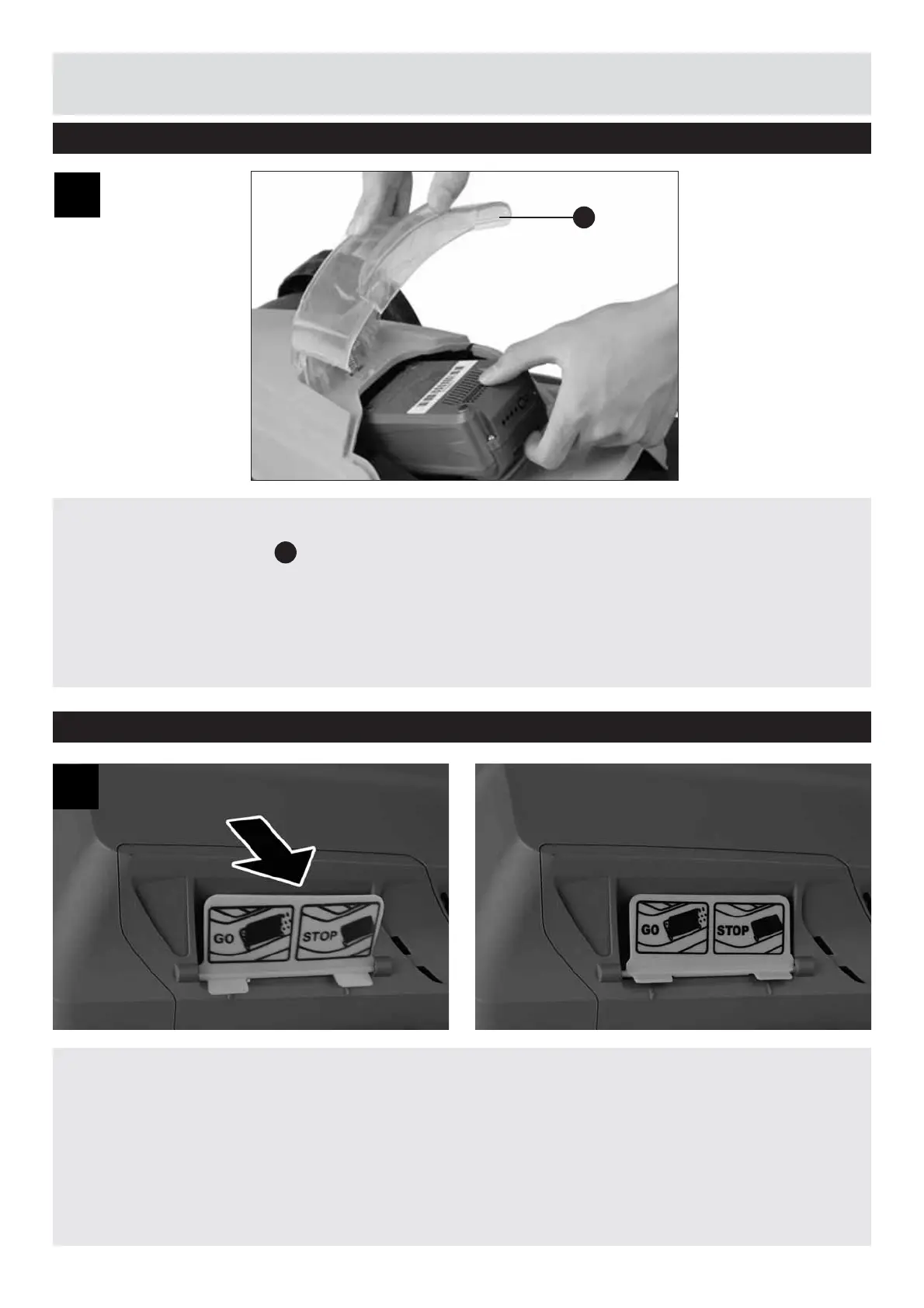

Fitting the battery
Lift the battery cover
11
, slide the battery into the battery chamber. Ensure it slides smoothly along the
support rails and locks into position. Close the battery cover.
Removing battery
Stop the machine. Pull out the isolator key. Lift the battery cover, activate the release latch on the
battery and slide the battery out. Close the battery cover.
Assembly
Step 4 - Fitting and Removing the Battery
7
11
Grass Full Indicator
Your mower may be tted with a grass full indicator. This is a small red ap on the top side of the
grass collector.
When this ap remains open as you work, it means that the grass collector is not full (air owing
freely through the grass collector).
When this ap remains closed it means that the grass collector is full and needs to be emptied (no
airow through the grass collector)
