Assembly

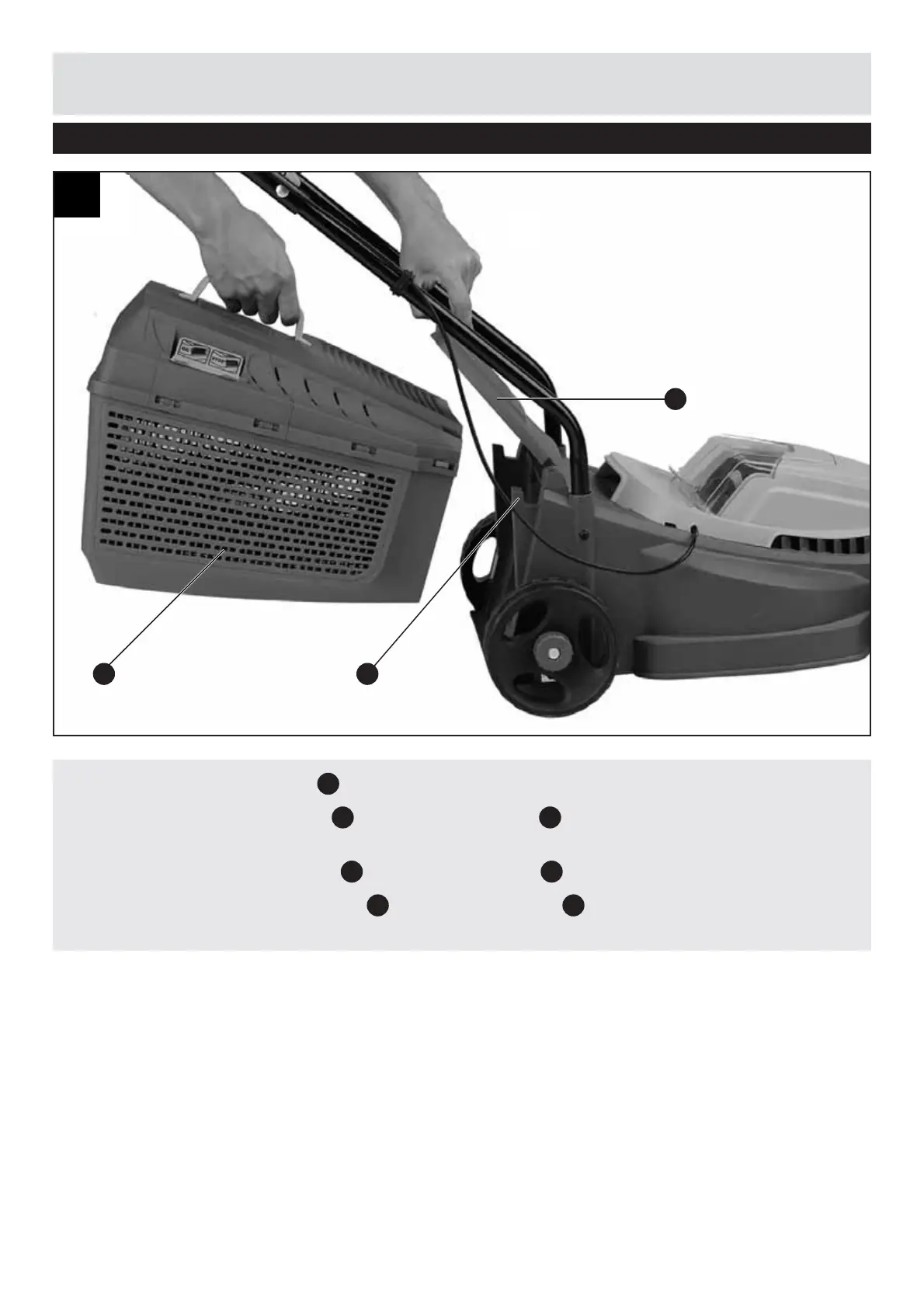

Step 3 - Fitting / Removing the Grass Collector
• Lift the deector guard
6
• Place the grass collector
7
on the mounting bracket
22
at the back of the lawn mower. Ensure
the grass collector ts snugly against the mower deck.
• Lower the deector guard
6
onto the grass collector
7
– a spring tensioner holds it in place.
• To remove the grass collector
7
, lift the deector guard
6
and unhook the grass collector from
the mounting bracket. Ensure the deector returns down to its original position.
6
6
7
22
