79032966 A Rev. 01-7
Safety

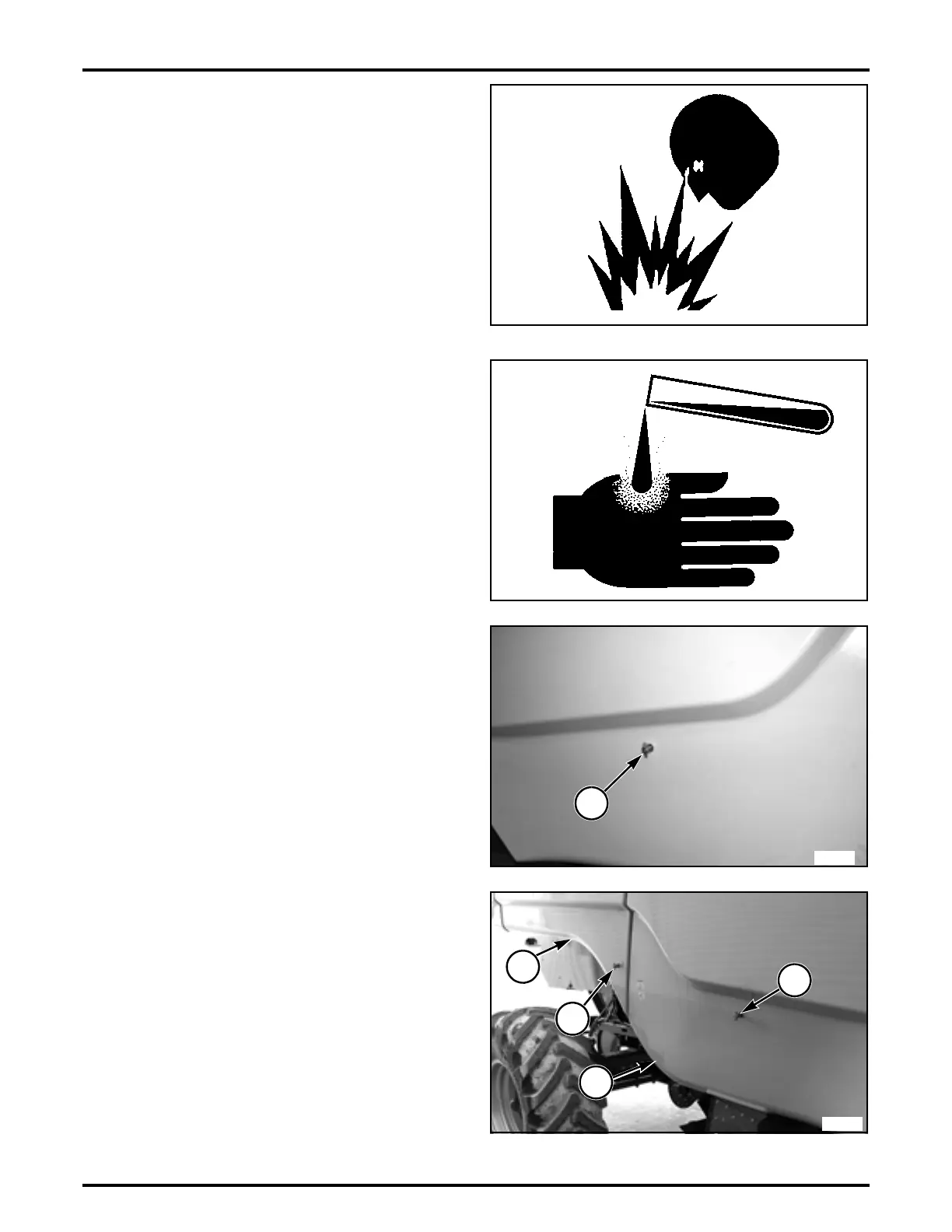

FIG. 22: Electrical storage batteries give off highly
flammable hydrogen gas. Keep smoking material, open
flame, or electrical sparks away from the battery. Do not
lay tools or other conductive materials on the battery.
Be careful when connecting booster cables to combine
batteries. Electrical component damage or battery
explosion can result if booster cables are not installed
correctly.
Do not charge a frozen battery as the battery can
explode. Warm battery to 16 degree C (60 degree F).
FIG. 23: Fluid in electrical storage batteries contains
sulfuric acid. Avoid all contact of fluid with eyes, skin, or
clothing. If contact does occur, flush off immediately with
large amounts of water.
m
WARNING: In order to provide a better
view, certain photographs and illustrations
in this manual may show an assembly with
the shield removed. Do not operate
combine unless all shields are in place.
Replace shields immediately upon
completion of inspection, repairs, cleaning
or adjustments and before operation begins
or resumes.
SHIELDS AND LATCHES
FIG. 24: To operate the shield latches, twist the latch
handle (1) counter-clockwise and pull out on the shield.
The left-hand shield latch is located in the middle of the
lower section of the left-hand shield.
FIG. 25: The right-hand side of the combine has three
shields.
The front right-hand shield latch (1) is located in the
middle of the lower section of the right-hand shield (2).
The middle right-hand shield latch (3) is located in the
front section of the right-hand, middle shield (4).
FIG. 22
WC1950
FIG. 23
Wc1948
FIG. 24
1
P108333
FIG. 25
4
2
3
1
P107224
