Challenger 670B - Rear Axle

General Information
01-32 79032966 A Rev.
Rear Axle

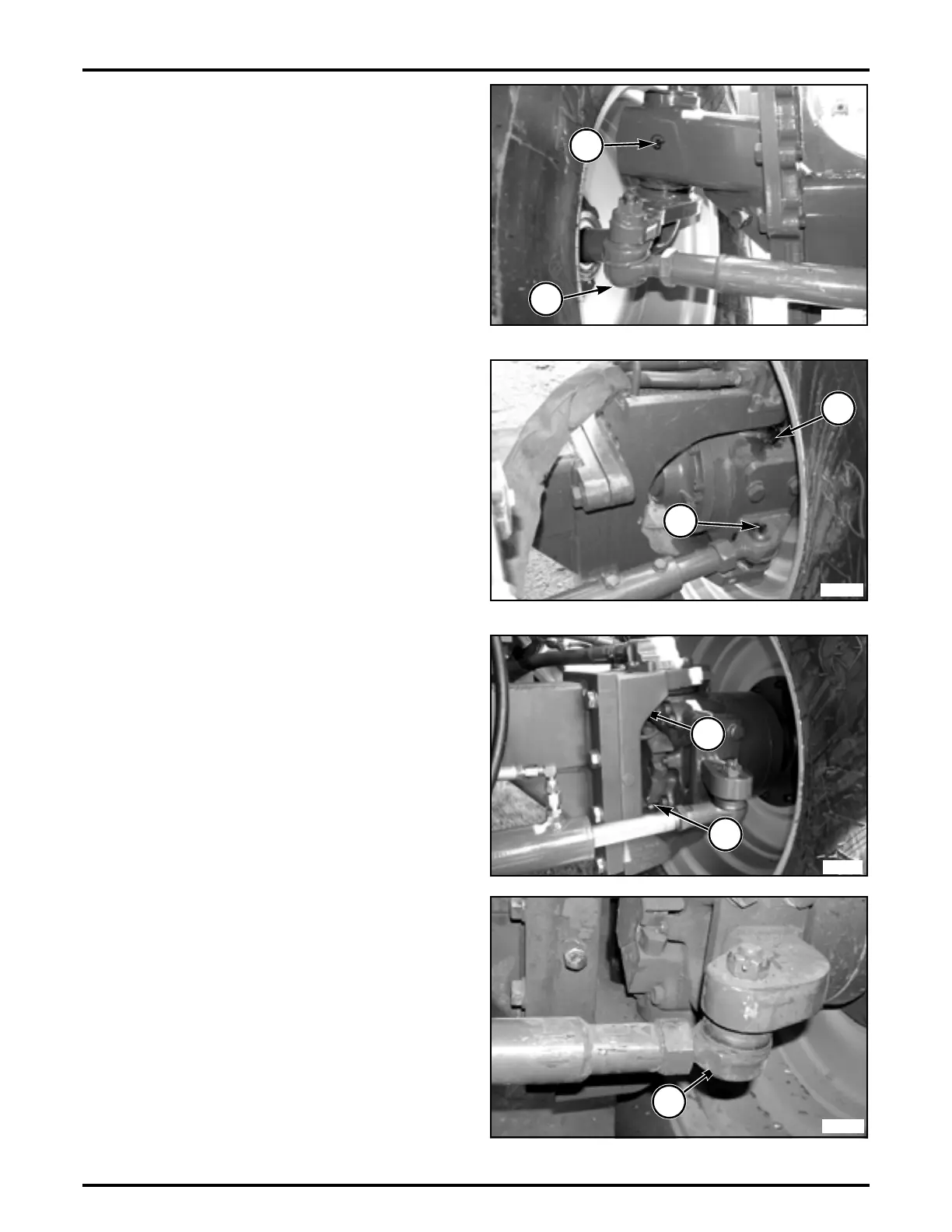

FIG. 63: Standard Adjustable Steering Axle
King Pins (1) two fittings, one each side (50 hours or
weekly).
Steering rod (2), two fittings, one each side (50 hours or
weekly).
FIG. 64: Single Speed Rear Wheel Assist Axle
King Pins (1) eight fittings, four each side (50 hours or
weekly).
Tie-rod Sockets (2) two fittings, one each side (50 hours
or weekly).
FIGS. 65–66: Two Speed Rear Wheel Assist Axle
King Pins (1) two fittings on each side, four fittings total
(50 hours or weekly).
Steering link (2) two fittings, one each side (50 hours or
weekly).
FIG. 63
1
2
N516606
FIG. 64
1
2
MA11961
FIG. 65
FIG. 66
L831054
1
1
M320637
2
