General Information

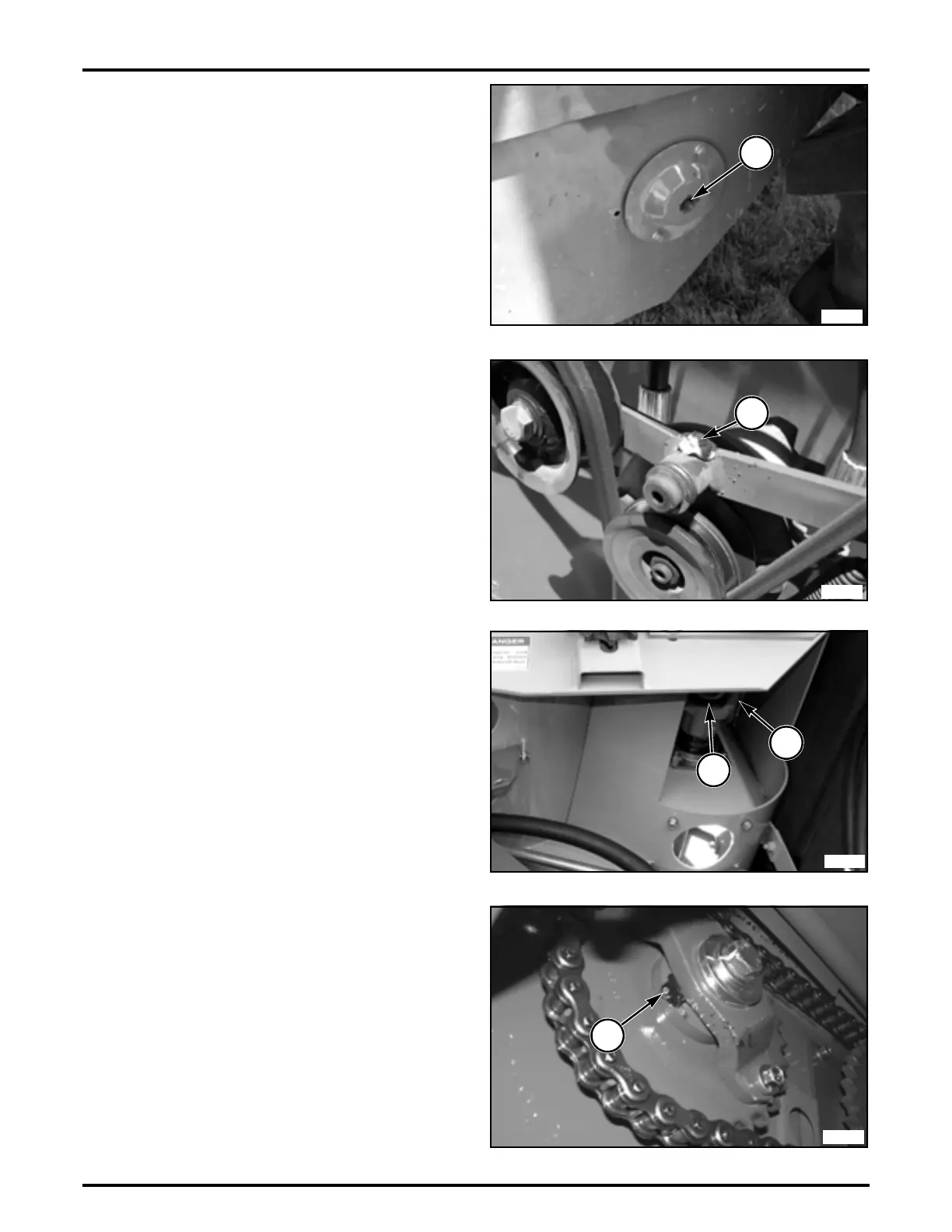

FIG. 59: On cleaning fan shaft.
Cleaning Fan Driven Pulley Inner Sliding Sheave Hub (1)
(10 hours or daily). Do not get grease on belt.
FIG. 60: Inside of rotary screen door.
Rotary screen drive idler pivot (1) (100 hours).
FIG. 61: Below right side of grain tank to the front.
Grain Tank unloader joint (1) (100 hours)
Cross auger shaft (2) (100 hours)
NOTE: If cross auger shear bolt fails, lubricate the cross
auger shaft after replacement of the shear bolt.
FIG. 62: Right side of grain tank on the angled auger
drive sprocket.
Sprocket bushing (1) (100 hours)
NOTE: If angled auger shear bolt fails, lubricate the
angled auger sprocket bushing after replacement
of the shear bolt.
FIG. 59
1
N722126
FIG. 60
1
N718776
FIG. 61
LA06566
1
2
FIG. 62
1
N417337
