79032966 A Rev. 01-33
General Information
AUTO LUBE

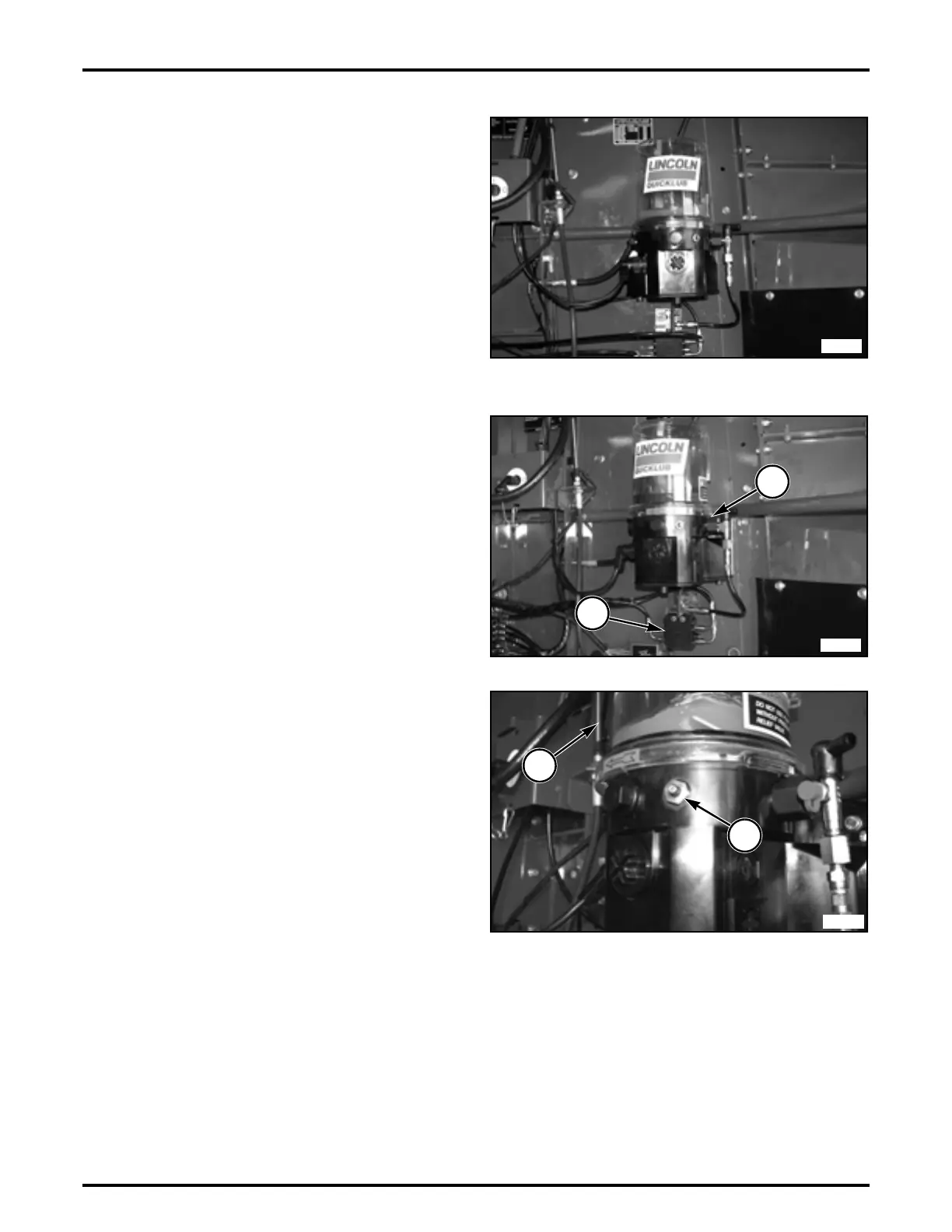

FIG. 67: The optional Auto Lube system lubricates
certain components automatically.
The following components are not lubricated
automatically:
• Variable speed drive (If equipped)
• Cleaning fan fitting
• Pitman arm fitting
• Inner and outer axle couplers
• Transmission linkages
• Clean grain elevator head
• Clean elevator torque limiter
• Return elevator drive slip clutch
FIG. 68: The auto lube system consists of a pump unit
(1), a primary distribution block (2), and multiple
secondary distribution blocks. The primary distribution
block is connected to each of the secondary distribution
blocks with separate lube lines.
The secondary distribution blocks are connected to each
component with lube lines and fittings. The number of
lube lines is dependant on the location of the distribution
block.
FIG. 69: The grease reservoir (1) is located above the
pump unit. When the pump unit is activated a stir paddle
inside the reservoir prevents air pockets from developing
in the grease and draws grease towards the pump unit.
Fill the auto lube reservoir periodically as needed with the
recommended grease.
Fill the reservoir using the grease fitting (2) located on the
pump unit and a hand operated grease pump.
FIG. 67
N524789
FIG. 68
1
N524812
2
FIG. 69
N524790
1
2
