Chamberlain 5100 Series User Manual

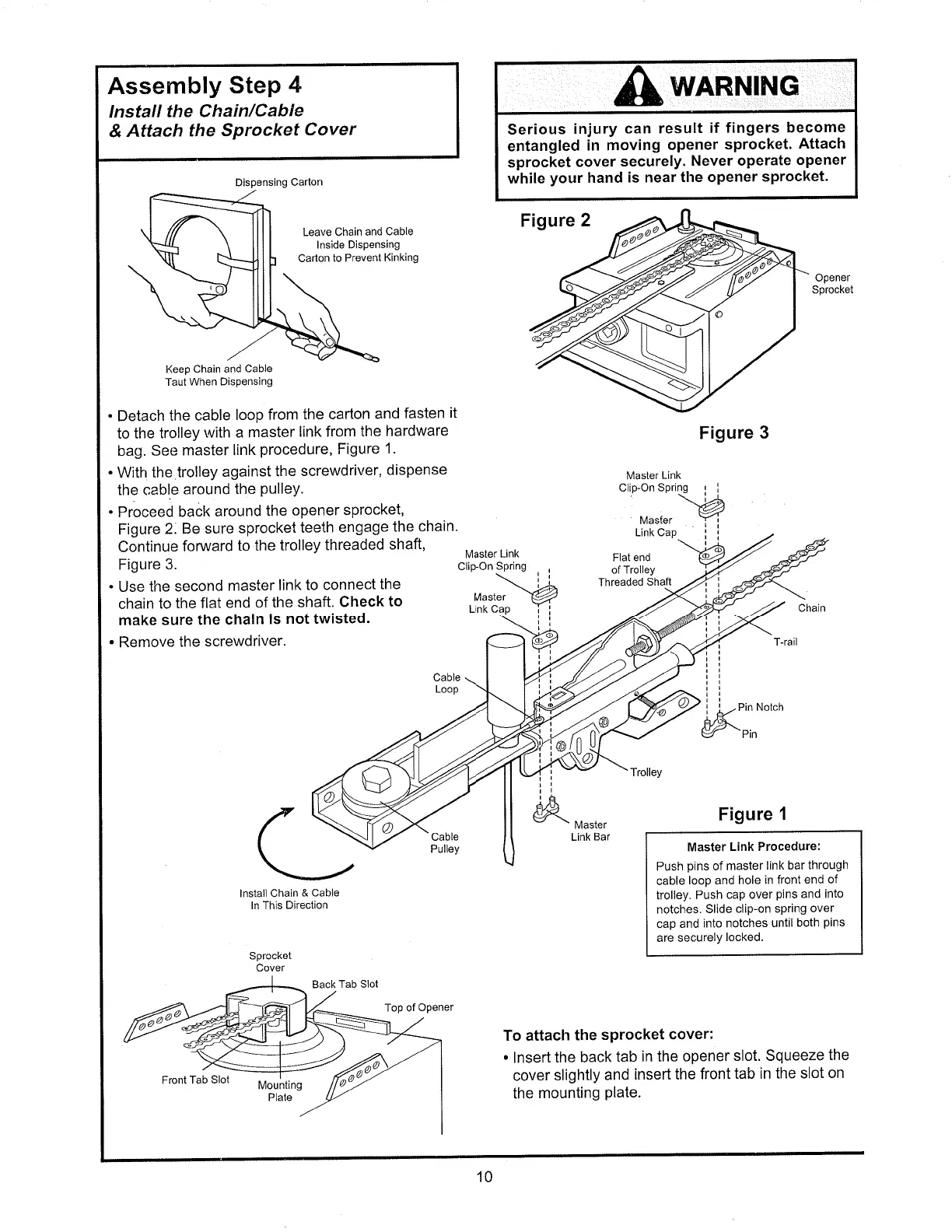

A,ssembly
Step
4
Install
the ChainlCable
&
Attach
the
Sprocket
Cover
Dispensing
Carlon
Leave
Chain and
Cable
lnside Dìspensing
Carton
to Prevent
Kinking
Keep
Chain and
Cable
Taut
When Dispensìng
.
Detach
the
cable
loop
from
the cadon
and
fasten
it
to
the trolley
tvith a master
link from
the
hardware
bag.
See master
link
procedure,
Figure
1.
.
With the
trolley
against
the
screwdriver,
dispense
the cable
around
the
PulleY.
.
Proceed
baók
around
the opener
sprocket,
Figure
2.
Be sure
sprocket
teeth
engage
the
chain.
Continue
forward
to the
trolley
threaded
shaft,
Figure
3.
.
Use
the second
master
link
to connect
the
chain
to
the flat
end
of the
shaft.
Check
to
make sure
the
chain
is
not twisted.
.
Remove
the
screwdriver.
Cable
Cable
Pulley
lnstalì
Chain
& Cable
ln This D¡rection
Sprocket
Cover
Back Tab SIot
Mounting
¡s,WARNING
Serious
injury
can result
if fingers
become
entangled
in
moving opener
sprocket'
Attach
sprocket
cover
securely.
Never operate
opener
while
your
hand
ís near
tlre opener
sprocket'
Figure
2
Opener
Sprocket
Figure
3
Master
Link
Loop
Itrlaster
Link
Cl¡p-On
Spr¡ng
Master
Link Cap
Flat end
of Trolley
Threaded
Shaft
Chain
T-rail
Trolley
Figure
1
Master
Link Procedure:
Push
pins
of
master
link bar
through
cable
loop and hole
¡n front
end of
trolìey.
Push
cap over
pins
and into
notches.
Slide
clip-on spring
over
cap and
into notches
until
both
pins
are securely
locked.
@_
Master
Link
Bar
To attach
the
sprocket
cover:
.
lnsert
the back
tab
in the opener
slot. Squeeze
the
cover
slightly
and
insert the
front
tab in
the slot
on
the
mounting
plate.
Front Tab Slot
Plate
Top of
Opener
10
Nortek, Exhibit 1012
