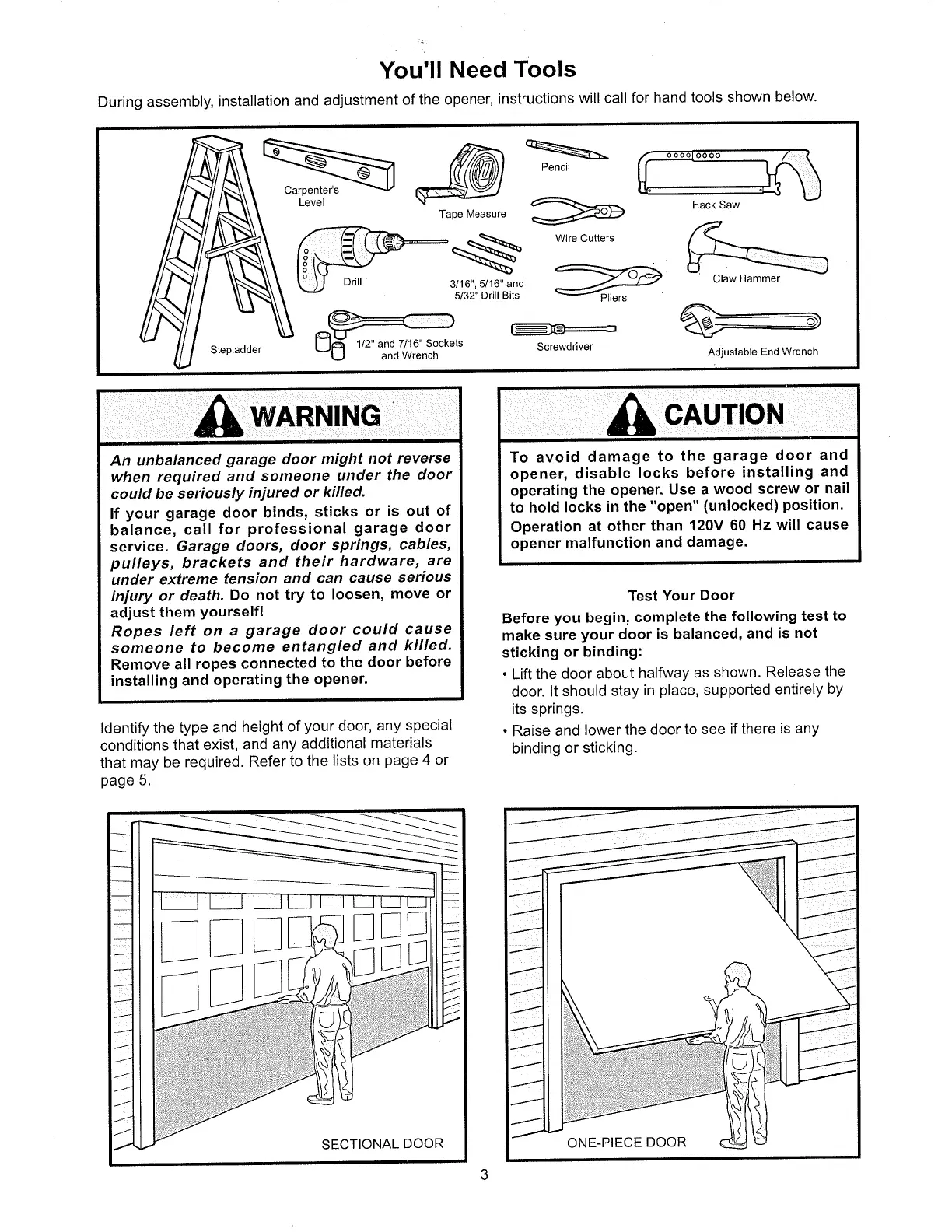

Chamberlain 5100 Series User Manual

You'll
Need
Tools
During assembly,
installation
and adjustment
of
the opener,
instructions
will call
for hand
tools
shown below.
H
Pencil
Carpenter's
Level
Hack Saw
Tape Measure
ñ
Wire Cutters
Drill
3/16",
5/16" and
5/32" Drill Bits
Claw
Hammer
PIìers
Stepladder
1/2" and
7/16" Sockets
and
Wrench
Screwdr¡ver
Adjustable
End
Wrench
AwnnuNc
An unbalanced
garage
door
might
not
reverse
when
required and
someone
under
the
door
could
be seriously
iniured
or
killed.
lf
your
garage
door
binds,
sticks
or
is out
of
balance,
call
for
professional
garage
door
service.
Garage
doors,
door
springs,
cables,
pulleys,
brackets
and
their
hardware,
are
under
extreme
tension
and
can
cause
serious
injury or
death.
Do not
try to
loosen,
move
or
adjust
them
yourself!
Ropes
left
on a
garage
door
could
cause
someone
to
become
entangled
and
killed.
Remove
all
ropes
connected
to
the door
before
installing
and
operating
the
opener.
ldentify
the type
and
height
of
your
door,
any
special
conditions
that exist,
and
any
additional
materials
that may
be
required.
Refer
to
the
lists on
page
4 or
page
5.
AcAunoN
To avoid
damage
to the
garage
door
and
opener,
disable
locks
before
installing
and
operating
the opener.
Use a
wood
screw
or nail
to
hold
locks
in the
"open" (unlocked)
position'
Operation
at other
than
120V 60
Hz
will cause
opener
malfunction
and damage'
Test Your
Door
Before
you
begin,
complete
the
following
test
to
make
sure
your
door
is balanced,
and
ís
not
sticking
or
binding:
.
Lift
the door
about
halfway
as shown'
Release
the
door.
li
should stay
in
place,
supported
entirely
by
its springs.
.
Raise
and
lower
the
door
to see
if there
is any
binding
or sticking.
U
SECTIONAL
DOOR
U
ONE-PIECE
DOOR
3
