23
Installation
STEP 12 Install the Protector System
®
(continued)

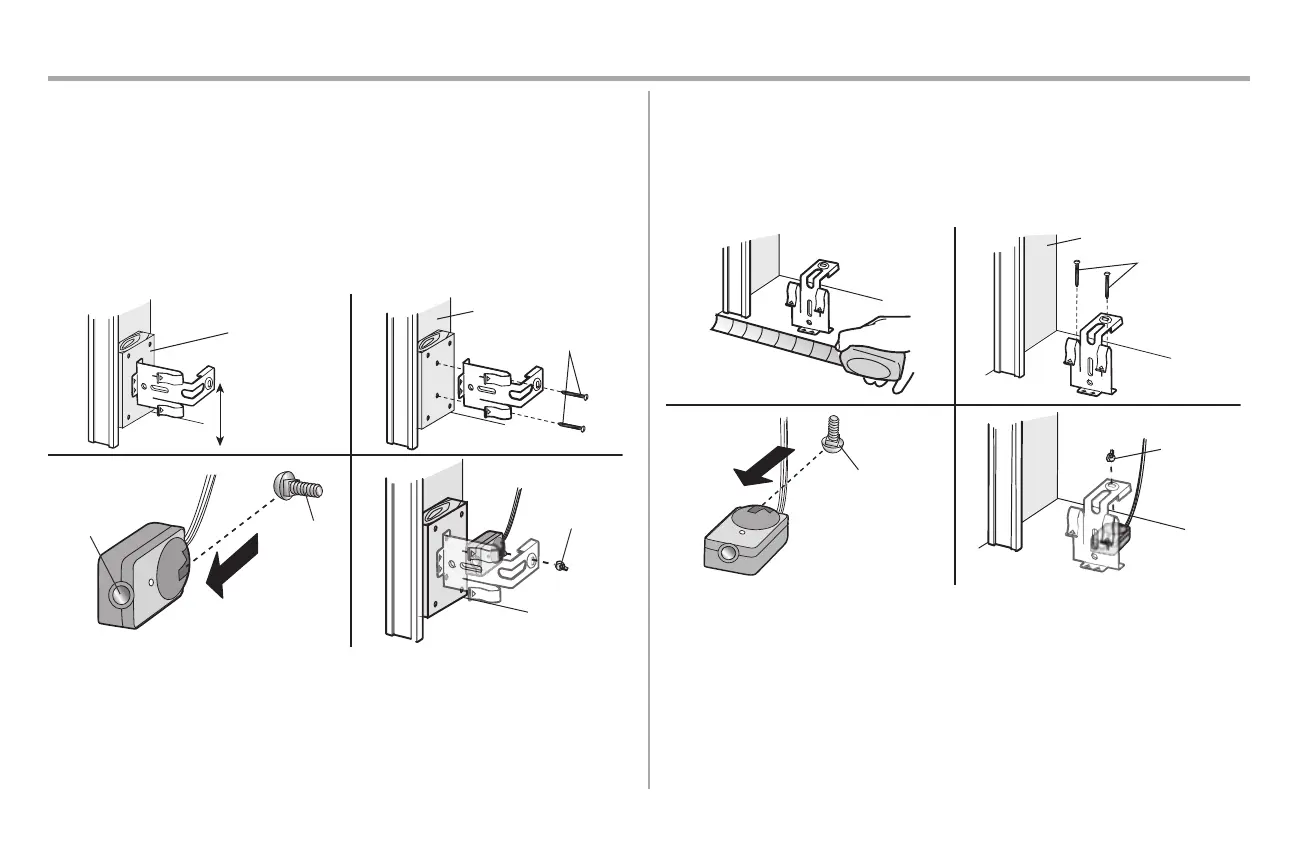

OPTION B - WALL INSTALLATION
If additional clearance is needed an extension bracket (not provided) or wood blocks can be used. Make sure each
bracket has the same amount of clearance so they will align correctly.
1. Position the sensor bracket against the wall with the curved arms facing the door. Make sure there is
enough clearance for the beam to be unobstructed. Mark holes.
2. Drill 3/16" pilot holes for each sensor bracket and attach the sensor brackets to the wall using lag screws
(not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses on both
sensors should point toward each other. Make sure the lens is not obstructed by the sensor bracket.
Lens
Carriage
Bolt
(Not provided)
No more than
6" (15 cm)
1 2
(Not provided)
Wing Nut
3 4
Inside Garage Wall
OPTION C - FLOOR INSTALLATION
Use an extension bracket (not provided) or wood block to raise the sensor bracket if needed.
1. Carefully measure the position of both sensor brackets so they will be the same distance from the wall and
unobstructed.
2. Attach the sensor brackets to the floor using concrete anchors (not provided).
3. Slide the carriage bolt into the slot on each sensor.
4. Insert the bolt through the hole in the sensor bracket and attach with the wing nut. The lenses on both
sensors should point toward each other. Make sure the lens is not obstructed by the sensor bracket.
(Not provided)
1 2
Carriage Bolt
Wing Nut
3 4
Inside Garage Wall
To Next Page
