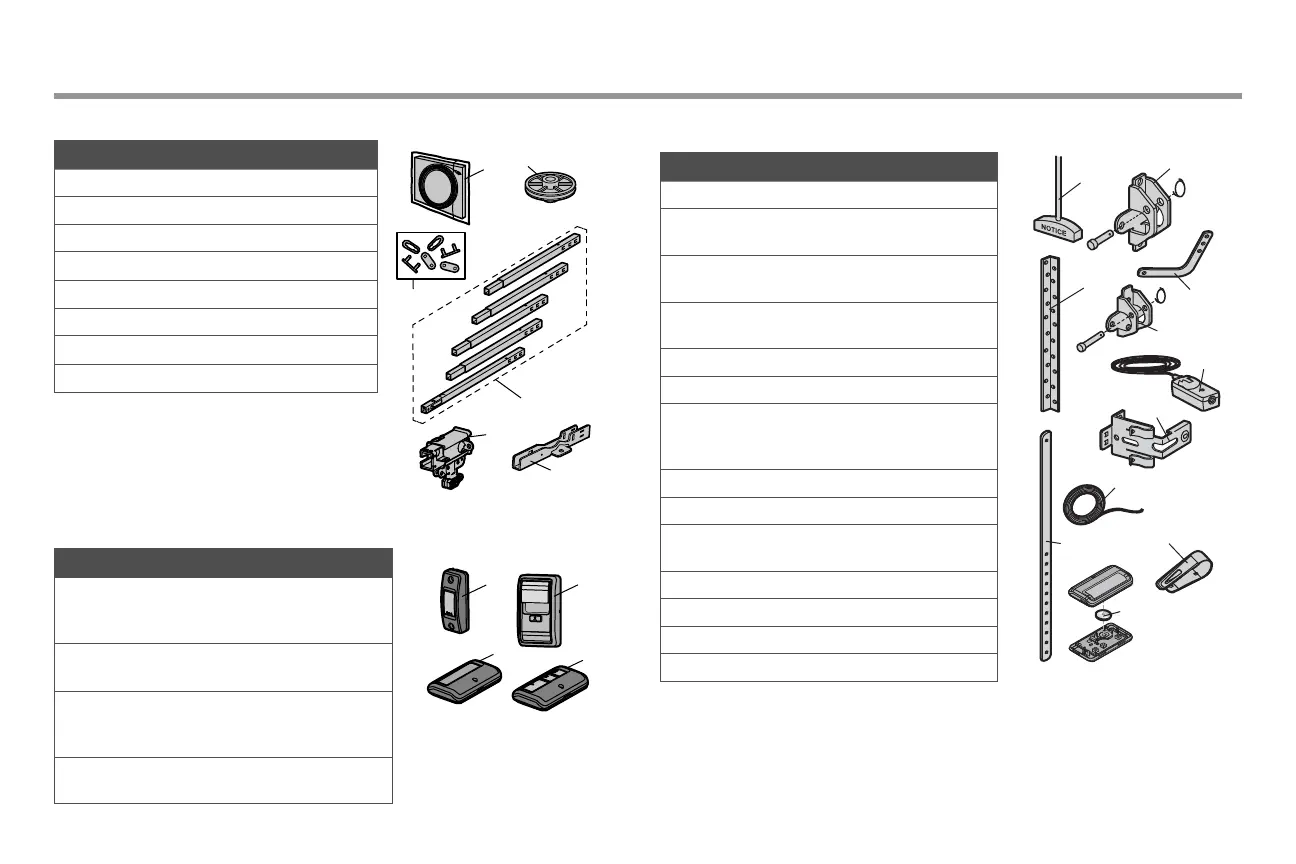

Repair Parts
Rail Assembly Parts
Accessories
3
2
4
6
5
1
Description Part Number
1 Chain and Cable 41A5807
2 Pulley 144C56
3 Master Link 4A1008
4 Rail 41A5665
5 Trolley Assembly 41C5141-1
6 “U” Bracket 12D598-1
Not Shown
Wear Pads 183A163
Description Part Number
1 Door Control
Models HD210C and
LW2200C
041A7367-3
2 Multi Function Door Control
Models PD510 and PD512
041A7185-1
3 Remote Control
Models HD210C, PD510,
and PD512
950ESTD
4 Remote Control
Model LW2200C
953ESTD
Installation Parts
1
3
4
2
5
6
7
8
9
10
11
Description Part Number
1 Curved Door Arm 178B35
2 Door Bracket with Clevis
Pin and Fastener
41A5047-1
3 Emergency Release Rope
and Handle
41A2828
4 Header Bracket with Clevis
Pin and Fastener
41A5047-2
5 Remote Control Visor Clip 29B137
6 Safety Sensor Bracket 41A5266-1
7 Safety Sensor Kit
Receiving and sending
sensors with wire
41A5034
8 Straight Door Arm 178B34
9 White and Red/White Wire 41B4494-1
10 3V CR2032 Lithium
Battery
10A20
11 Hanging Brackets 12B776
Not Shown
Hardware Bag 041A7920-1
Owner’s Manual 114A4850
