Chamberlain LiftMaster MJ5011U User Manual

13
Power
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC
LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN
R27
^
OPEN
^
CLOSE
O
STOP
AUX ANT
^^^^
AUX ANT
AUX ANT
D14
COM INTRLK STOP
LED
OPENCLOSE
TTC
LEARN
1
LMEP1 LMEP2
234567
STOP CLOSE OPEN

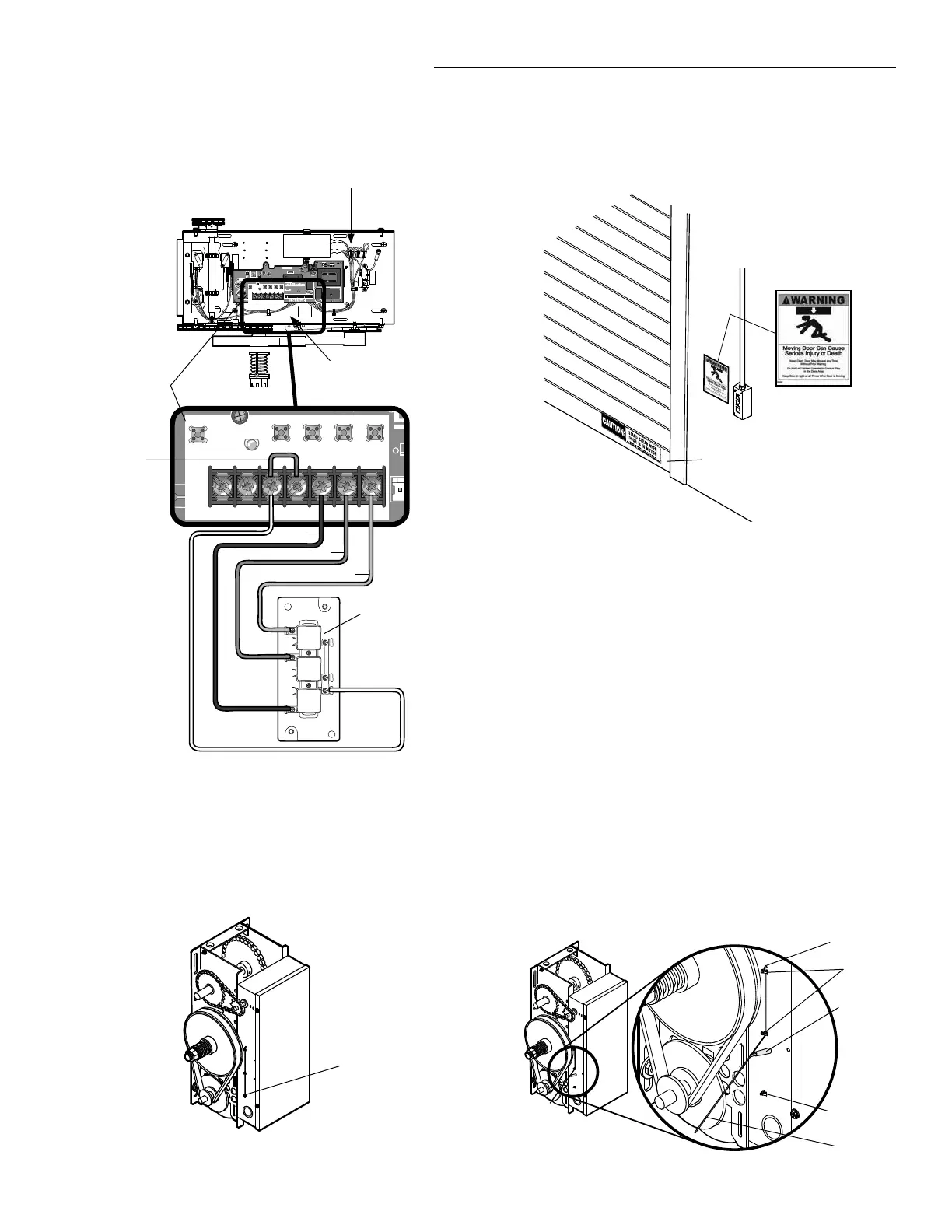

Logic Board
Remove factory
jumper if
external
interlock is
used.
3-Button Control
Station
Open
Close
Stop
Control
Common
Locate the wire antenna on the outside of the electrical
box. Cut the wire tie closest to the edge of the
electrical box.
Press the plastic standoff into the hole in the side of
the electrical box.
SETUP RADIO ANTENNA
OPTION A
Wire Ties
Antenna
Standoff
Antenna
Cut Wire Tie
1
Cut this Wire Tie
2
TYPICAL INSTALLATION
INSTALL 3-BUTTON CONTROL STATION
Fasten the entrapment warning placard next to the control
station.
Connect wires to the control station and replace the control
station cover.
4
5
UL
Entrapment
Placard
Warning Placard

Chamberlain LiftMaster MJ5011U Specifications

General

Type	Chain Drive
Horsepower	1/2 HP
Remote Control	Yes
Voltage	120V
Motor Type	AC
Security+ 2.0	Yes
Battery Backup	No
Drive Type	Chain Drive
Lighting	100-watt (max) light
