Chamberlain LiftMaster Security+ 2500D - Motor Unit Parts Identification; Motor Unit Component Breakdown

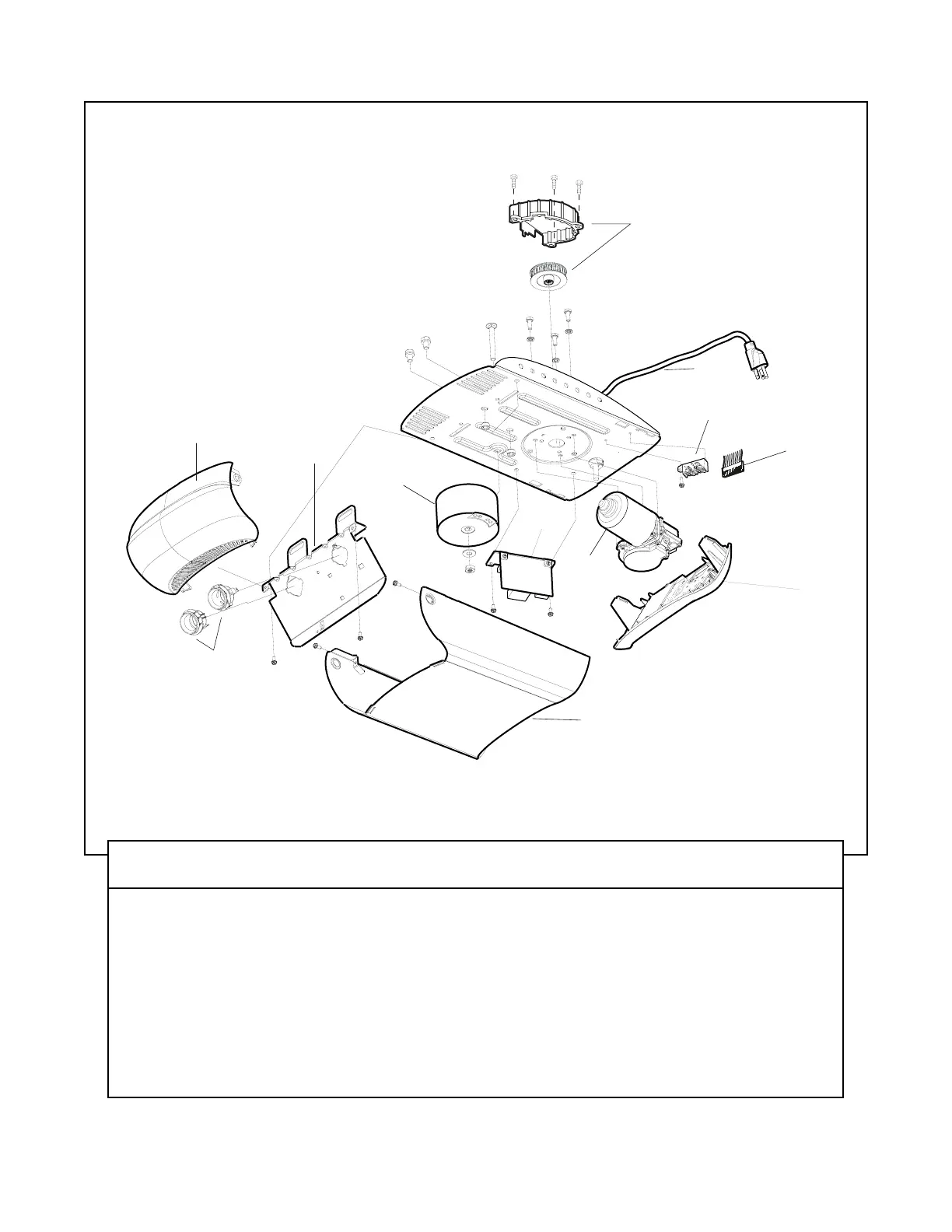

Motor Unit Assembly Parts
34
2
3
4
5
6
7
8
9
10
11
12
1
KEY PART
NO. NO. DESCRIPTION
1 41C76 Belt cap and sprocket
2 41B4245-1 Line cord
3 41B4375-3 Terminal block w/screws
4 41C5317-1 Wire harness (logic)
41C5839 High voltage wire harness
41B5806-1 DC motor wire harness
41C5418 Light socket wire harness
5 41D605-1 Motor 80kg/100kg
KEY PART
NO. NO. DESCRIPTION
6 41A5507-6 Receiver logic board assembly
with end panel
41D182-1 End panel only
7 41B5351-7 Power supply
8 41C168 Transformer and harness
9 41D630-2 Bracket: light socket, limit switch
10 41A5490-10 Cover
11 175C147 Light socket
12 108D78 Light lens
