16
TIMER TO CLOSE ENABLE
This switch enables the auto close timer. The timer to close
feature works in conjunction with the potentiometer located on
the board.
SLIDE/SWING
This switch selects slide or swing gate operation, in order to
optimize gate behavior for specific application.
SL = Slide • SW = Swing
RIGHT/LEFT OPERATION
This switch selects the gate opening direction, to the left or to
the right. Right/Left operation is determined from the inside of
fence looking out.
“SAVE” SWITCH
This switch stores all settings into memory and locks out changes.
NOTE: For any programming changes to take effect this switch
must be in OFF position. When switch is ON, no settings can be
changed.
RIGHT HAND
LEFT HAND
(Factory Default)
1 2 3 4
ON
SAVE
TTC
ON
S1
1 2 3 4
ON
SAVE
TTC
ON
S1
RT LT
SW SL
RT LT
SW SL
RT LT
SW SL
1 2 3 4
ON
SAVE
TTC
ON
S1
LOCKED UNLOCKED
1 2 3 4
ON
SAVE
TTC
ON
S1
(Factory Default)
RT LT
SW SL
APEMs
TIMER TO CLOSE
ENABLED
TIMER TO CLOSE
DISABLED
1 2 3 4
ON
SAVE
TTC
ON
S1
1 2 3 4
ON
SAVE
TTC
ON
S1
RT LT
SW SL
RT LT
SW SL
(Factory Default)
(Factory Default)
SWING GATE SLIDE GATE
1 2 3 4
ON
SAVE
TTC
ON
S1
1 2 3 4
ON
SAVE
TTC
ON
S1
RT LT
SW SL
RT LT
SW SL

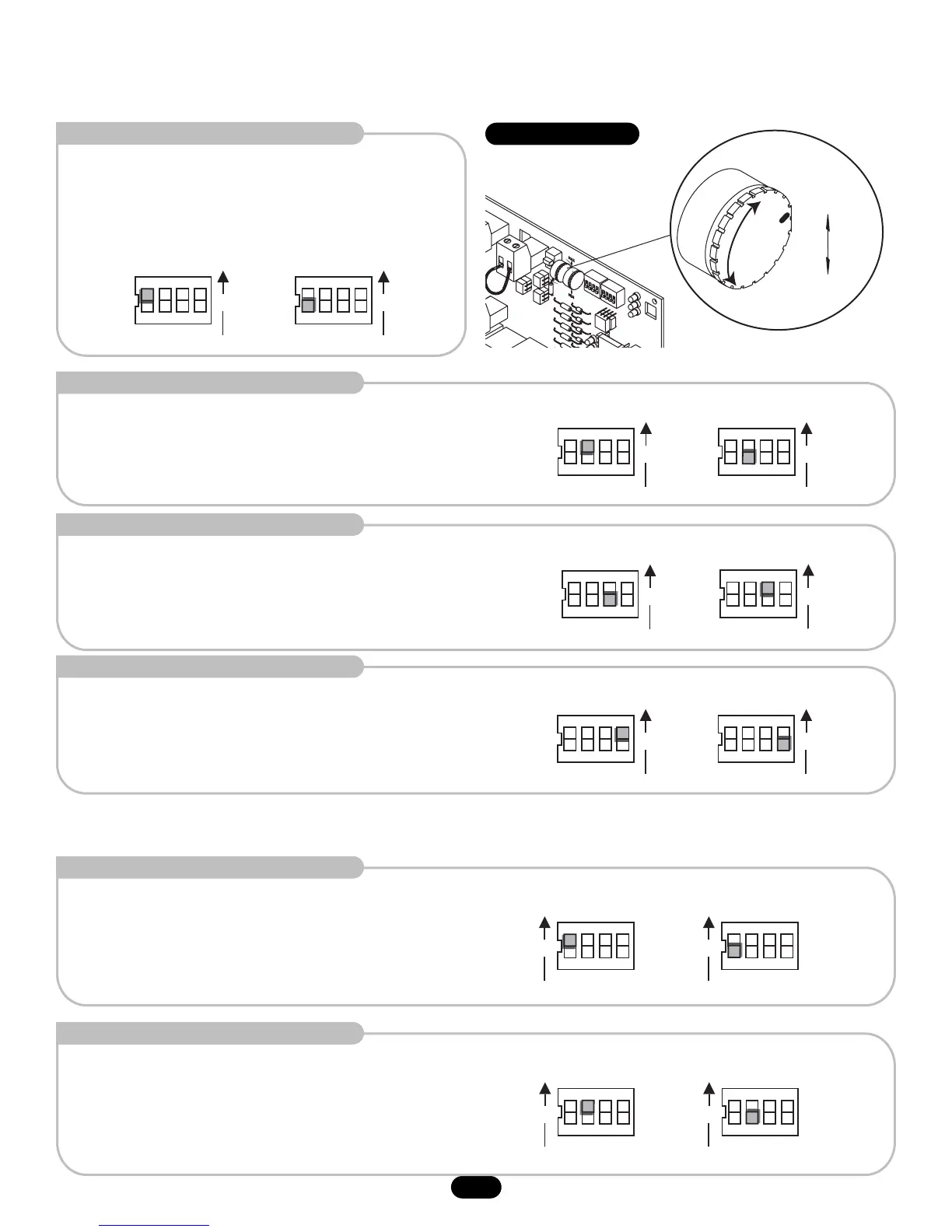

ΠΡΟΓΡΑΜ ΣΕΤΤΙΝΓΣ (∆ΙΠ ΣΩΙΤΧΗ Σ1)
NOTE: For all S1, S2 and S4 switch settings to take effect, the Save Mode switch must be set to the off position.
ΠΡΟΓΡΑΜ ΣΕΤΤΙΝΓΣ (∆ΙΠ ΣΩΙΤΧΗ Σ2)
MAGLOCK ENABLE
This switch enables the Maglock feature. On an open command
there will be a half second delay after the maglock relay is
released before the motor starts.
WARNING ENABLE
This switch enables the gate “in motion” alarm feature. The
alarm will beep 3 seconds prior to movement and throughout
movement.
(Factory Default)
MAGLOCK ENABLED MAGLOCK DISABLED
ON
CLED PH
OPED PH
1 2 3 4
WARN
MAG
ON
S2
ON
CLED PH
OPED PH
1 2 3 4
WARN
MAG
ON
S2
(Factory Default)
WARNING ENABLED WARNING DISABLED
ON
CLED PH
OPED PH
1 2 3 4
WARN
MAG
ON
S2
ON
CLED PH
OPED PH
1 2 3 4
WARN
MAG
ON
S2
Max = 180 sec
Min = 0 sec
