Chamberlain SL585 - GATE MOUNTING & INSTALLATION PROCEDURES

9
ΙΝΣΤΑΛΛΑΤΙΟΝ
21-1/8" (53.7 cm)
4" (10.2 cm)
7"
(17.8 cm)
36" (91.4 cm)
18" (45.7 cm)
Fence Line
1" (2.5 cm)
Rear of Gate
or Back Frame
Concrete
Anchor Holes
10-7/8"
(27.6 cm)
Depth Required By
Local Codes or
Below Frost Line
2" to 4"
(5.1 to 10.2 cm)
Above Grade
Concrete Pad
Power and Control
Wiring Should Be
Run In Separate Conduit
Drive and Idler
SprocketToward
Gate Side
Using Suitable Hardware
To Secure Operator To
Concrete Anchors
1/2" (12.7 mm)
Concrete Anchors
(4 Required)

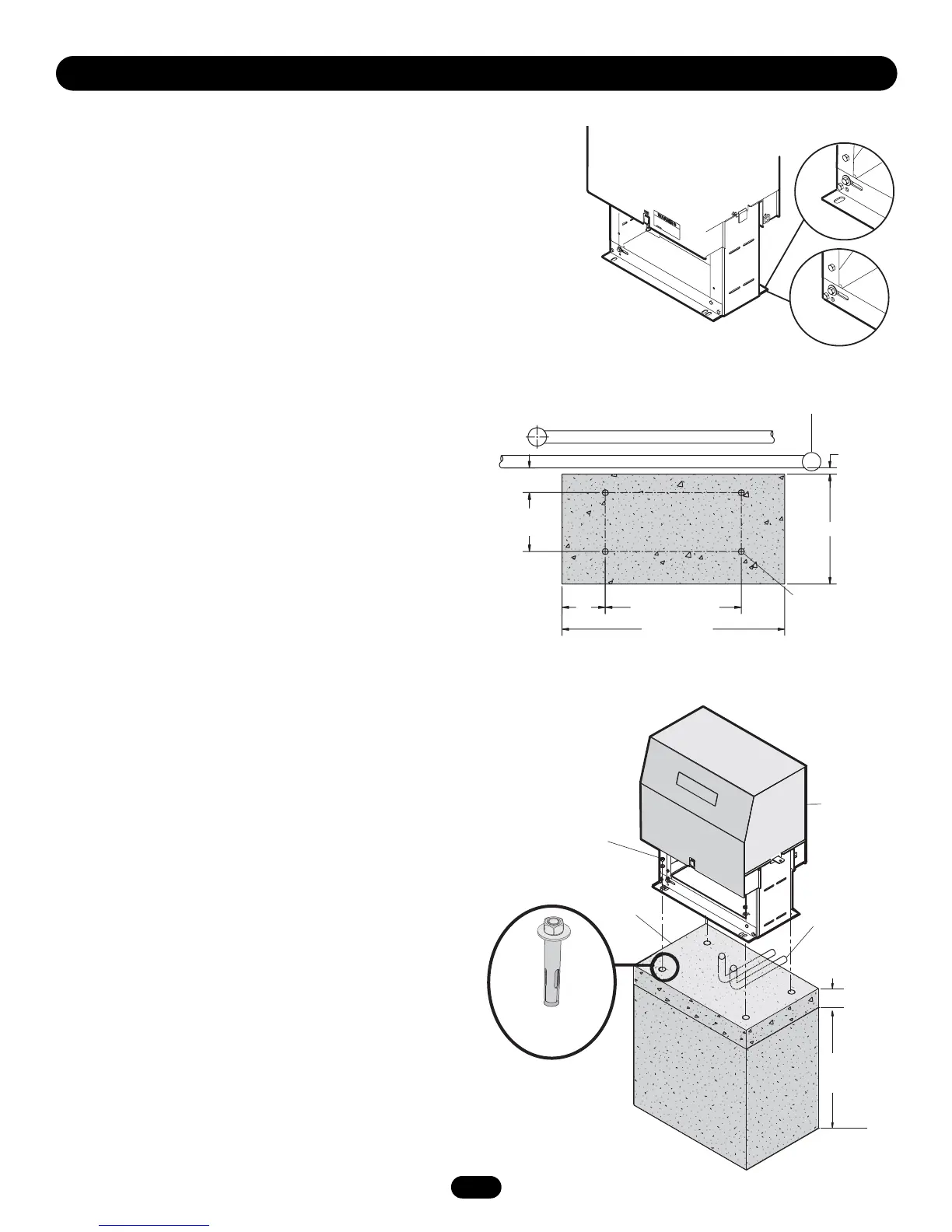

Figure 3
ΠΑ∆ ΜΟΥΝΤΙΝΓ (ΣΛ585 ΟΝΛΨ)
RETRO-FIT INSTALLATION
The operator is shipped from the factory with the lower mounting
angles configured out (Figure 1). If you have pad constrictions,
either angle can be unbolted and reversed to ‘angle in’.
NOTE: If you are replacing an SL580 and wish to use the same
pad mounting hardware, the gate side mounting angle must be
installed angle in.
NEW INSTALLATION
CONCRETE PAD PREPARATION:
1. Lay out concrete pad. (Figure 2).
2. Locate electrical conduit, as required, prior to pouring
concrete.
3. Pour concrete pad.
4. Secure operator (Figure 3) to the concrete pad using four 1/2"
(1.3 cm) concrete anchors (not provided).
Angle Out
Angle In
Figure 1
Figure 2
