Installation (continued)
ARM SWINGAWAY SETUP (OPTIONAL)
When using the Arm Swingaway System, the barrier arm swingaway direction can be set up for outward or inward
swingaway.
NOTE: The Arm Swingaway setup barrier arm can pivot and only swingaway in one direction (outward or inward) at a
time, based on the installed option.

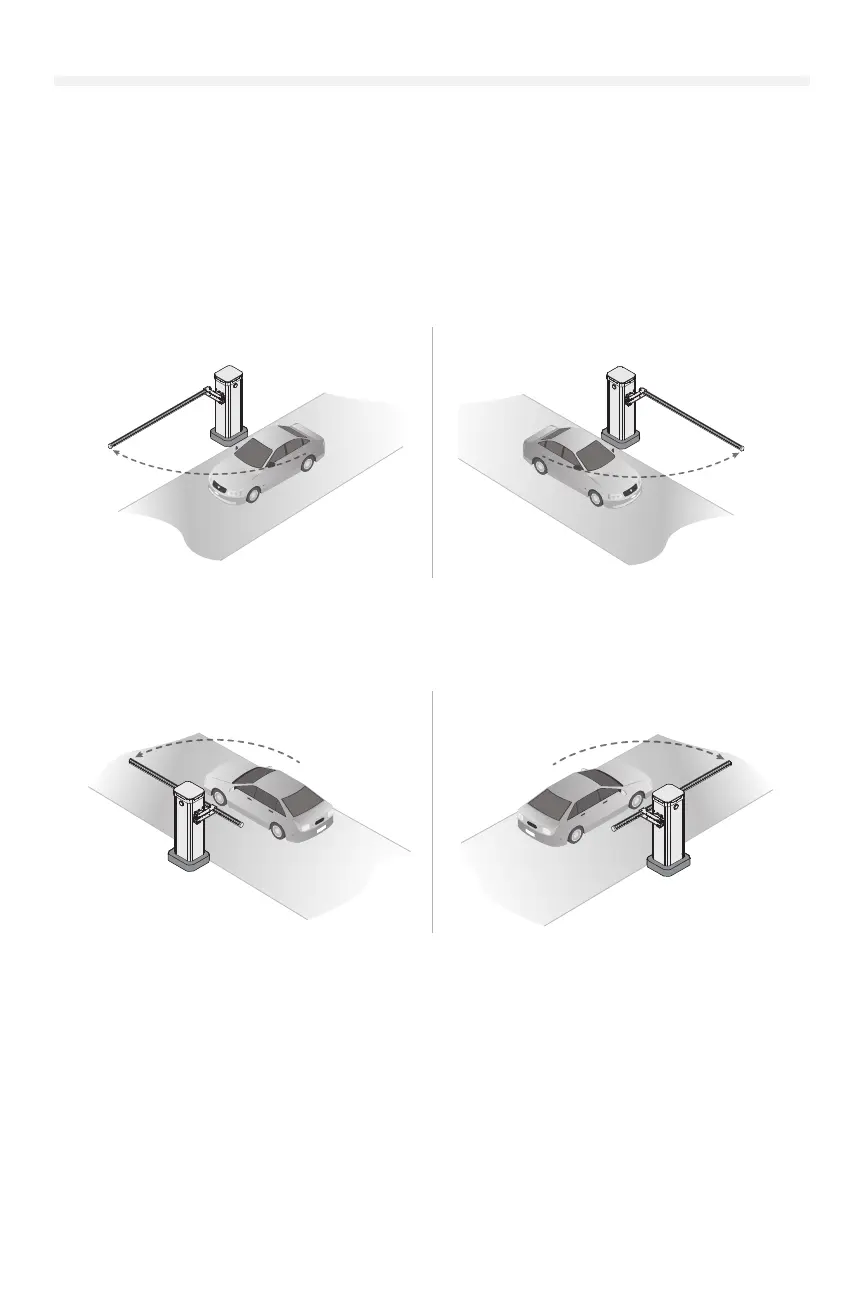

Arm Setup with Outward Swingaway
The arm can be installed on the arm bracket to pivot and swingaway outwards away from the operator.
Left Handed Outward Swingaway Right Handed Outward Swingaway
Arm Setup with Inward Swingaway
The arm can be installed on the arm bracket to pivot and swingaway inwards towards the operator.
Left Handed Inward Swingaway Right Handed Inward Swingaway
